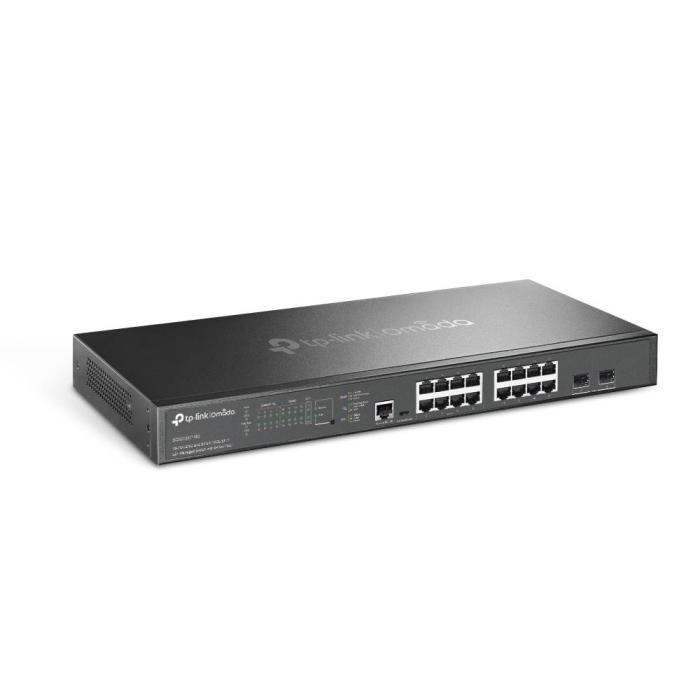

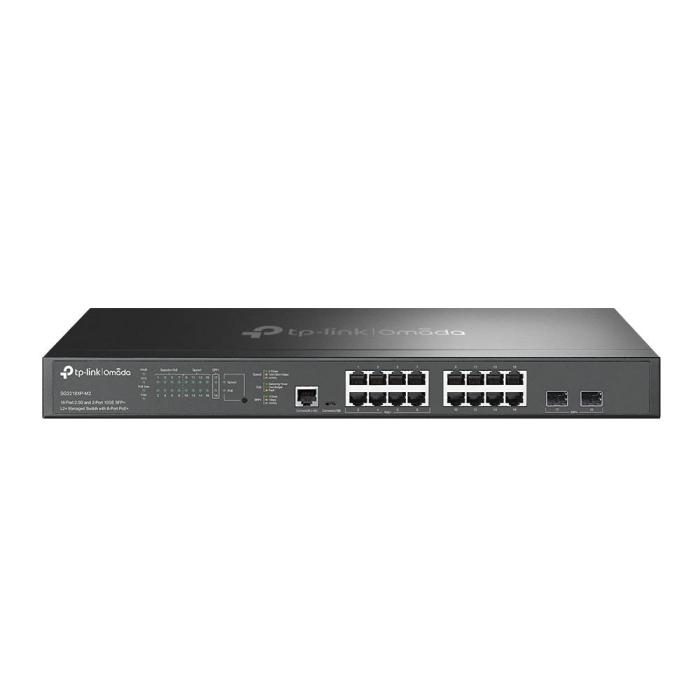

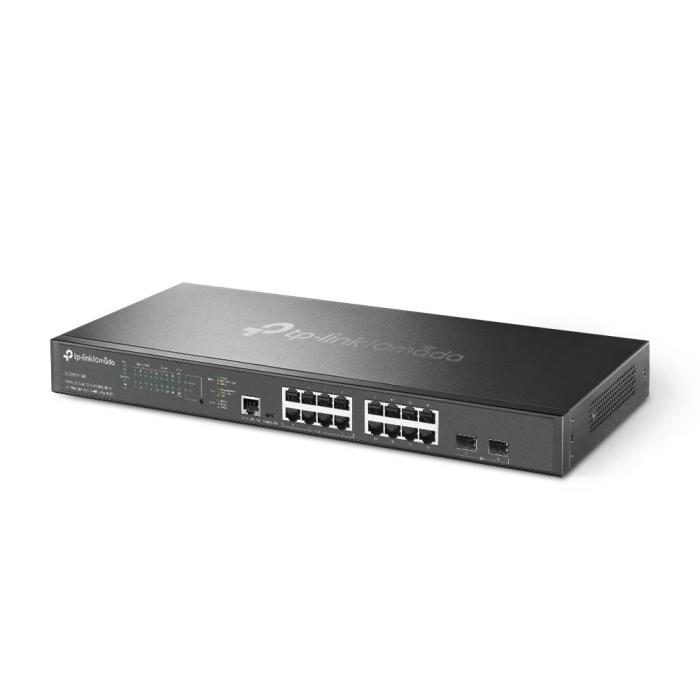

Name: TP-Link Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
Brand: TP-LINK
Price: 537.03 USD
Availability: InStock

TP-Link Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

$537.03

$537.03 without VAT

TP-Link Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+. More info

Amount

Brand: TP-LINK

SKU: 104868 PRC: 510435 EAN: 4897098689721 PN: SG3218XP-M2

Description

16x 2.5 Gbps RJ45, 2x 10G SFP+ Slots, 120 Gbps, 89.28 Mpps, 16 K MAC, 9 KB Jumbo, 440 x 180 x 44 mm

Specifications

Management features

Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
MIB support: MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMO

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity: 2
Console port: RJ-45/Micro-USB
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
10G support: Yes
Port mirroring: Yes
IP routing: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Ethernet LAN data rates: 100,1000,2500 Mbit/s
VLAN support: Yes
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

Switching capacity: 120 Gbit/s
Forwarding rate: 89.28 Mpps
MAC address table: 16000 entries
Static route: Yes
Number of static routes: 48
Number of IP interfaces: 32
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 12 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering: Yes
Static port security: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Authentication: MAC-based authentication, Port-based authentication
Password protection: Yes
Authentication type: AAA, TACACS+
Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Yes

Protocols

Management protocols: SNMP v1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP): Yes

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)

Power

Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 299.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 240 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 1021.64 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 180 mm
Height: 44 mm

Packaging content

Cables included: AC
Quick start guide: Yes

Packaging data

Package type: Box

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: Federal Communications Commission (FCC), RoHS
Certification: CE, FCC, RoHS
