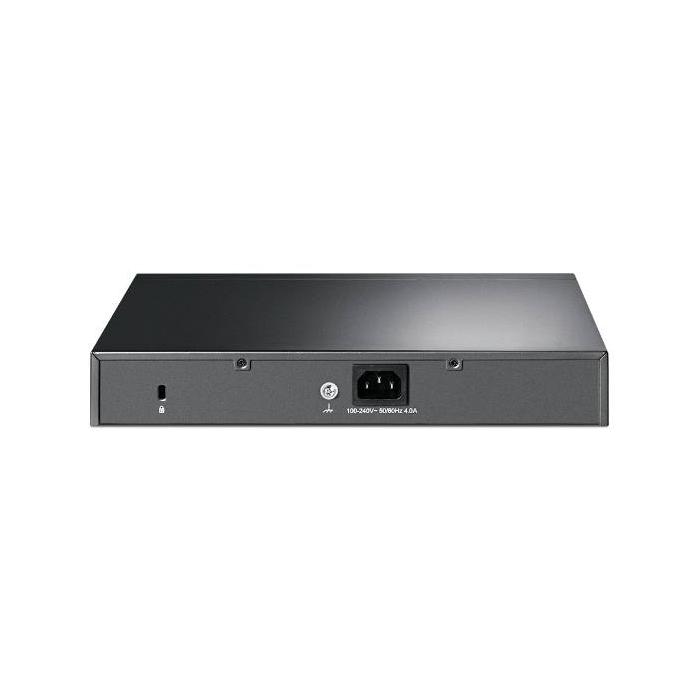

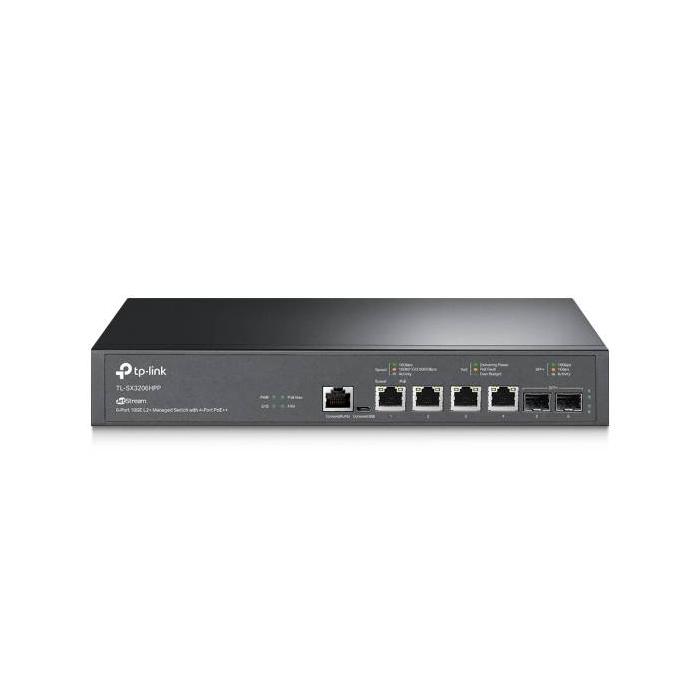

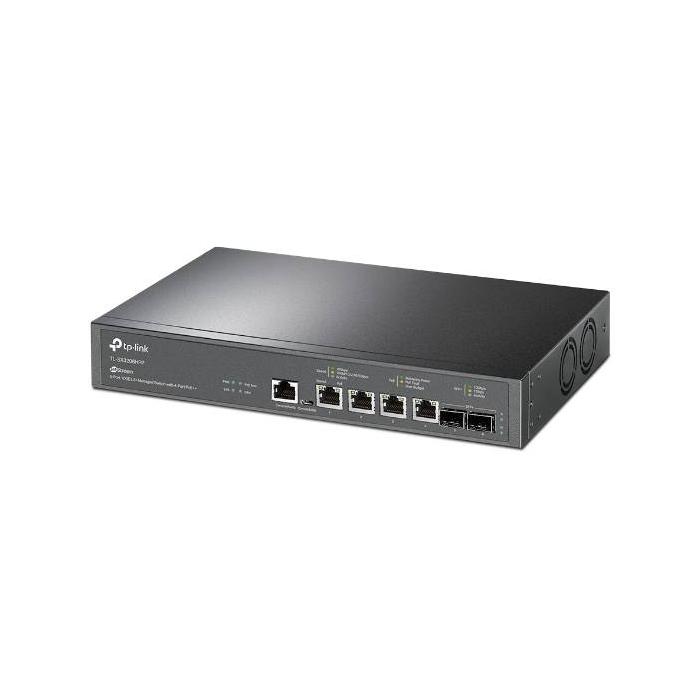

Name: TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
Brand: TP-LINK
Price: 537.03 USD
Availability: InStock

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

$537.03

$537.03 without VAT

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++. More info

Amount

Brand: TP-LINK

SKU: 96556 PRC: 396740 EAN: 840030702570 PN: TL-SX3206HPP

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
MIB support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP+ module slots quantity: 2
Console port: RJ-45/Micro-USB
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 80
10G support: Yes
Port mirroring: Yes
IP routing: Yes
Routing entries: 512
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 120 Gbit/s
Forwarding rate: 89.28 Mpps
MAC address table: 32000 entries
Static route: Yes
Number of static routes: 48
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 16 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: HTTPS, SSL/TLS
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
Authentication: Guest VLAN
Authentication type: AAA, RADIUS, TACACS+

Multicast features

Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: MLD v1/v2

Protocols

Management protocols: SNMP v1/v2c/v3

Design

Rack mounting: Yes
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)

Performance

Minimum system requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.

Power

Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 244.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 60 W
Total Power over Ethernet (PoE) budget: 200 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 835.67 BTU/h

Weight & dimensions

Width: 294 mm
Depth: 180 mm
Height: 44 mm

Packaging content

Cables included: AC
Quick start guide: Yes
Rack mount kit: Yes

Certificates

Certification: CE, FCC, RoHS
