Description

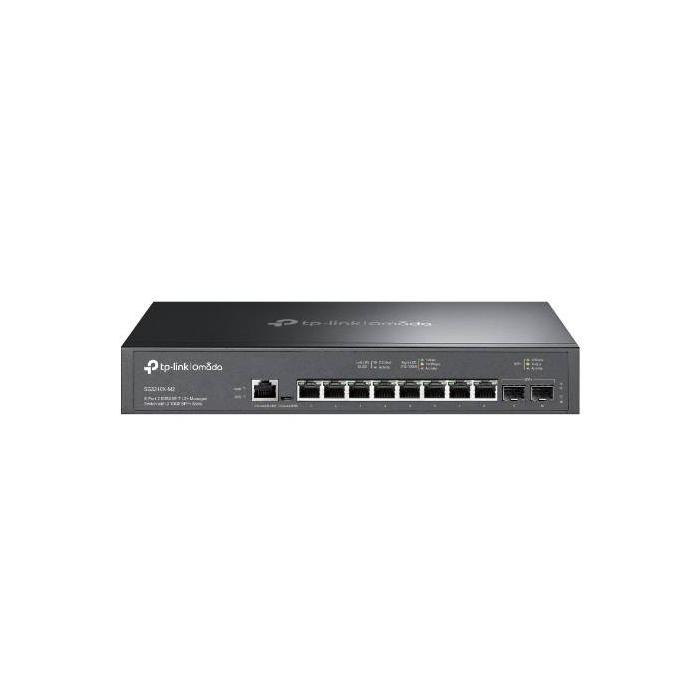

8-port 2.5G L2+ managed switch TP-Link Omada SG3210X-M2 in 1U form factor and black colour, equipped with 8 RJ-45 2.5G Ethernet ports (100/1000/2500), 2 SFP+ slots for 10G uplinks and RJ-45 or micro-USB console port. Its web-based and cloud management is complemented by command-line interface (CLI) support, ARP inspection, traffic classification and system event logging. It includes quality of service (QoS), storm control and support for up to 4000 VLANs, allowing efficient network segmentation. Connect the AC-in power connector to integrate this switch into professional environments requiring advanced management and centralised monitoring.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2+
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
- Traffic classification: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
- System event log: Yes
- MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- 2.5G Ethernet (copper) ports quantity: 8
- SFP+ module slots quantity: 2
- Console port: RJ-45/micro-USB
- Power connector: AC-in jack
Network
- Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
- 10G support: Yes
- Port mirroring: Yes
- IP routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- Ethernet LAN data rates: 100,1000,2500 Mbit/s
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 4000
Data transmission
- Switching capacity: 80 Gbit/s
- Forwarding rate: 59.52 Mpps
- MAC address table: 16000 entries
- Static route: Yes
- Number of static routes: 48
- Number of IP interfaces: 16
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 12 MB
Security
- DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: HTTPS, SSH, SSH-2, SSL/TLS
- MAC address filtering: Yes
- Static port security: Yes
- SSH/SSL support: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- IP-MAC-Port binding: Yes
- Authentication: MAC-based authentication, Port-based authentication
- Password protection: Yes
- Authentication type: AAA, TACACS+
- Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
- Multicast support: Yes
- Multicast Listener Discovery (MLD) snooping: Yes
Protocols
- Management protocols: SNMPv1/v2c/v3, SNTP
- GARP VLAN Registration Protocol (GVRP): Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Yes
- Number of fans: 2 fan(s)
Performance
- Fanless: Yes
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (typical): 15 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 51.18 BTU/h
Weight & dimensions
- Width: 294 mm
- Depth: 180 mm
- Height: 44 mm
Packaging content
- Cables included: AC
- Quick start guide: Yes
Packaging data
- Package type: Box
- Package width: 528 mm
- Package depth: 250 mm
- Package height: 80 mm
- Package weight: 2.84 kg
Certificates
- Certification: CE, FCC, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
