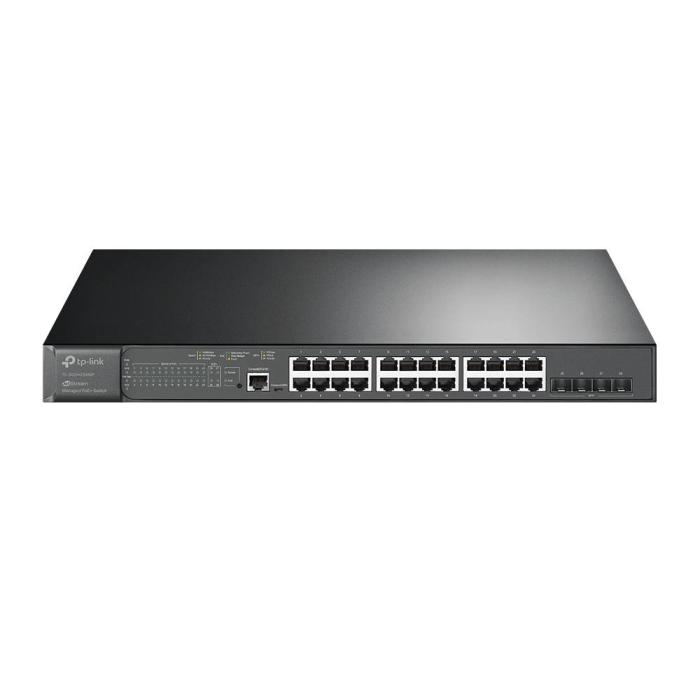

Name: TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
Brand: TP-LINK
Price: 458 USD
Availability: InStock

TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

$458.00

$458.00 without VAT

TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+. More info

Amount

Brand: TP-LINK

SKU: 87408 PRC: 312658 EAN: 6935364030780 PN: TL-SG3428XMP

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
System event log: Yes
MIB support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP+ module slots quantity: 4
Console port: RJ-45/Micro-USB
Power connector: AC-in jack

Network

Networking standards: IEEE 802.11d, IEEE 802.1s, IEEE 802.1w
10G support: Yes
Port mirroring: Yes
Policy-based routing: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Active link detection: Yes
VLAN support: Yes
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 128 Gbit/s
Forwarding rate: 95.23 Mpps
MAC address table: 16000 entries
Number of static routes: 48
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 12 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes

Multicast features

Multicast support: Yes

Protocols

Management protocols: SNMPv1/v2c/v3, SNTP

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)

Power

Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 455.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 384 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 1554.39 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44 mm

Packaging content

Cables included: LAN (RJ-45)
Quick start guide: Yes

Packaging data

Package width: 440 mm
Package depth: 528 mm
Package height: 100 mm
Package weight: 6.17 kg

Logistics data

Harmonized System (HS) code: 85176990
