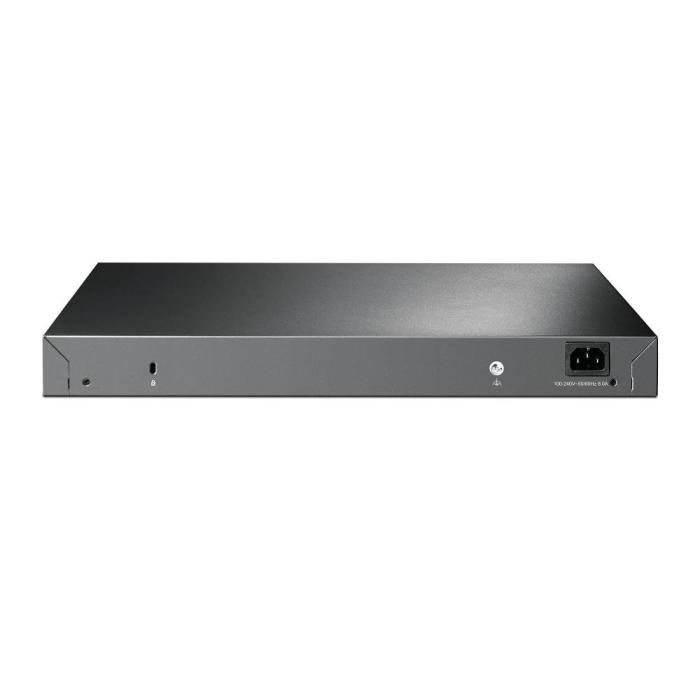

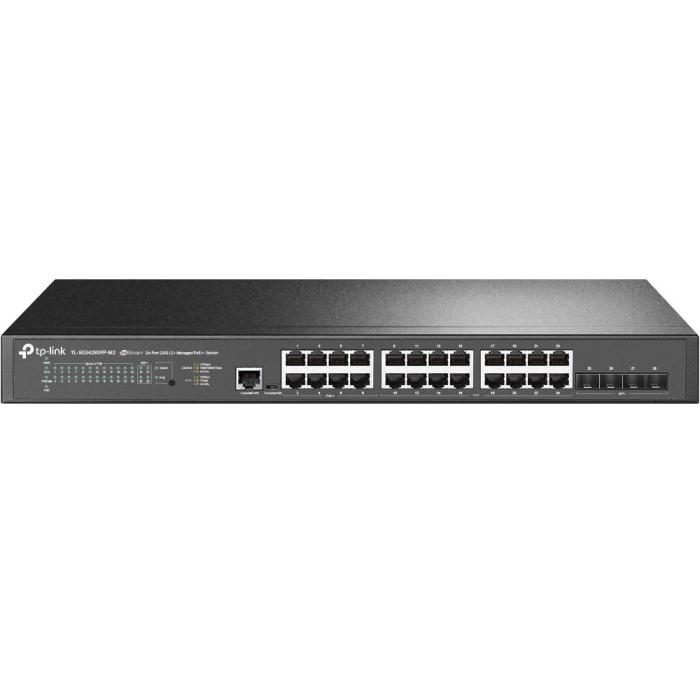

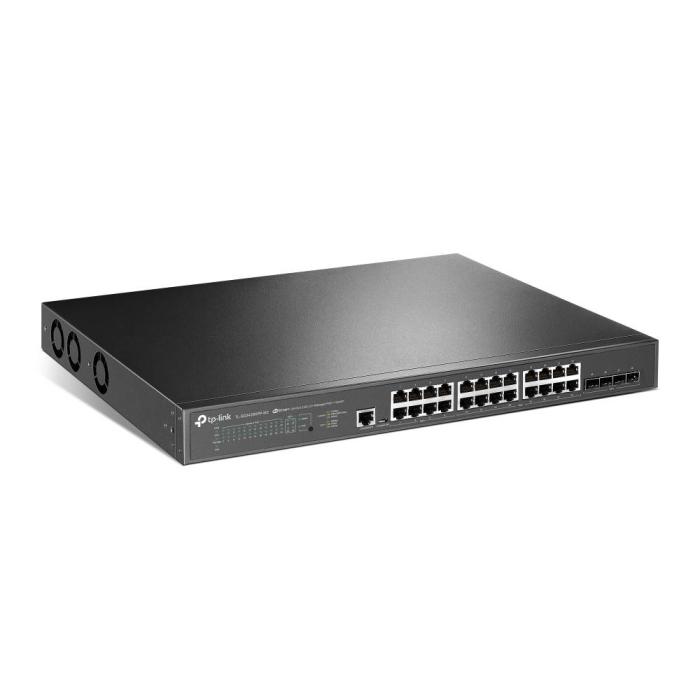

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

$846.49
$846.49 without VAT

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++.   More info

Brand: TP-LINK
SKU: 102622 PRC: 460743 EAN: 4897098689738 PN: TL-SG3428XPP-M2

Description

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2+
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
  • 2.5G Ethernet (copper) ports quantity: 24
  • SFP+ module slots quantity: 4
  • Console port: RJ-45/Micro-USB

Network

  • Spanning tree protocol: Yes
  • Head-of-line (HOL) blocking: Yes
  • Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s
  • IPv4 routes: 48
  • IPv6 routes: 48
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3
  • 10G support: Yes
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes

Data transmission

  • Switching capacity: 200 Gbit/s
  • Forwarding rate: 148.8 Mpps
  • MAC address table: 32000 entries
  • Store-and-forward: Yes
  • Number of queues: 8
  • Static route: Yes
  • Number of static routes: 48
  • Number of IP interfaces: 32
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 16 MB

Security

  • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Security algorithms: HTTPS, SSH, SSH-2, SSL/TLS
  • Static port security: Yes
  • SSH/SSL support: Yes
  • Loop protection: Yes
  • BPDU filtering/protection: Yes
  • IP-MAC-Port binding: Yes
  • Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
  • Password protection: Yes
  • Authentication type: AAA, IEEE 802.1x, RADIUS, TACACS+
  • Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

  • Multicast support: Yes
  • Multicast Listener Discovery (MLD) snooping: MLD v1/v2

Protocols

  • Management protocols: SNMP v1/v2c/v3
  • GARP VLAN Registration Protocol (GVRP): Yes
  • IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • Redundant fans support: Yes
  • Number of fans: 3 fan(s)

Performance

  • Memory type: DRAM
  • Internal memory: 256 MB
  • Flash memory: 32 MB

Power

  • Power source: AC/PoE
  • Power supply included: Yes
  • Redundant power supply (RPS) support: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 629.1 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 16
  • Power over Ethernet 4PPoE (PoE++) ports quantity: 8
  • Total Power over Ethernet (PoE) budget: 500 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 2153.45 BTU/h

Weight & dimensions

  • Width: 440 mm
  • Depth: 330 mm
  • Height: 44 mm

Packaging content

  • Cables included: AC
  • Quick start guide: Yes
  • Rack mount kit: Yes

Sustainability

  • Sustainability compliance: Yes

Certificates

  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
