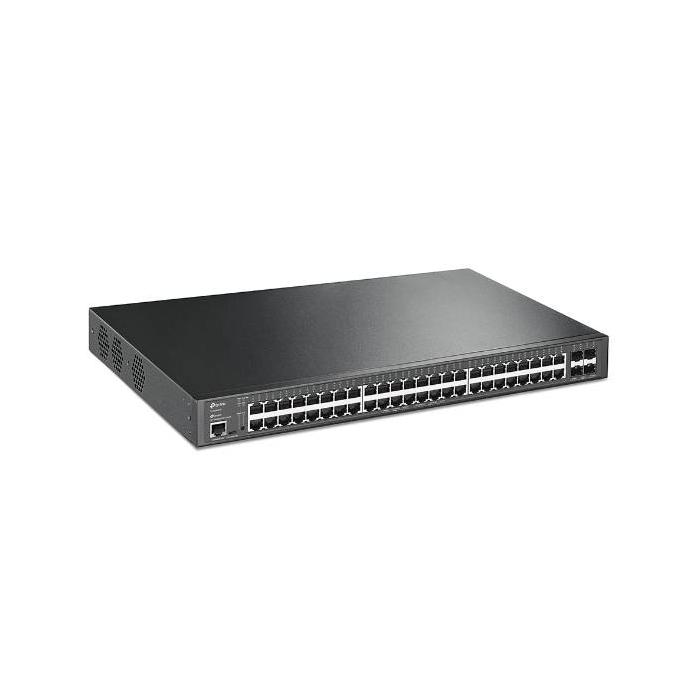

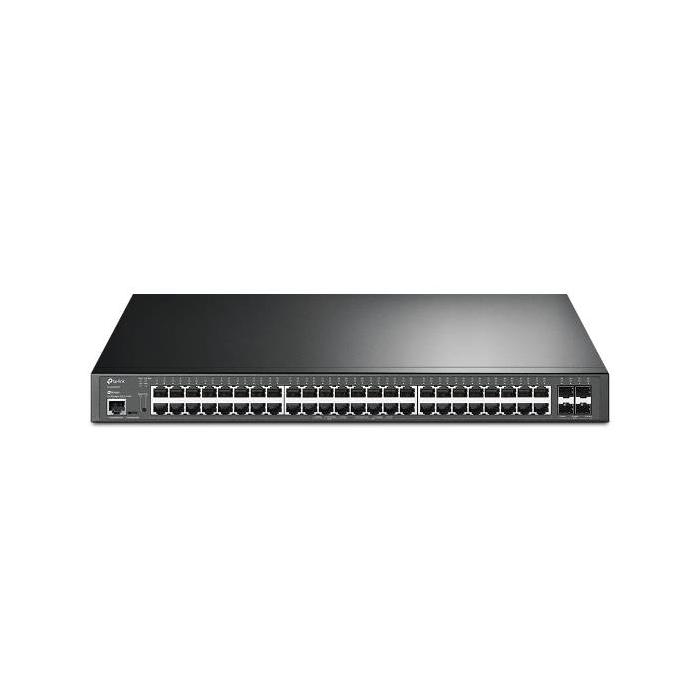

TP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+

Not avaliable

TP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+.   More info

Brand: TP-LINK
SKU: 93830 PRC: 373991 EAN: 6935364006495 PN: TL-SG3452XP

Description

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2+
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 4
  • Console port: RJ-45/Micro-USB
  • Power connector: AC-in jack

Network

  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 80
  • 10G support: Yes
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • Head-of-line (HOL) blocking: Yes
  • VLAN support: Yes

Data transmission

  • Switching capacity: 176 Gbit/s
  • Forwarding rate: 130.9 Mpps
  • MAC address table: 16000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 12 MB

Security

  • IGMP snooping: Yes
  • MAC address filtering: Yes
  • Static port security: Yes
  • SSH/SSL support: Yes
  • BPDU filtering/protection: Yes
  • IP-MAC-Port binding: Yes
  • Authentication: Auto VLAN, Guest VLAN
  • DHCP features: DHCP client, DHCP relay, DHCP server
  • Access Control List (ACL): Yes

Multicast features

  • Multicast support: Yes

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • Reset button: Yes
  • LED indicators: Yes
  • Number of fans: 3 fan(s)

Power

  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 635.7 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 48
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 500 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 2169.2 BTU/h

Weight & dimensions

  • Width: 440 mm
  • Depth: 330 mm
  • Height: 44 mm

Packaging content

  • Cables included: AC
  • Quick start guide: Yes

Certificates

  • Certification: CE, FCC, RoHS
