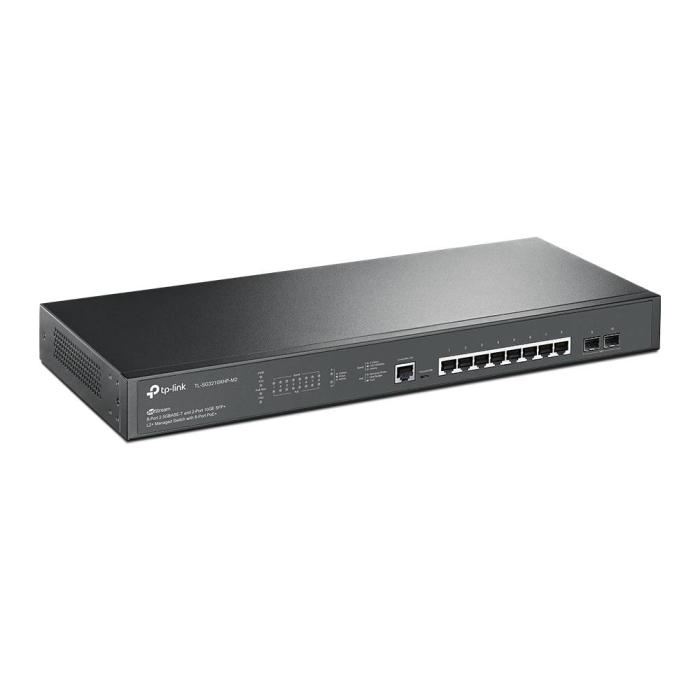

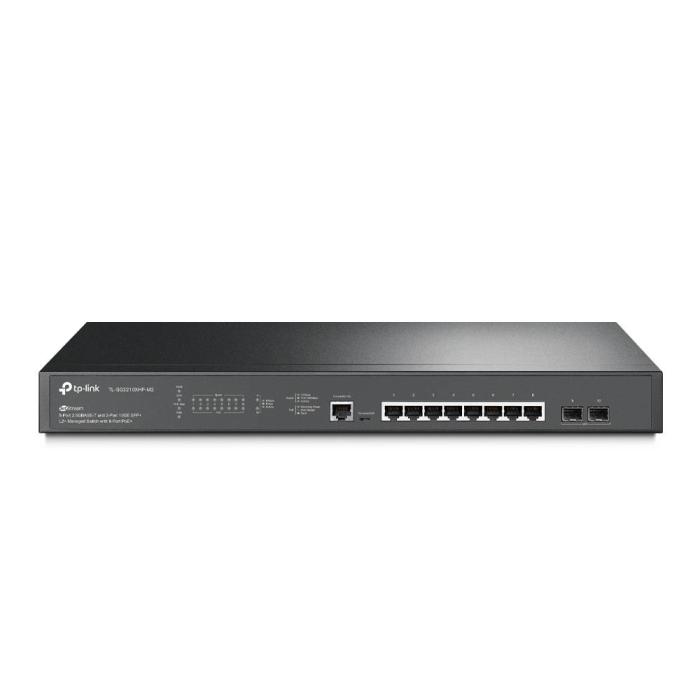

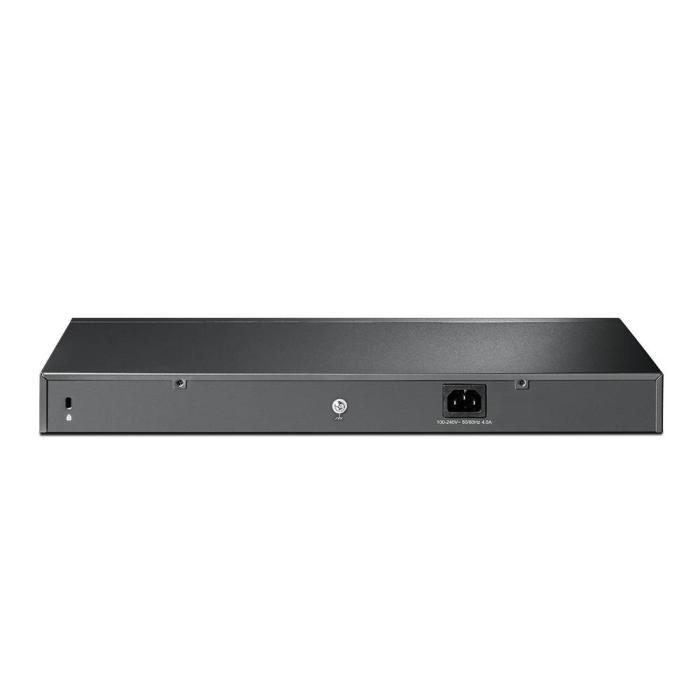

TP-Link JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

425.00 €
351.24 € without VAT

More info

Brand: TP-LINK
SKU: 87338 PRC: 312004 EAN: 6935364030803 PN: TL-SG3210XHP-M2

Description

TP-Link JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+, Managed, L2+, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting, 1U

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2+
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • Traffic classification: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
  • 2.5G Ethernet (copper) ports quantity: 8
  • SFP+ module slots quantity: 2
  • Console port: RJ-45/micro-USB
  • Power connector: AC-in jack

Network

  • Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
  • 10G support: Yes
  • Port mirroring: Yes
  • IP routing: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • Head-of-line (HOL) blocking: Yes
  • Ethernet LAN data rates: 100,1000,2500 Mbit/s
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
  • Number of VLANs: 4000

Data transmission

  • Switching capacity: 80 Gbit/s
  • Forwarding rate: 59.52 Mpps
  • MAC address table: 16000 entries
  • Static route: Yes
  • Number of static routes: 48
  • Number of IP interfaces: 16
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 12 MB

Security

  • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Security algorithms: HTTPS, SSH, SSH-2, SSL/TLS
  • MAC address filtering: Yes
  • Static port security: Yes
  • SSH/SSL support: Yes
  • Loop protection: Yes
  • BPDU filtering/protection: Yes
  • IP-MAC-Port binding: Yes
  • Authentication: MAC-based authentication, Port-based authentication
  • Password protection: Yes
  • Authentication type: AAA, TACACS+
  • Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

  • Multicast support: Yes
  • Multicast Listener Discovery (MLD) snooping: Yes

Protocols

  • Management protocols: SNMPv1/v2c/v3, SNTP
  • GARP VLAN Registration Protocol (GVRP): Yes

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • Number of fans: 2 fan(s)

Power

  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 292 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 240 W

Operational conditions

  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 996.35 BTU/h

Weight & dimensions

  • Width: 440 mm
  • Depth: 180 mm
  • Height: 44 mm

Packaging content

  • Cables included: AC
  • Quick start guide: Yes

Packaging data

  • Package type: Box
  • Package width: 528 mm
  • Package depth: 250 mm
  • Package height: 80 mm
  • Package weight: 2.84 kg

Certificates

  • Certification: CE, FCC, RoHS

Logistics data

  • Harmonized System (HS) code: 85176990
