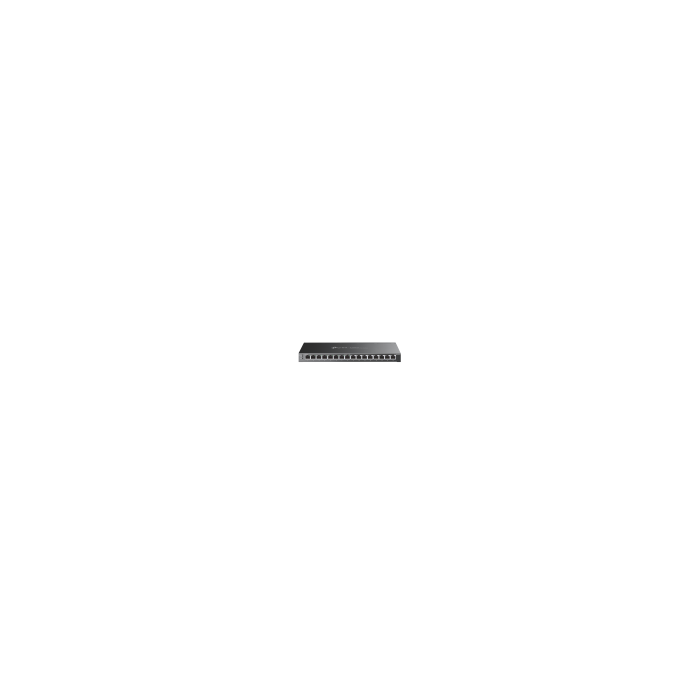

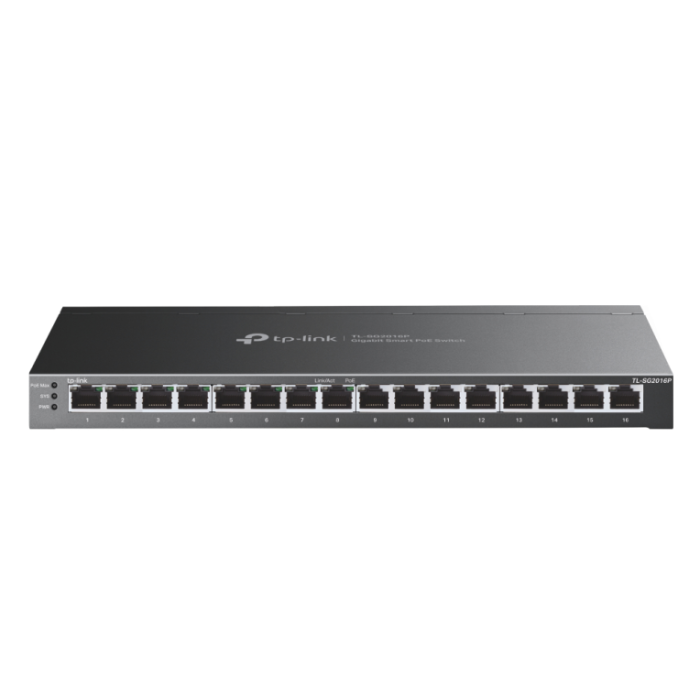

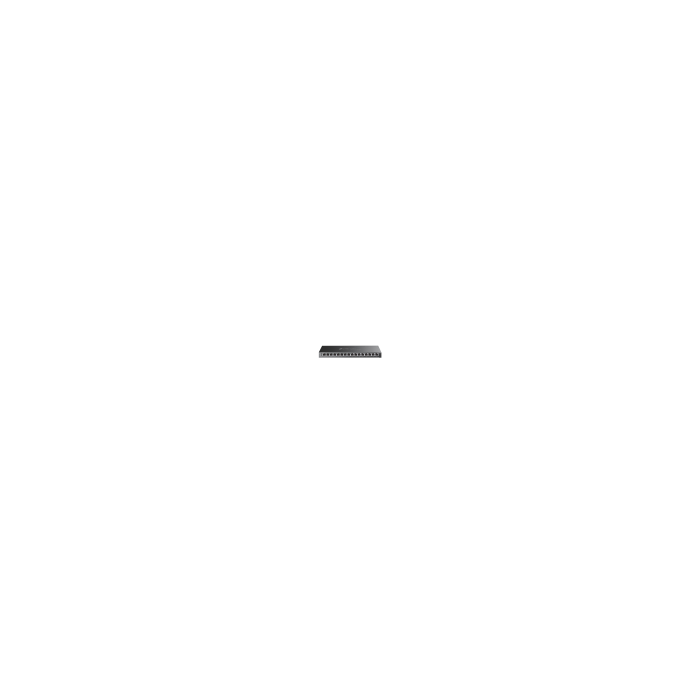

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+

$177.11
$177.11 without VAT

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+.   More info

Brand: TP-LINK
SKU: 98197 PRC: 425760 EAN: 4897098689493 PN: TL-SG2016P

Description

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2/L2+
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • MIB support: RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Power connector: DC-in jack

Network

  • Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 80
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Virtual LAN features: Multicast VLAN, Tagged VLAN, Voice VLAN
  • Number of VLANs: 4000

Data transmission

  • Switching capacity: 32 Gbit/s
  • Forwarding rate: 23.81 Mpps
  • MAC address table: 8000 entries
  • Number of queues: 8
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 4.1 MB

Security

  • DHCP features: DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Security algorithms: EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
  • MAC address filtering: Yes
  • SSH/SSL support: Yes
  • BPDU filtering/protection: Yes
  • IP-MAC-Port binding: Yes
  • Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
  • Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
  • MAC address entries: Dynamic MAC address entries, Static MAC address entries

Multicast features

  • Multicast support: Yes
  • Multicast Listener Discovery (MLD) snooping: MLD v1, MLD v2

Protocols

  • Supported network protocols: ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
  • GARP VLAN Registration Protocol (GVRP): Yes
  • IPv4 & IPv6 features: Dual stack IPv4/IPv6

Design

  • Rack mounting: Yes
  • Product colour: Black
  • LED indicators: PoE, Power, System

Performance

  • Firmware upgradeable: Yes
  • Fanless: Yes

Power

  • Power source: DC/PoE
  • DC input voltage: 53.5 V
  • Power consumption (max): 146.5 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 499.98 BTU/h
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

  • Width: 286 mm
  • Depth: 111.7 mm
  • Height: 25.4 mm

Packaging content

  • Cables included: AC
  • Manual: Yes

Certificates

  • Certification: CE, FCC, RoHS
