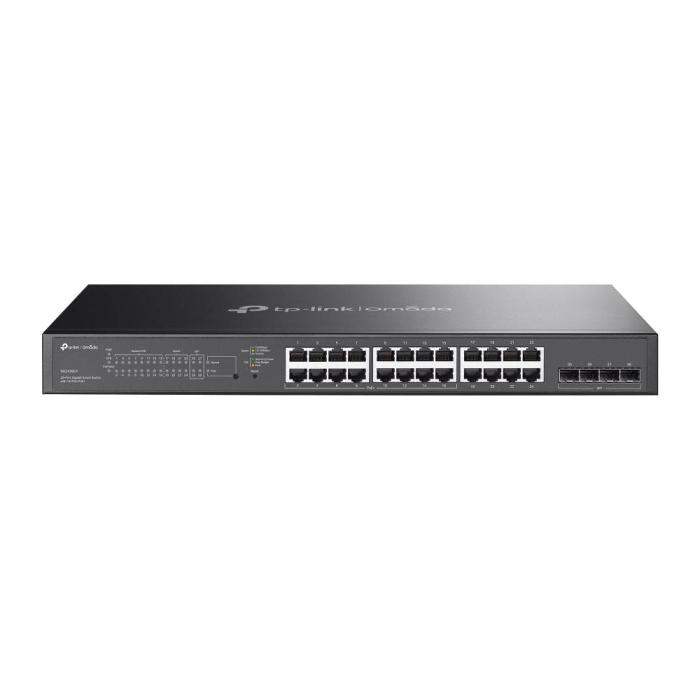

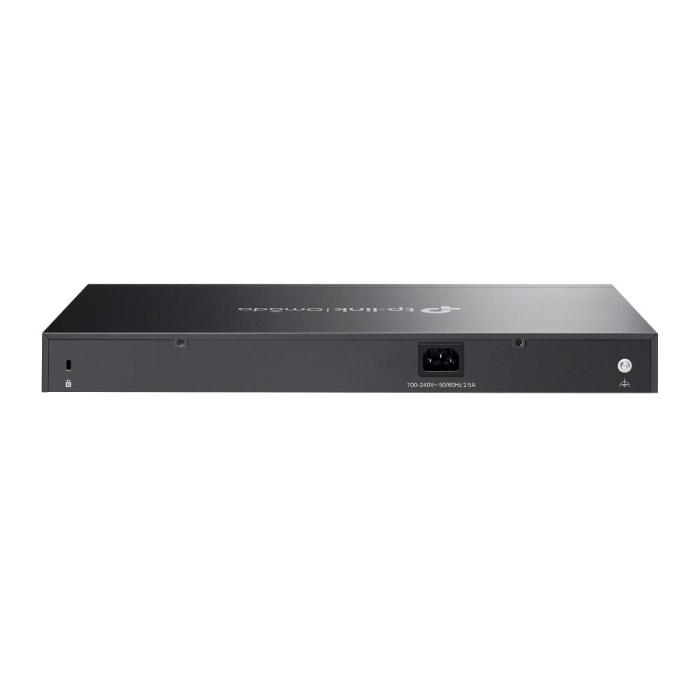

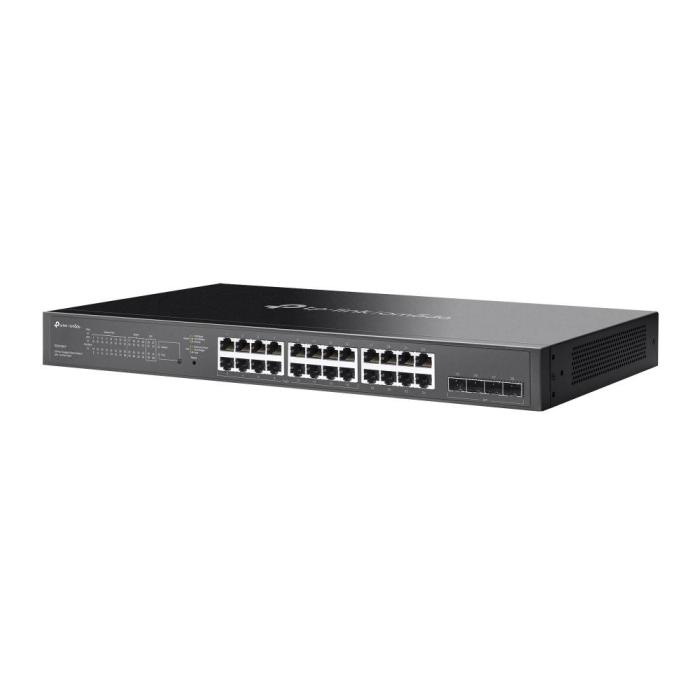

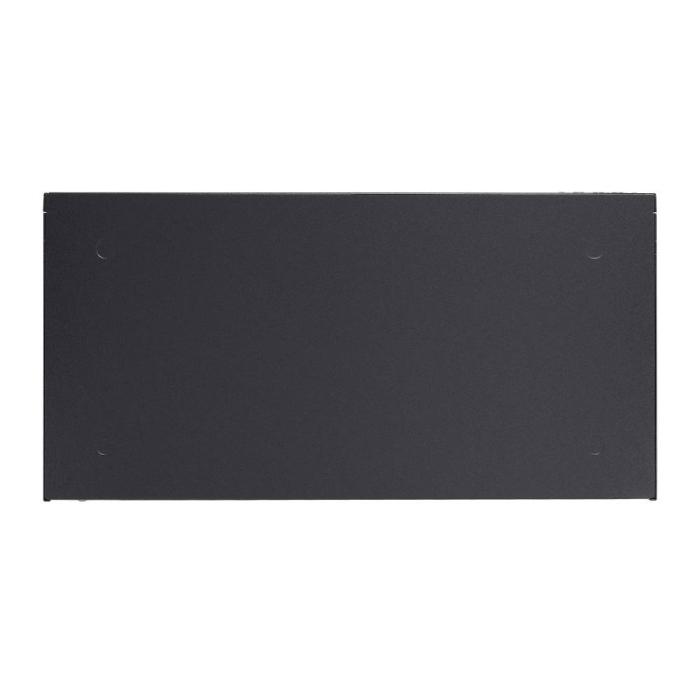

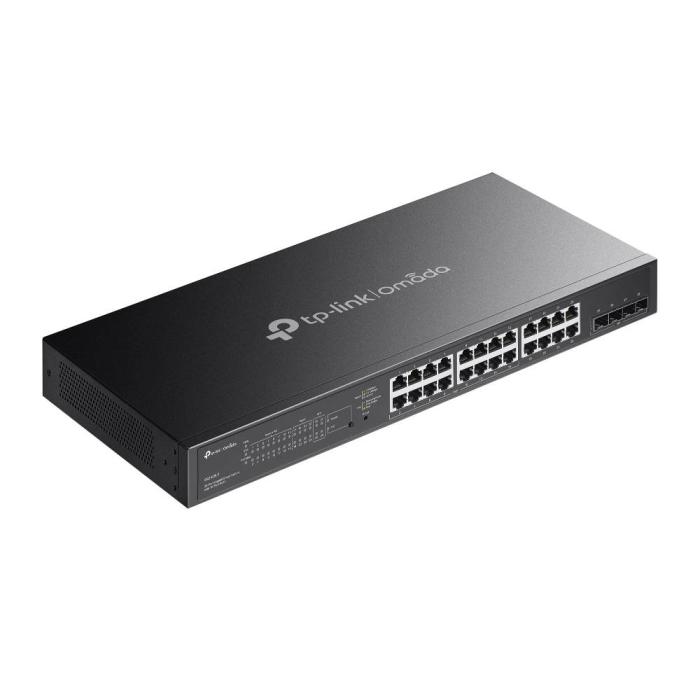

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

$281.84
$281.84 without VAT

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+.   More info

Brand: TP-LINK
SKU: 106192 PRC: 524504 EAN: 8885020620832 PN: SG2428LP

Description

16× 10/100/1000 Mbps PoE+ RJ45, 8× 10/100/1000 Mbps RJ45, 4× Gigabit SFP Slots, 56 Gbps, 41.66 Mpps, 440 x 220 x 44 mm

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2/L2+
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • ARP inspection: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 4

Network

  • Networking standards: IEEE 802.3af, IEEE 802.3at
  • 10G support: No
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
  • Number of VLANs: 4000

Data transmission

  • Switching capacity: 56 Gbit/s
  • Forwarding rate: 41.66 Mpps
  • MAC address table: 8000 entries
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 4.1 MB

Security

  • DHCP features: DHCP relay, DHCP server
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • MAC address filtering: Yes
  • Password protection: Yes

Multicast features

  • Multicast support: Yes

Design

  • Rack mounting: Yes
  • Product colour: Grey
  • LED indicators: Yes

Performance

  • Fanless: Yes

Power

  • Power source: AC/PoE
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 184.7 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 16
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 150 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 628 BTU/h

Weight & dimensions

  • Width: 440 mm
  • Depth: 220 mm
  • Height: 44 mm
