Description

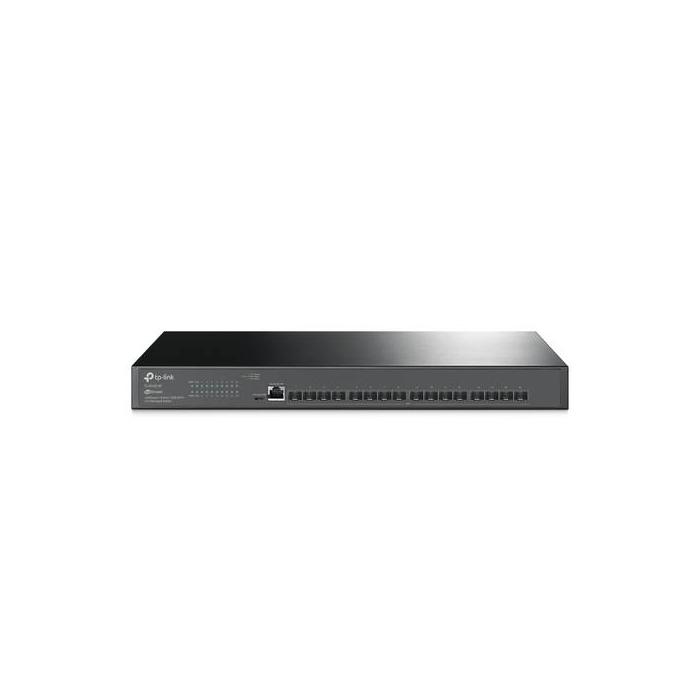

TP-Link's JetStream series managed switch, the TL-SX3016F, offers high-performance connectivity with its 16 SFP+ slots for fibre modules, ideal for networks requiring high-speed links. This model operates at L2+ and L3 layers, enabling advanced traffic management through features such as quality of service, traffic classification, and ARP inspection. Its administration is versatile, as it can be configured via the web, command line, or even managed from the cloud, facilitating centralised control. With support for 4000 VLANs, storm control, and HOL blocking, it ensures a stable and segmented network; it includes an RJ-45 and Micro-USB console port for easy initial setup, plus a DC input socket for its power supply.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2+/L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
- Traffic classification: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
- System event log: Yes
- MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Ports & interfaces
- Basic switching RJ-45 Ethernet ports type: No
- SFP+ module slots quantity: 16
- Console port: RJ-45/Micro-USB
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
- 10G support: Yes
- Port mirroring: Yes
- IP routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 4000
Data transmission
- Switching capacity: 320 Gbit/s
- Forwarding rate: 238.08 Mpps
- MAC address table: 32000 entries
- Number of queues: 8
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 24 MB
Security
- DHCP features: DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: HTTPS, SSH, SSH-2, SSL/TLS
- MAC address filtering: Yes
- Static port security: Yes
- SSH/SSL support: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- IP-MAC-Port binding: Yes
- Authentication: Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
- Authentication type: AAA, TACACS+
- Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
- Multicast support: Yes
- Multicast Listener Discovery (MLD) snooping: Yes
Protocols
- Management protocols: SNMPv1/v2c/v3, SNTP
- IPv4 & IPv6 features: IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
- Rack mounting: Yes
- Product colour: Black
- LED indicators: Yes
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 32.74 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 111.71 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 220 mm
- Height: 44 mm
Packaging content
- Cables included: AC
- Quick start guide: Yes
- Manual: Yes
- Rack mount kit: Yes
Packaging data
- Package type: Box
- Package width: 528 mm
- Package depth: 336 mm
- Package height: 100 mm
- Package weight: 3.7 kg
Certificates
- Certification: CE, FCC, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
