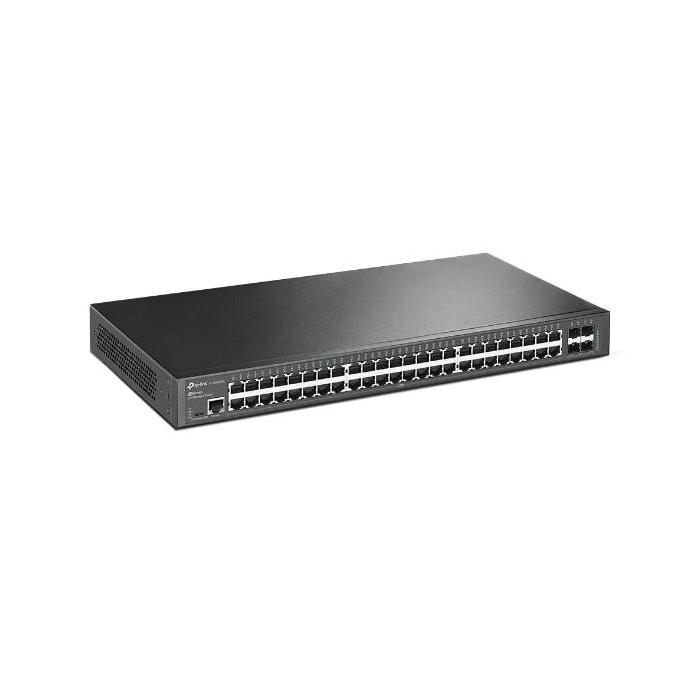

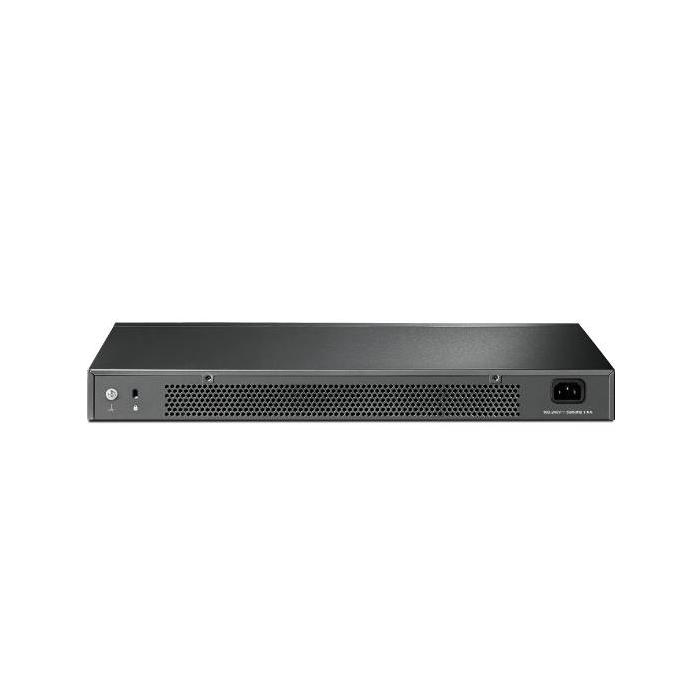

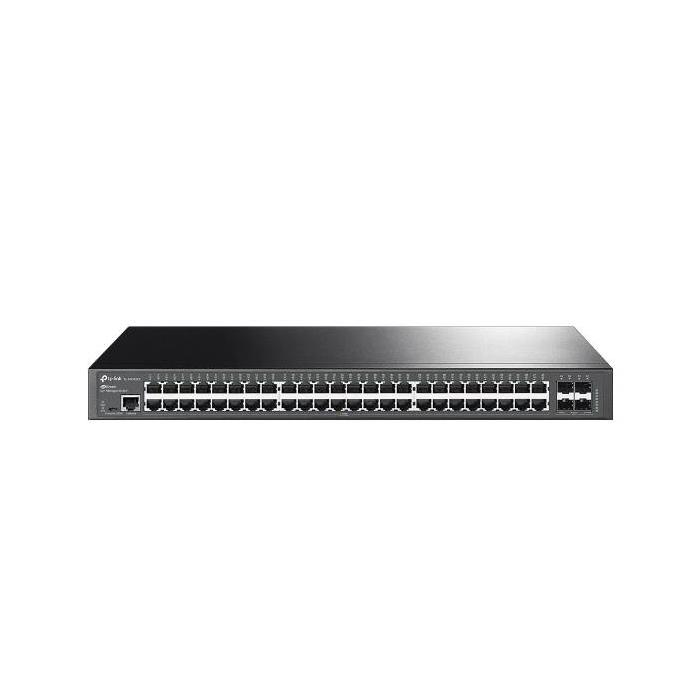

Name: TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
Brand: TP-LINK
Price: 415.15 USD
Availability: InStock

TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

$415.15

$415.15 without VAT

TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots. More info

Amount

Brand: TP-LINK

SKU: 96557 PRC: 396741 EAN: 840030702501 PN: TL-SG3452X

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Console port: RJ-45/Micro-USB
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
10G support: Yes
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
IPv4 routes: 48
IPv6 routes: 48
VLAN support: Yes
Virtual LAN features: Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 176 Gbit/s
Forwarding rate: 130.9 Mpps
MAC address table: 16000 entries
Static route: Yes
Number of static routes: 48
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 12 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server
Access Control List (ACL): Yes
IGMP snooping: Yes
IGMP proxy: Yes
MAC address filtering: Yes
Static port security: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Authentication: Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Password protection: Yes
Authentication type: AAA, RADIUS, TACACS+
Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Yes

Protocols

Management protocols: SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 0 fan(s)

Power

Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 32.72 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 111.65 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 220 mm
Height: 44 mm

Packaging content

Cables included: AC
Quick start guide: Yes

Packaging data

Rack rails: Yes
Package width: 528 mm
Package depth: 336 mm
Package height: 100 mm
Package weight: 4 kg

Certificates

Certification: CE, FCC, RoHS

Logistics data

Harmonized System (HS) code: 85176990
