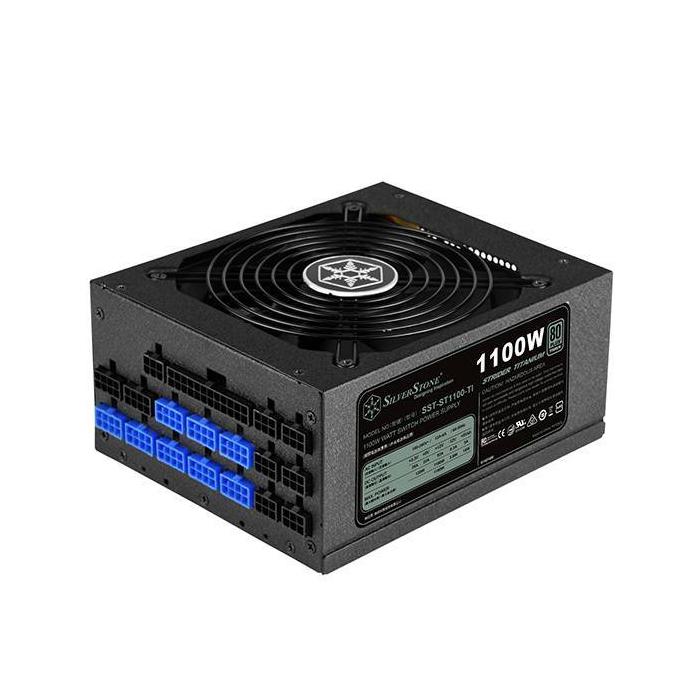

Silverstone ST1100-TI v2.0 power supply unit 1100 W 20+4 pin ATX ATX Black
More info
Brand: SILVERSTONE
296.94 €
245.41 €
without VAT
Stock available: 2 units.
Get it
on the
September 1
/
September 2
SKU:
123049
PRC:
366531
EAN:
4710007226285
PN:
sst-st1100-ti v2.0
Description
The Silverstone ST1100-TI v2.0 power supply unit, in its black version, delivers a total power of 1100 W with an efficiency of 94%, and its 20+4 pin ATX connector makes it compatible with current motherboards. Its active power factor correction and protections against overcurrent, overvoltage, overheating and short-circuit ensure a stable supply for demanding configurations. With a maximum output current of 92 A on the +12 V rail and a wide input voltage range of 90 to 264 V, it adapts to different electrical conditions. It also includes a floppy disk drive connector, along with +3.3 V, +5 V and +5Vsb outputs to cover all system components.
Specifications
Power
- Total power: 1100 W
- Peak power: 1200 W

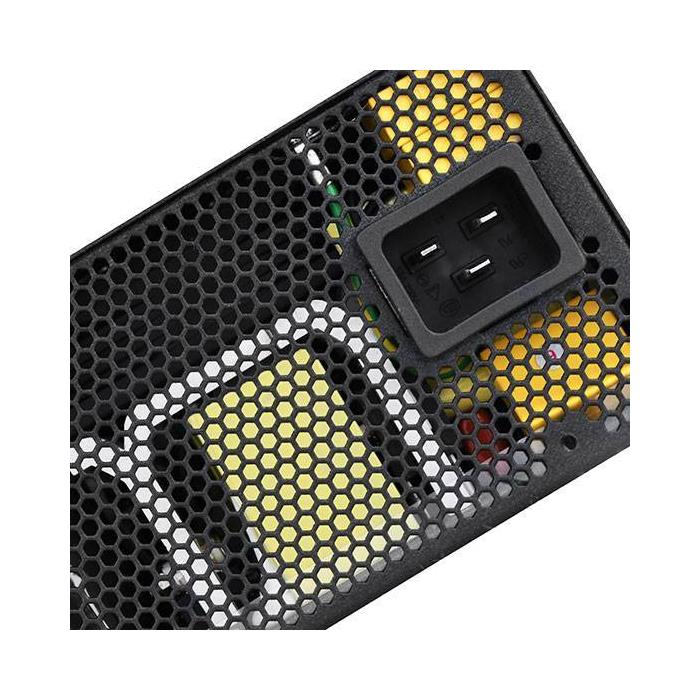

- AC input voltage: 90 - 264 V
- AC input frequency: 47 - 63 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 1100 W
- Combined power (+5V): 120 W
- Max output current (+3.3V): 25 A
- Max output current (+12V1): 92 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 94%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm

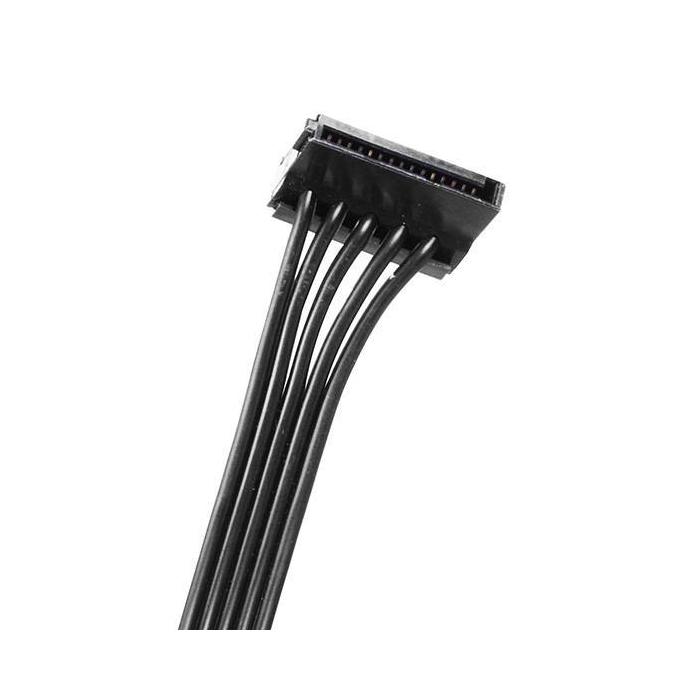

- Number of SATA power connectors: 16
- SATA power cable length: 150, 600 mm

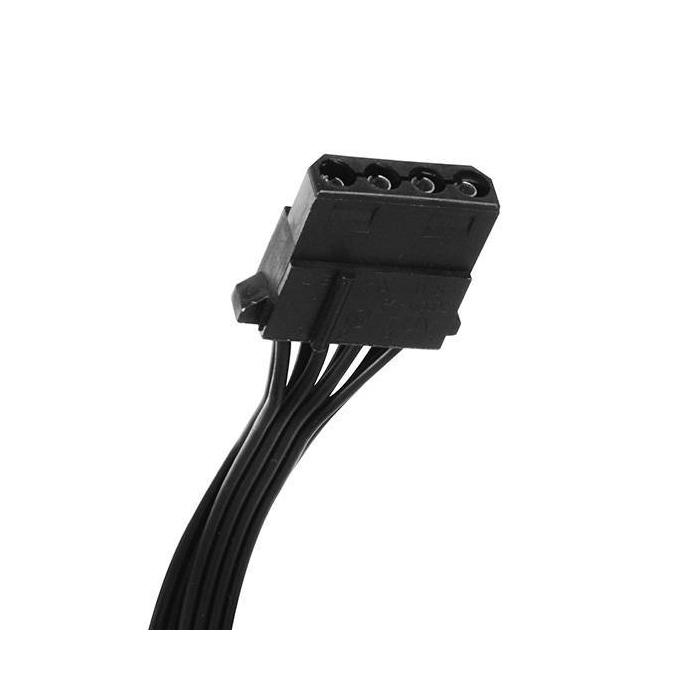

- Peripheral (Molex) power connectors (4-pin): 6
- Peripheral (Molex) power cable length: 150, 600 mm

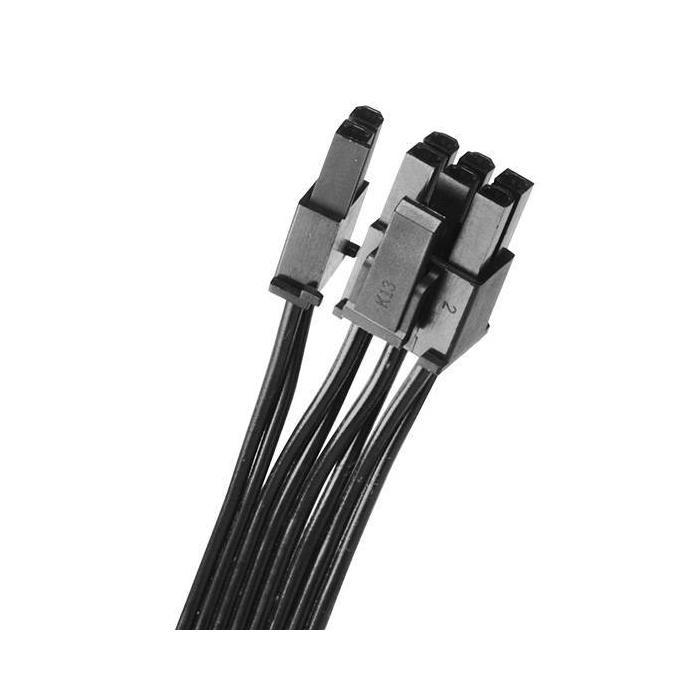

- PCI Express power connectors (6+2 pin): 8
- PCI Express power cable length: 55 cm

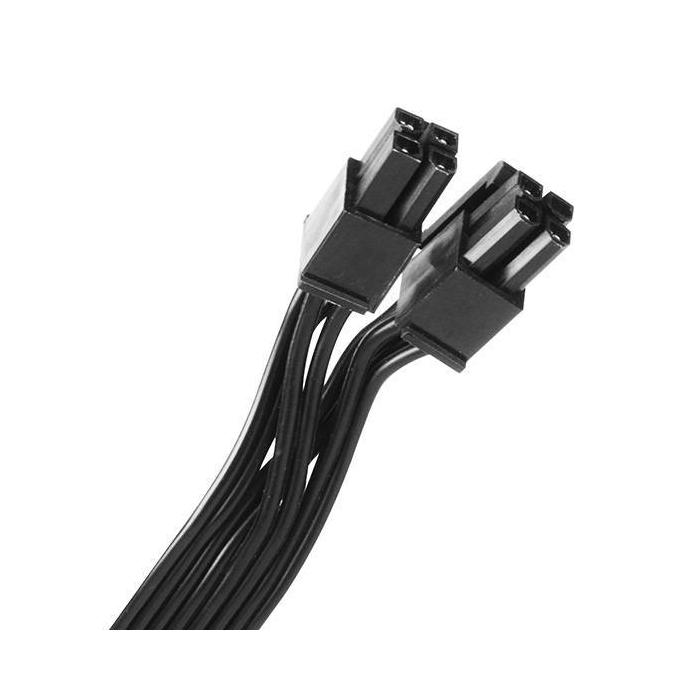

- CPU power connector (4+4 pin): Yes
- ATX power connector (20+4 pin): Yes

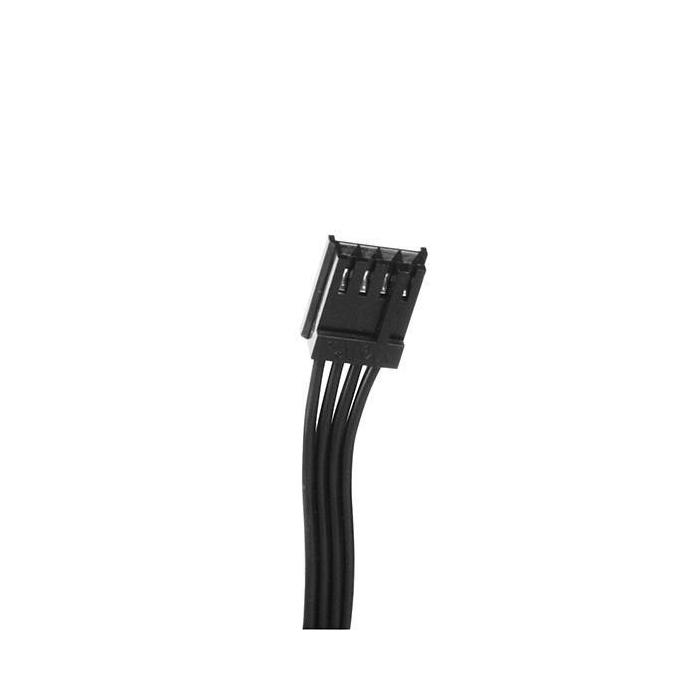

- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 10 cm
- PCI Express connector: Yes

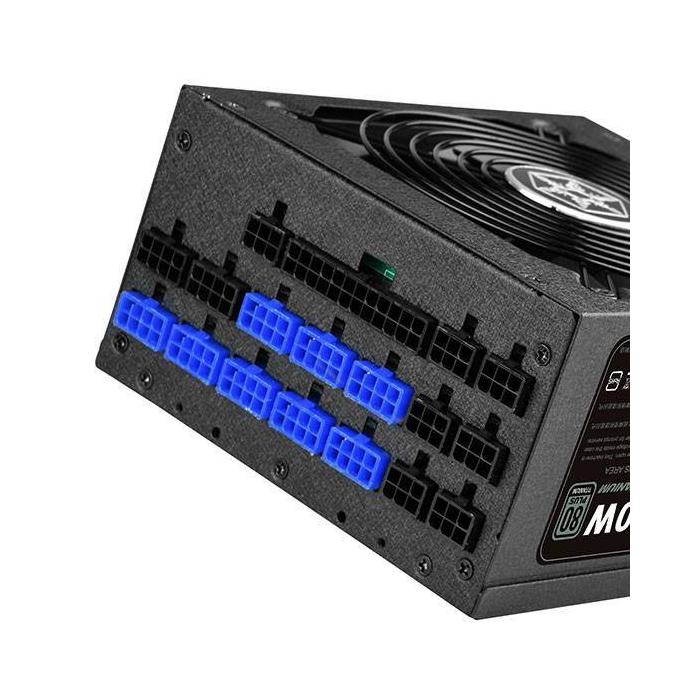

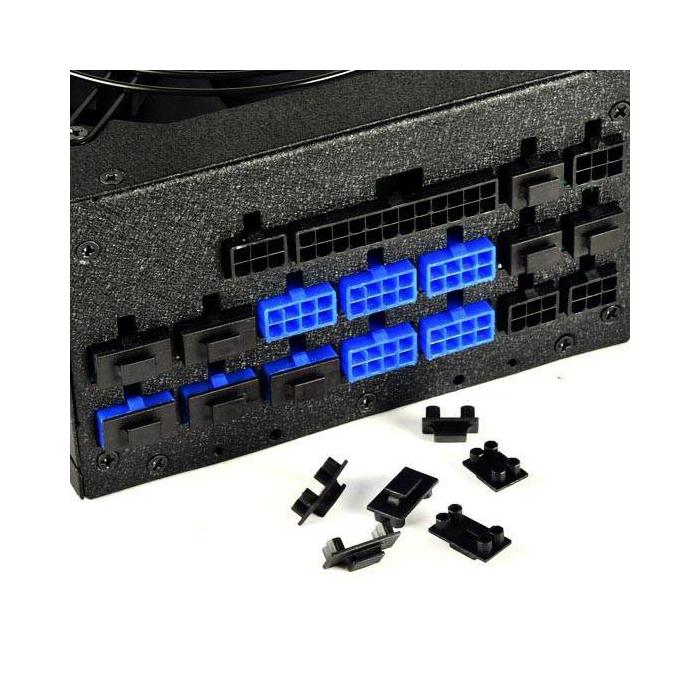

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Titanium
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.4
- Noise level: 36 dB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black

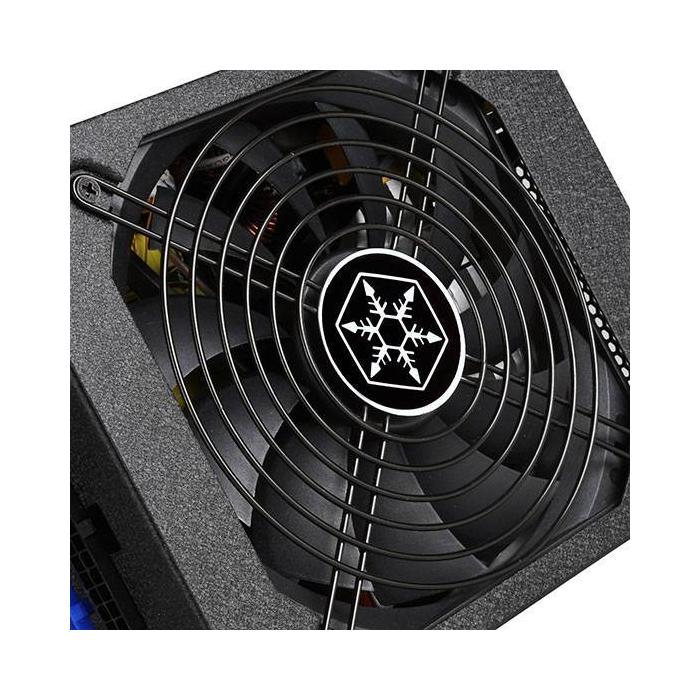

- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- Fan location: Top
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 150 mm
- Depth: 180 mm
- Height: 86 mm
- Weight: 3.96 kg
Packaging data
- Package type: Box
Logistics data
- Harmonized System (HS) code: 84733020
