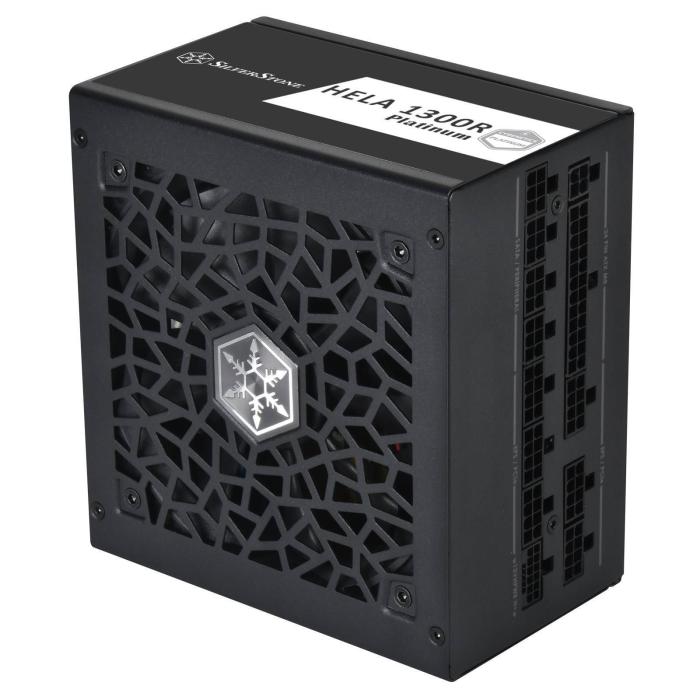

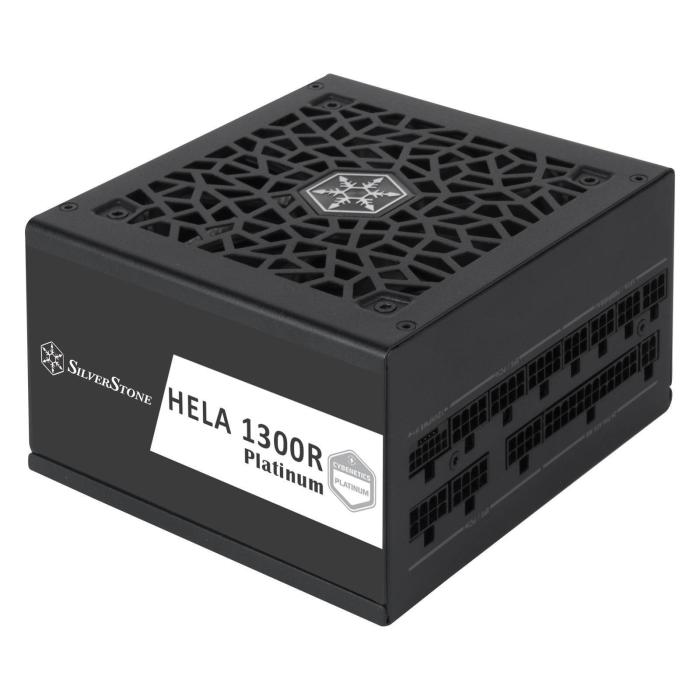

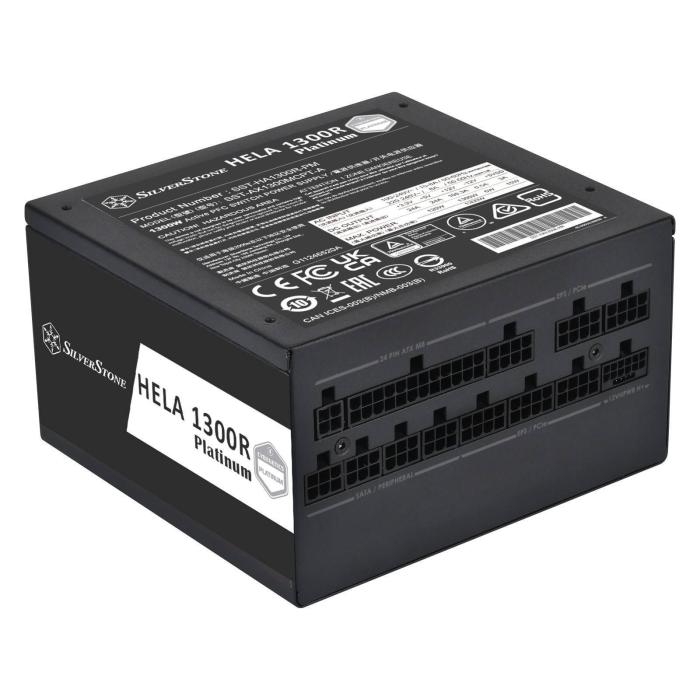

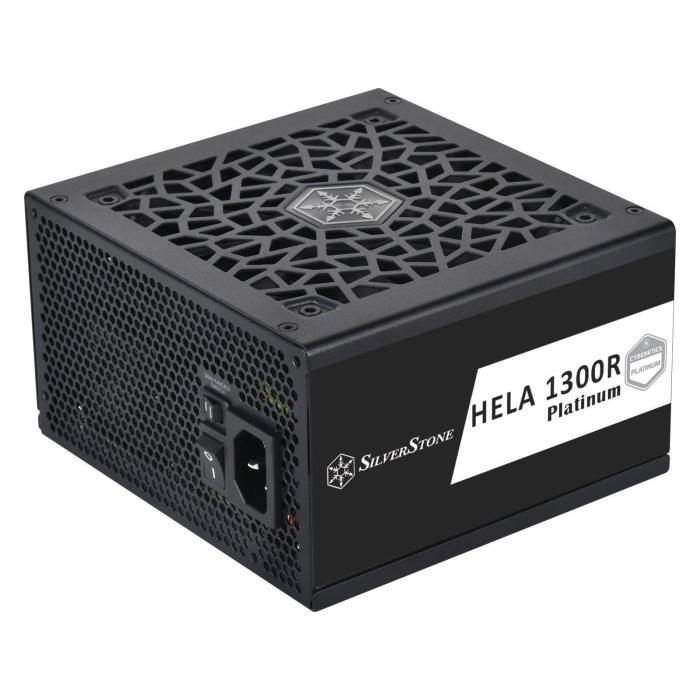

Silverstone HELA 1300R Platinum power supply unit 1300 W 20+4 pin ATX ATX Black
More info
Brand: SILVERSTONE
300.86 €
248.65 €
without VAT
Stock available: 1 ud.
Get it
on the
September 1
/
September 2
SKU:
109193
PRC:
579586
EAN:
4710679815688
PN:
SST-HA1300R-PM
Description
Silverstone HELA 1300R Platinum power supply unit with a total output of 1300 W and a main 20+4 pin ATX connector, designed for demanding builds that require stable and reliable power delivery. Its 89% efficiency is complemented by active power factor correction and protection against overcurrent, overvoltage, overheating, short circuit, and undervoltage to safeguard the rest of the components. The fully modular cabling simplifies internal chassis management and allows connection of up to eight SATA devices, in addition to including a connector for a floppy drive. With an AC input voltage of 90 to 264 V and a frequency of 47 to 63 Hz, it offers a maximum current of 108.3 A on the +12 V rail, suitable for powering high-consumption configurations.
Specifications
Power

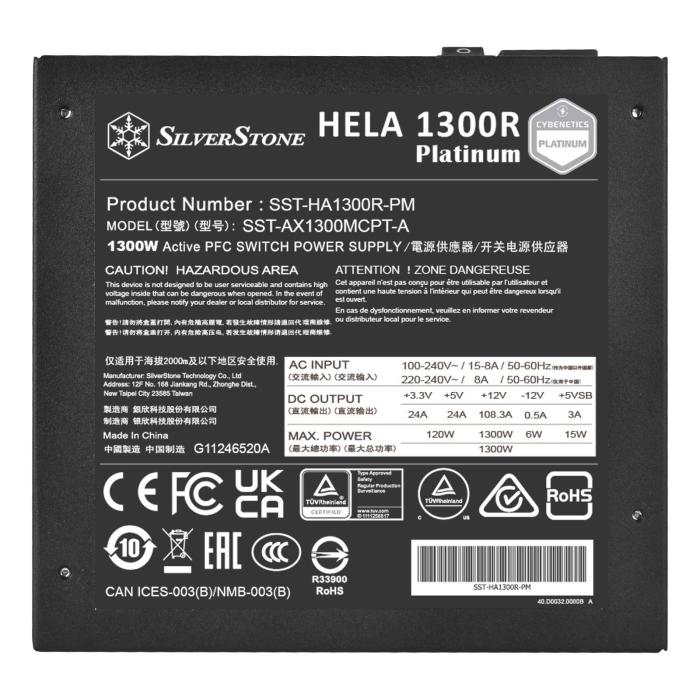

- Total power: 1300 W

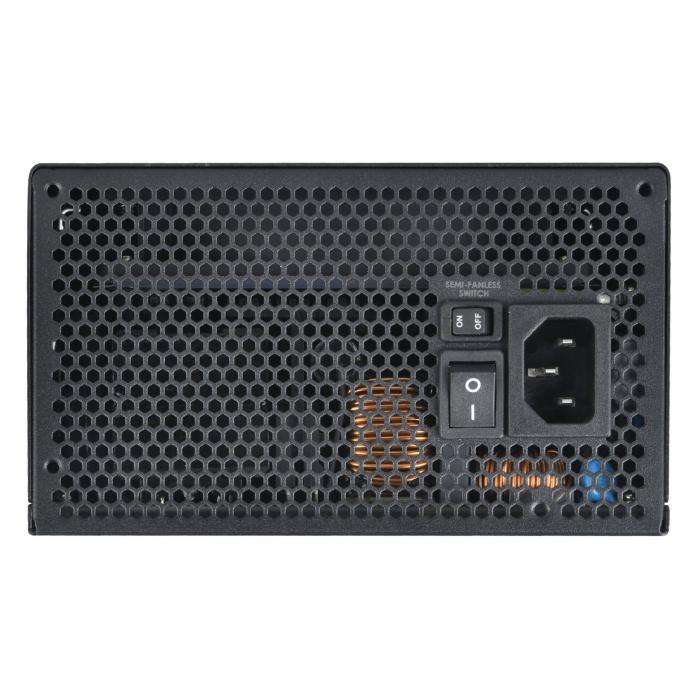

- AC input voltage: 90 - 264 V
- AC input frequency: 47 - 63 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 1300 W
- Combined power (+5V): 120 W
- Max output current (+3.3V): 24 A
- Max output current (+12V): 108.3 A
- Max output current (+5V): 24 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Efficiency: 89%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces

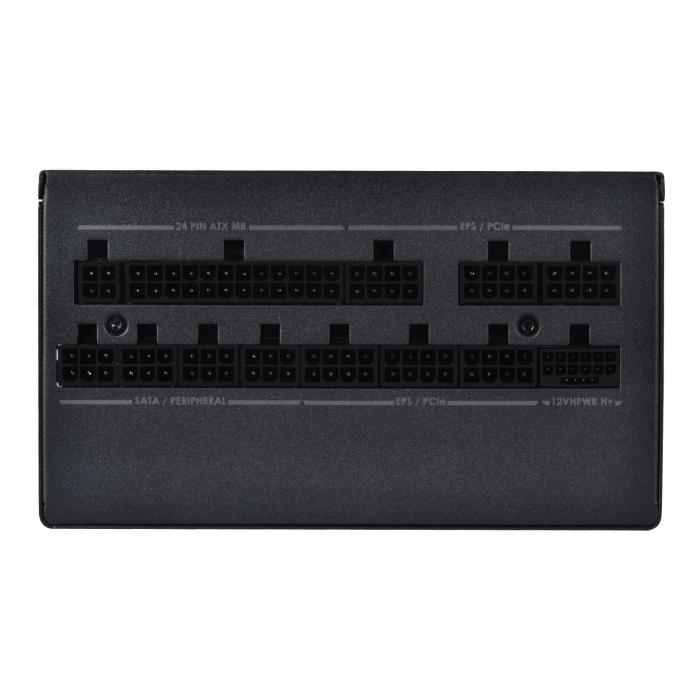

- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 8
- Peripheral (Molex) power connectors (4-pin): 6
- Floppy drive power connector: 2
- Floppy disk drive connector: Yes

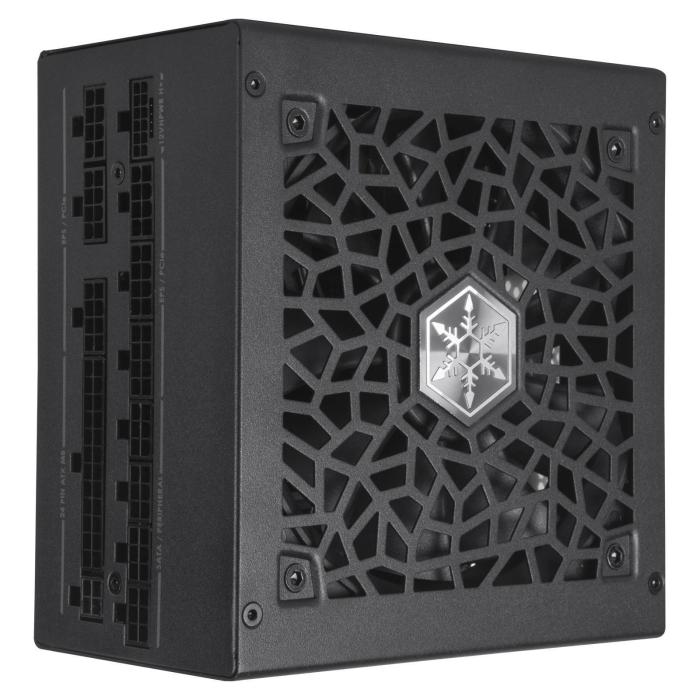

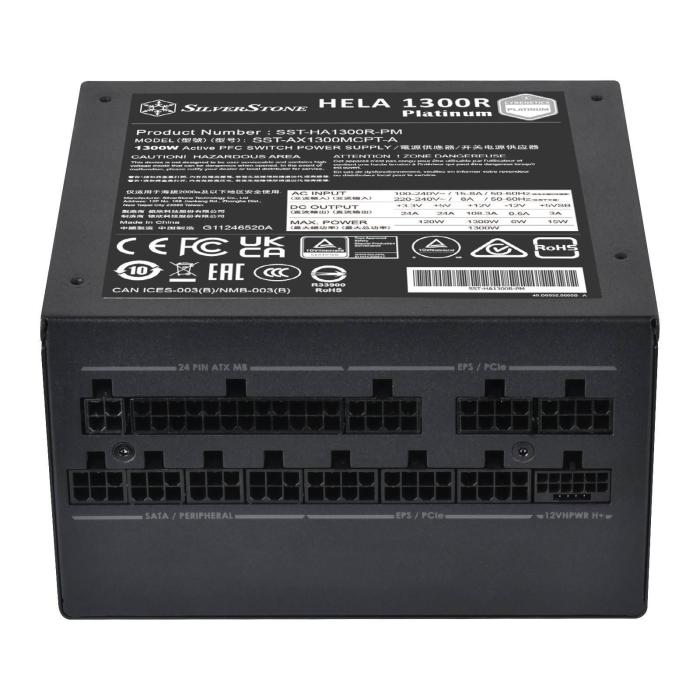

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top

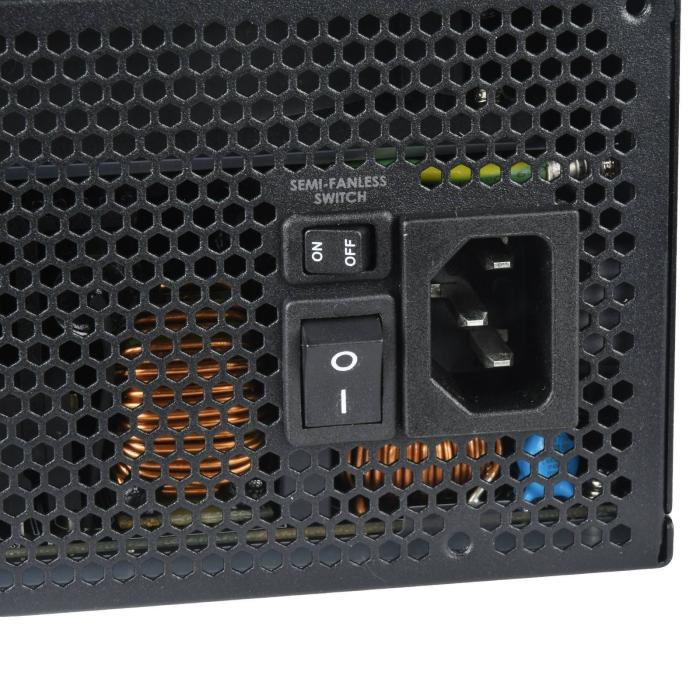

- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
- Weight: 2.93 kg
Packaging data
- Package type: Box
