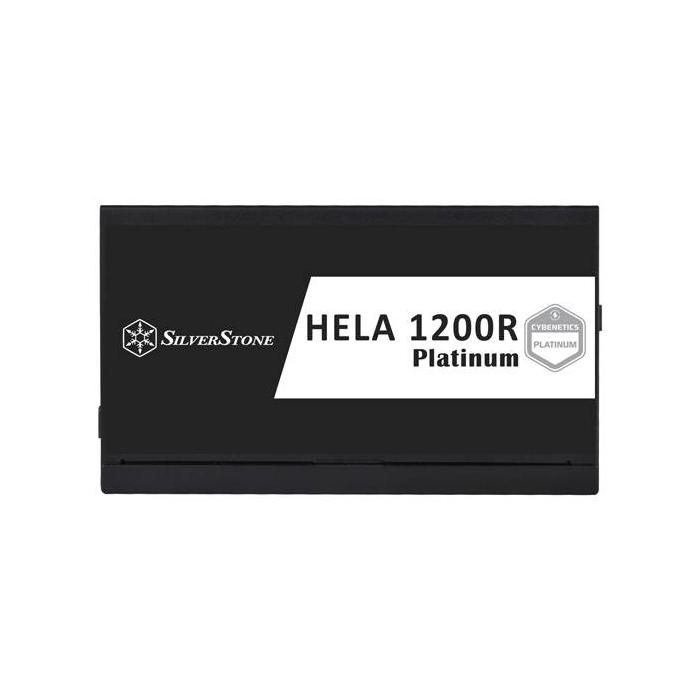

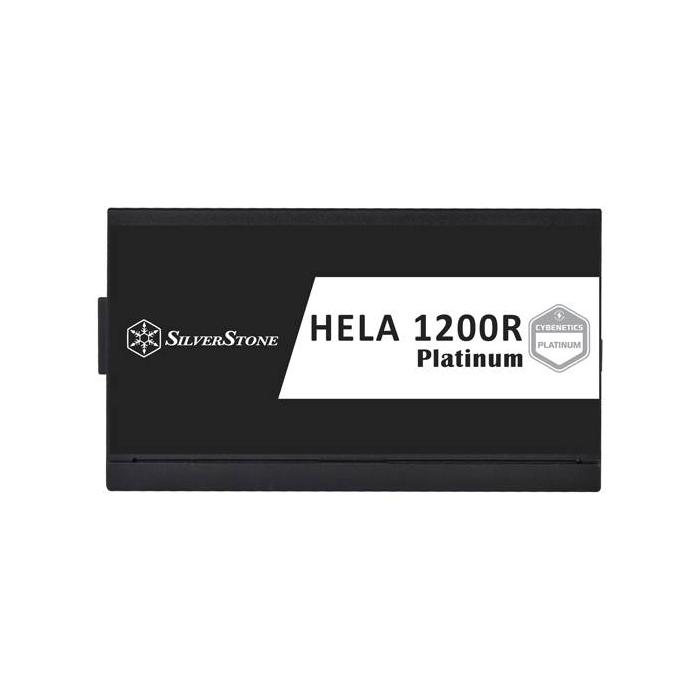

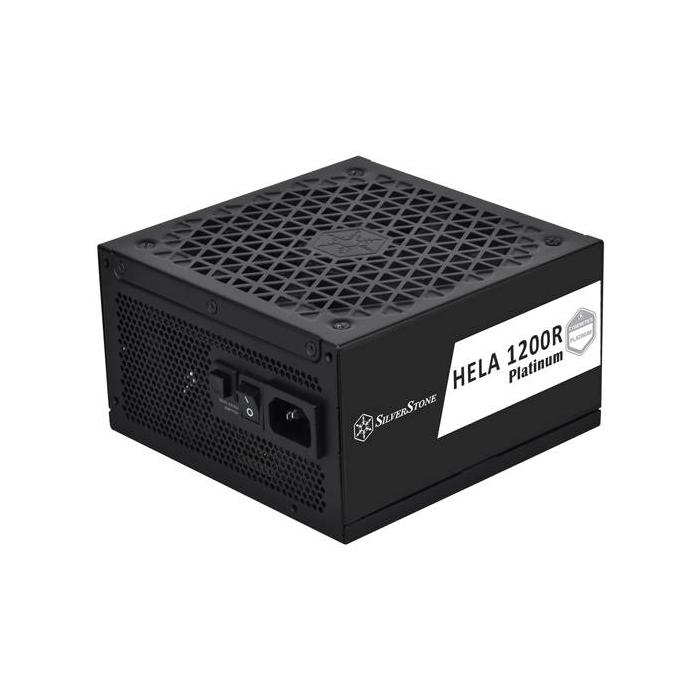

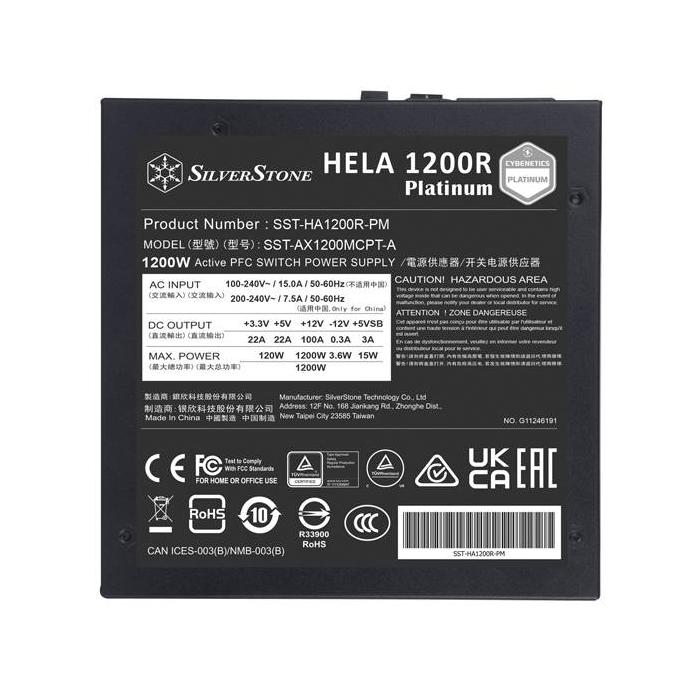

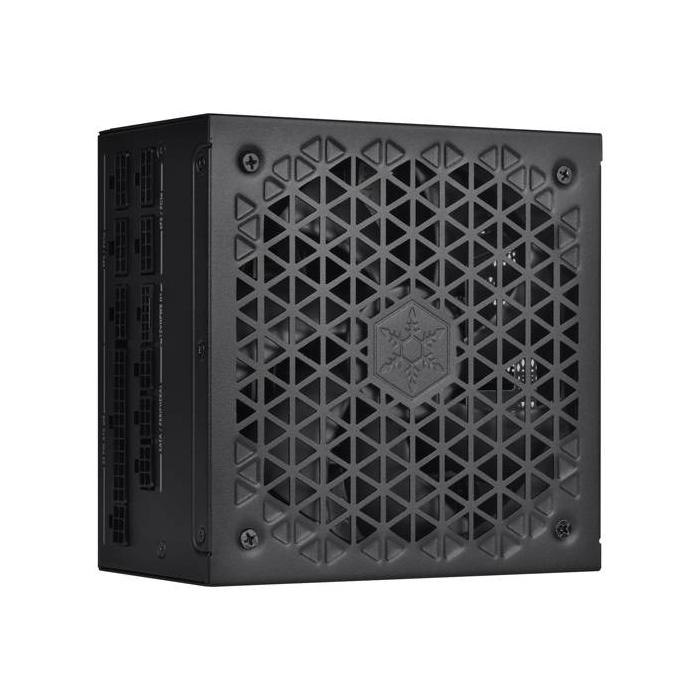

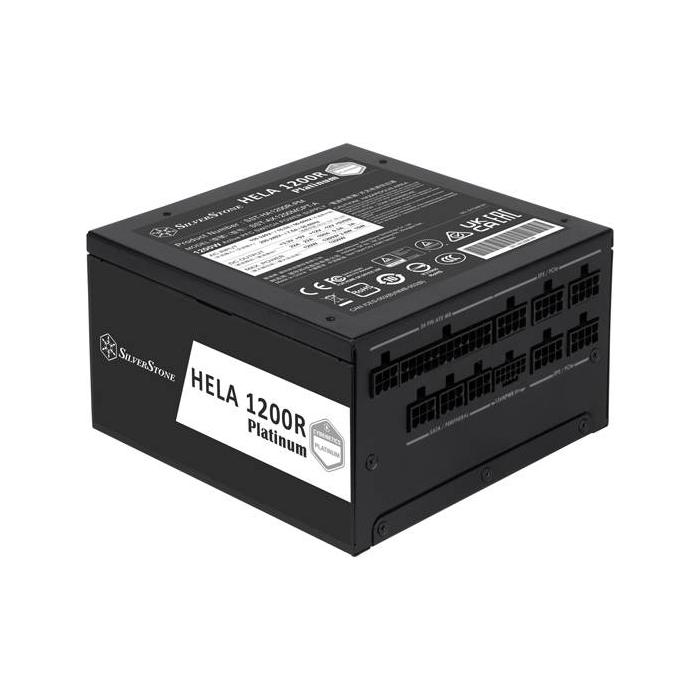

Silverstone HELA 1200R Platinum power supply unit 1200 W 20+4 pin ATX ATX Black
More info
Brand: SILVERSTONE
241.08 €
199.24 €
without VAT
Stock available: 1 ud.
Get it
on the
September 1
/
September 2
SKU:
102523
PRC:
460426
EAN:
4710679815565
PN:
SST-HA1200R-PM
Description
The Silverstone HELA 1200R Platinum power supply unit, in its black 1200 W version, delivers a combined power of 1200 W on the +12 V rail with a maximum output current of 100 A. With ATX form factor and a 20+4 pin main connector, it incorporates protection against overcurrent, overvoltage, overvoltage, overheating, short circuit and undervoltage. Its 88% efficiency is complemented by active power factor correction and an AC input voltage of 90 to 264 V, making it versatile for different electrical networks. It features a 4+4 pin EPS connector, three 4-pin Molex peripheral connectors and a floppy disk drive connector, covering standard configuration needs.
Specifications
Power
- Total power: 1200 W
- AC input voltage: 90 - 264 V
- AC input frequency: 47 - 63 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 1200 W
- Combined power (+5V): 120 W
- Max output current (+3.3V): 22 A
- Max output current (+12V): 100 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 88%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

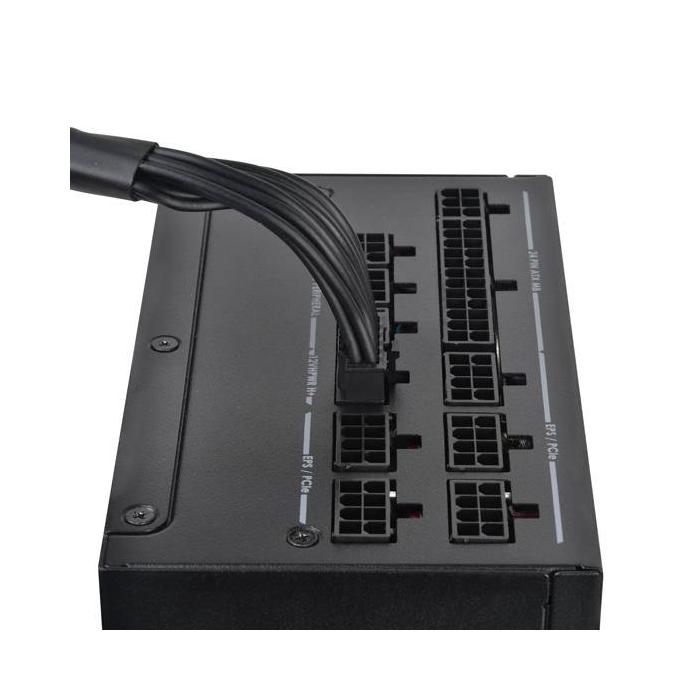

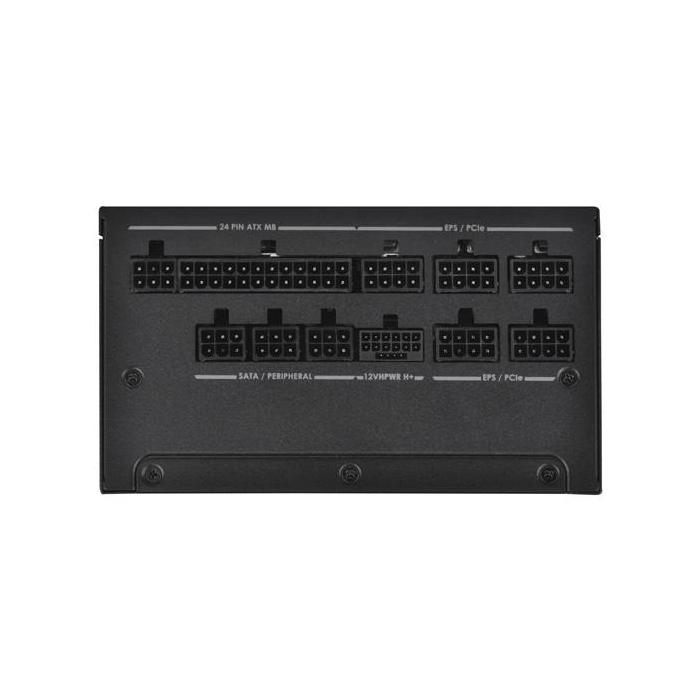

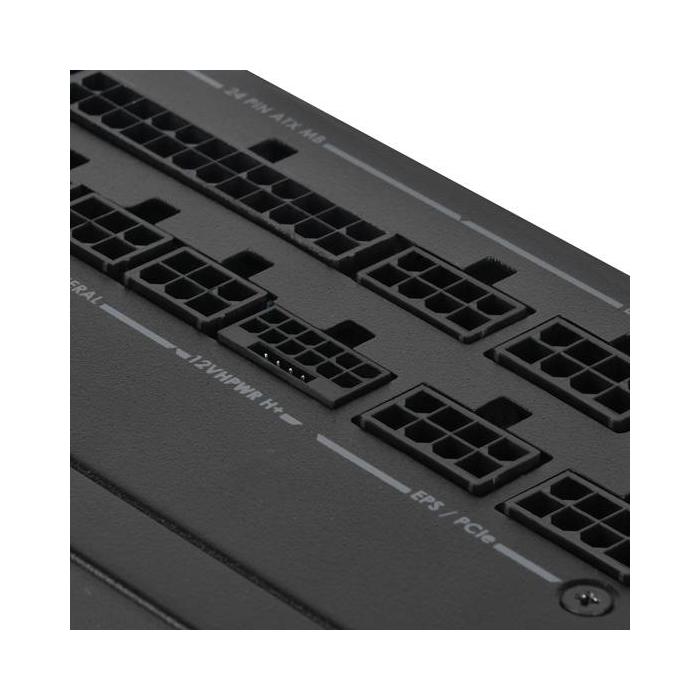

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 12
- Peripheral (Molex) power connectors (4-pin): 3
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (8-pin): 6
- CPU P4 connector (4-pin): 2
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 10 cm
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

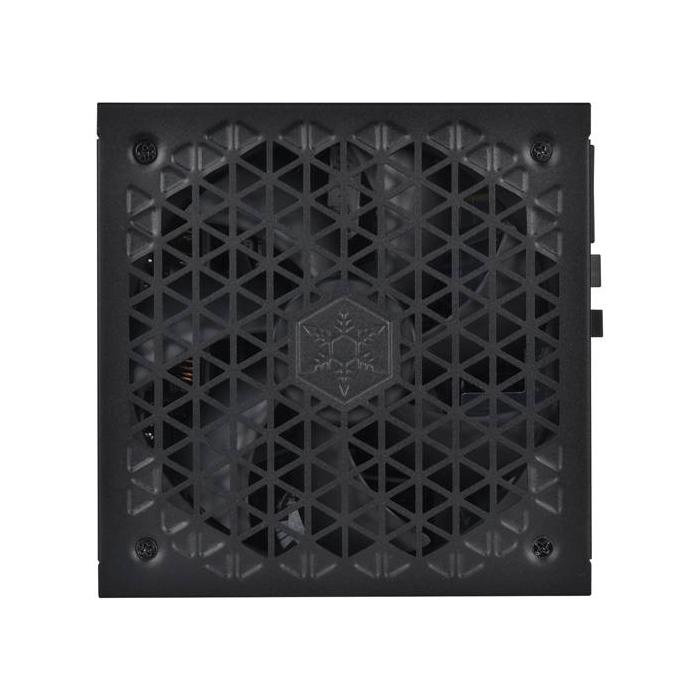

- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)

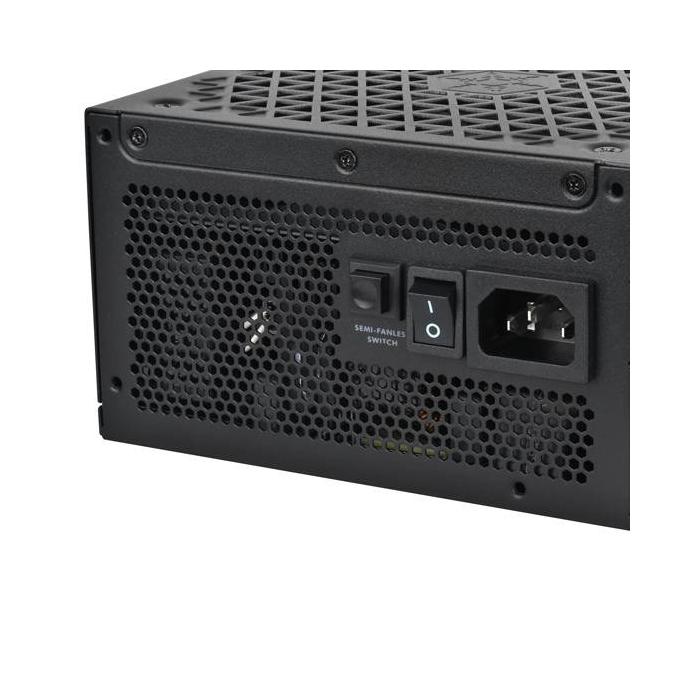

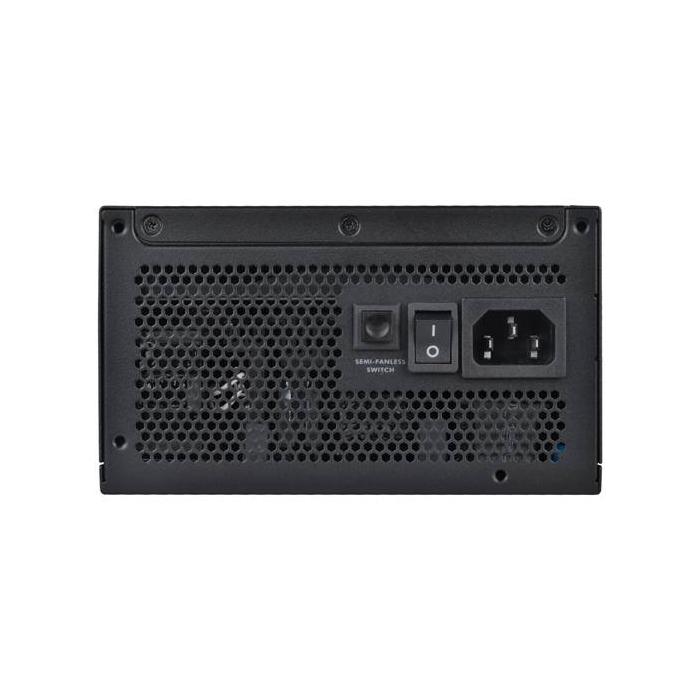

- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 150 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 2.9 kg
