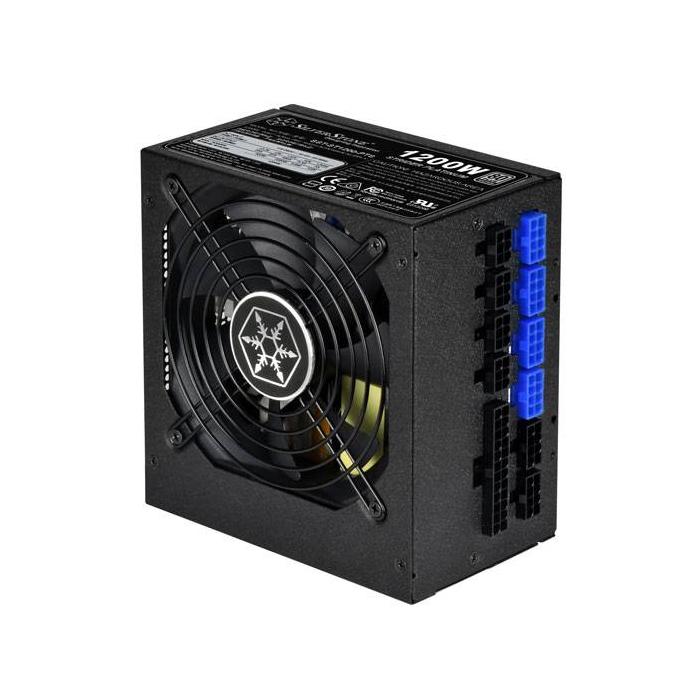

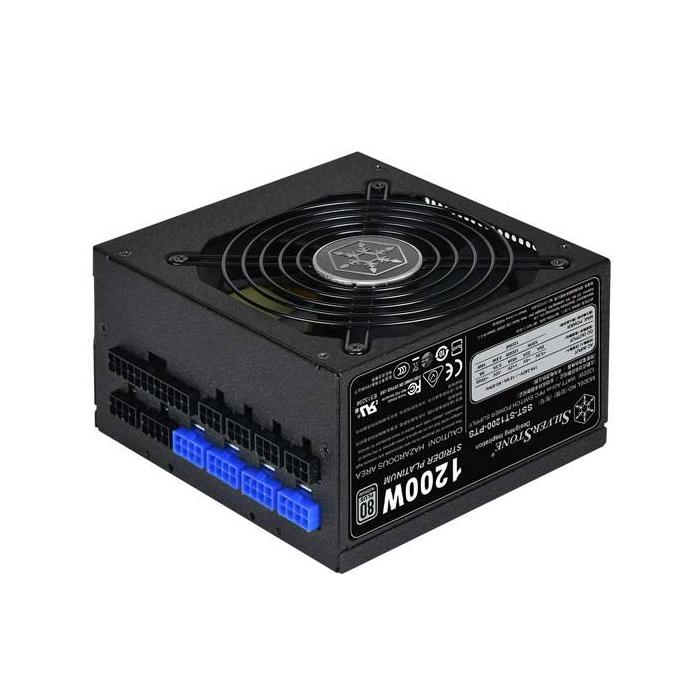

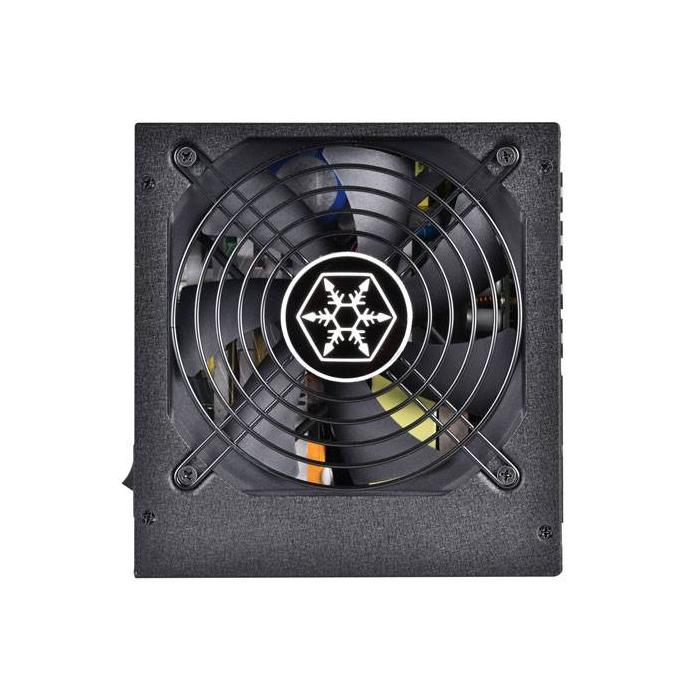

Silverstone ST1200-PTS power supply unit 1200 W 20+4 pin ATX ATX Black
More info
Brand: SILVERSTONE
266.56 €
220.30 €
without VAT
Stock available: 1 ud.
Get it
on the
August 28
/
August 31
SKU:
114318
PRC:
310556
EAN:
4710007226582
PN:
sst-st1200-pts
Description

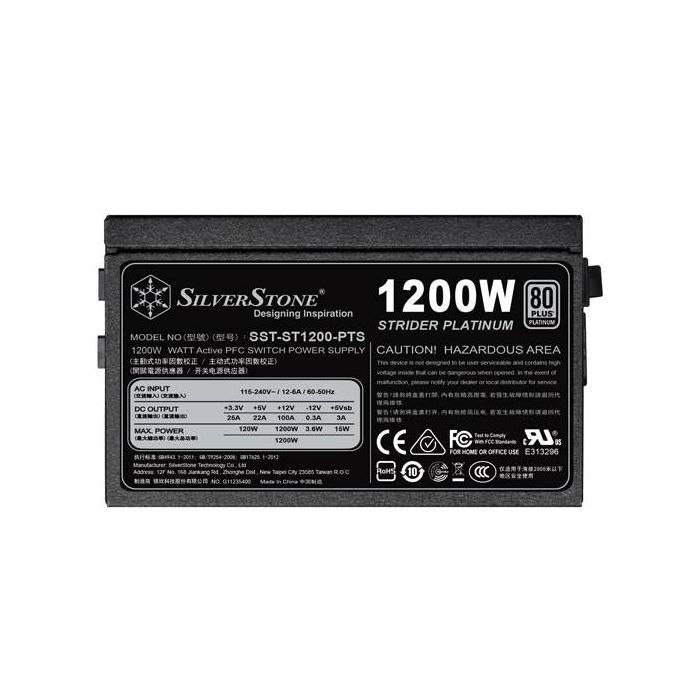

The Silverstone ST1200-PTS power supply, in its black finish, delivers 1200 W of total power with a single +12V rail capable of supplying up to 100 A, ideal for demanding configurations. Its 92% efficiency is combined with active power factor correction and full protection against overcurrent, overvoltage, overheating, short circuit and undervoltage. With fully modular cabling, it includes a 4+4 pin EPS connector and a 60 cm motherboard cable, as well as support for a floppy disk drive. It accepts an input range of 100-264 V and frequencies of 47-63 Hz, making it easy to integrate into different environments. It manages maximum currents of 25 A on +3.3V, 22 A on +5V and 3 A on +5Vsb, with combined power of 120 W on both secondary lines.
Specifications
Power
- Total power: 1200 W
- AC input voltage: 100 - 264 V
- AC input frequency: 47 - 63 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 1200 W
- Combined power (+5V): 120 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 100 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 92%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

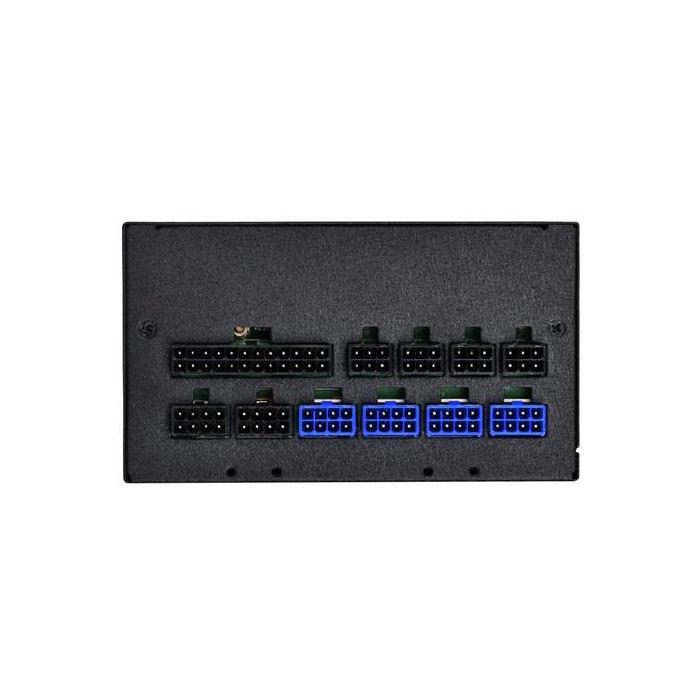

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 8
- SATA power cable length: 150, 600 mm
- Peripheral (Molex) power connectors (4-pin): 6
- Peripheral (Molex) power cable length: 150, 600 mm
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 8
- PCI Express power cable length: 55 cm
- Floppy drive power connector: 2
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 15 cm
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Noise level: 18 dB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
- Weight: 2 kg
Logistics data
- Harmonized System (HS) code: 84733020
