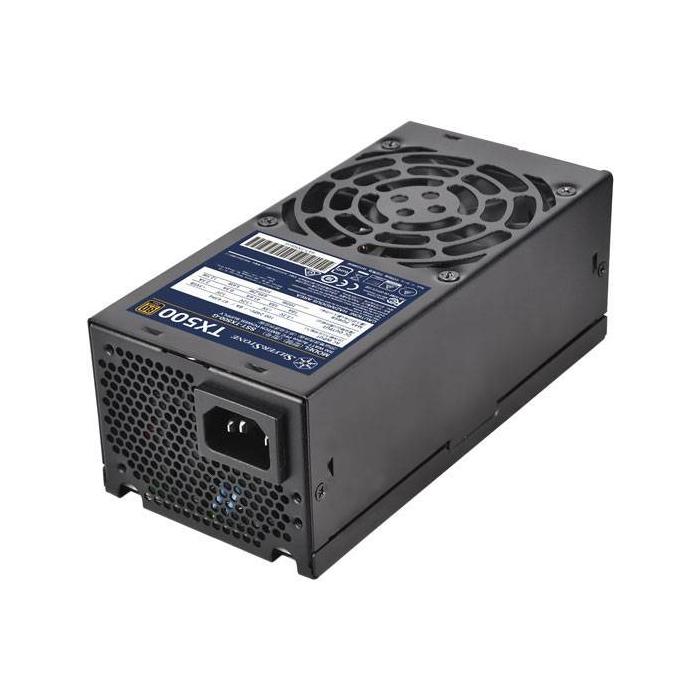

Silverstone TX500 Gold power supply unit 500 W 20+4 pin ATX TFX Black
More info
Brand: SILVERSTONE
121.52 €
100.43 €
without VAT
Stock available: 21 units.
Get it
on the
September 1
/
September 2
SKU:
92752
PRC:
366529
EAN:
4710679810454
PN:
sst-tx500-g
Description
Silverstone TX500 Gold power supply unit with TFX form factor in a black finish, designed to deliver 500 W of total power with active power factor correction and a power factor of 0.9. It includes a 20+4 pin ATX main connector, as well as 4+4 pin CPU power and floppy disk drive support, with non-modular cabling. Its outputs provide up to 41.6 A on the +12 V line, with protection against overcurrent, overvoltage, surge, overheating, short circuit and undervoltage. It operates with an AC input voltage of 90 to 264 V and a frequency of 47 to 63 Hz, integrating safety functions for demanding environments.
Specifications
Power
- Total power: 500 W
- AC input voltage: 90 - 264 V
- AC input frequency: 47 - 63 Hz
- Power factor: 0.9
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 499.2 W
- Combined power (+5V): 100 W
- Max output current (+3.3V): 18 A
- Max output current (+12V): 41.6 A
- Max output current (+5V): 18 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 35 cm
- Number of SATA power connectors: 4
- Peripheral (Molex) power connectors (4-pin): 2
- PCI Express power connectors (6+2 pin): 1
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 45 cm
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: TFX
- ATX version: 2.4
- Noise level: 18 dB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 8 cm
- Number of fans: 1 fan(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 85 mm
- Depth: 175 mm
- Height: 65 mm
- Weight: 1.38 kg
Logistics data
- Quantity per pack: 1 pc(s)
- Harmonized System (HS) code: 84733020
