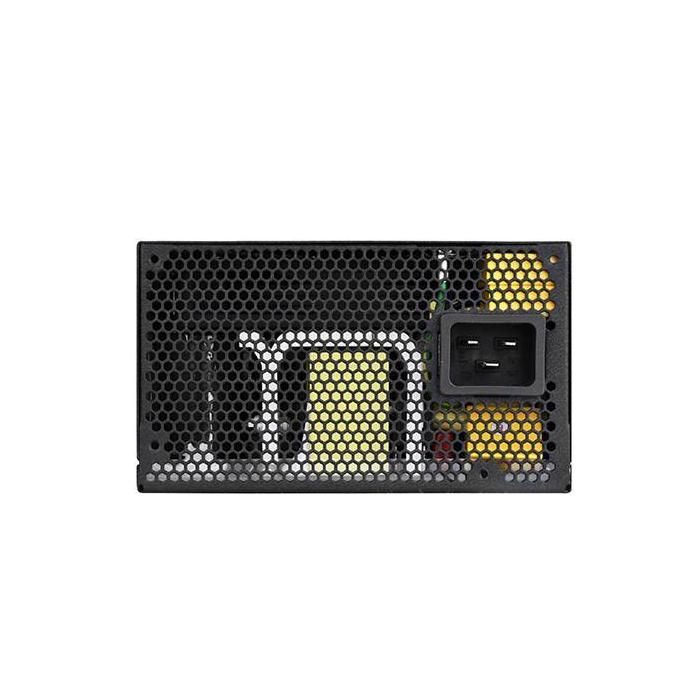

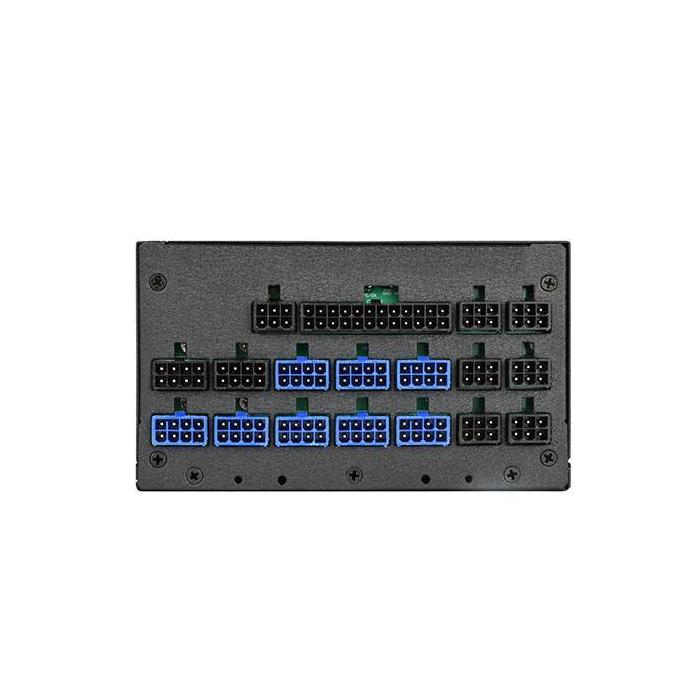

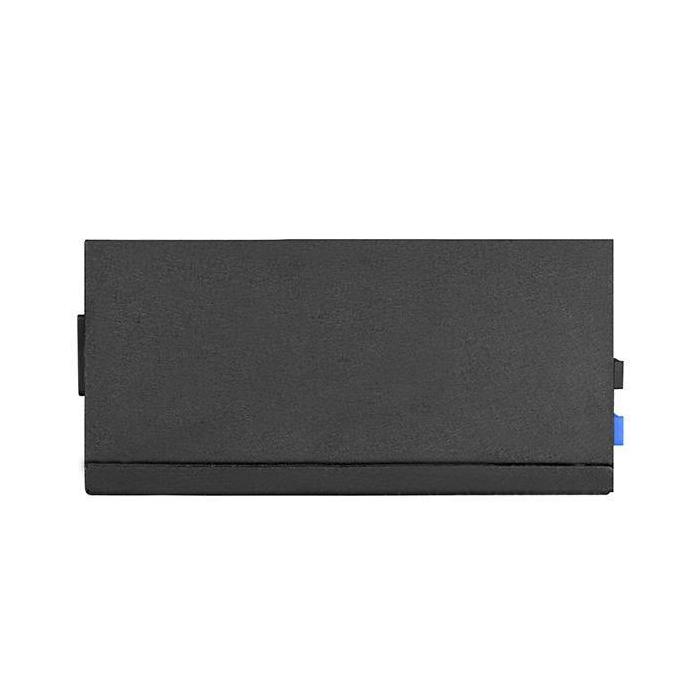

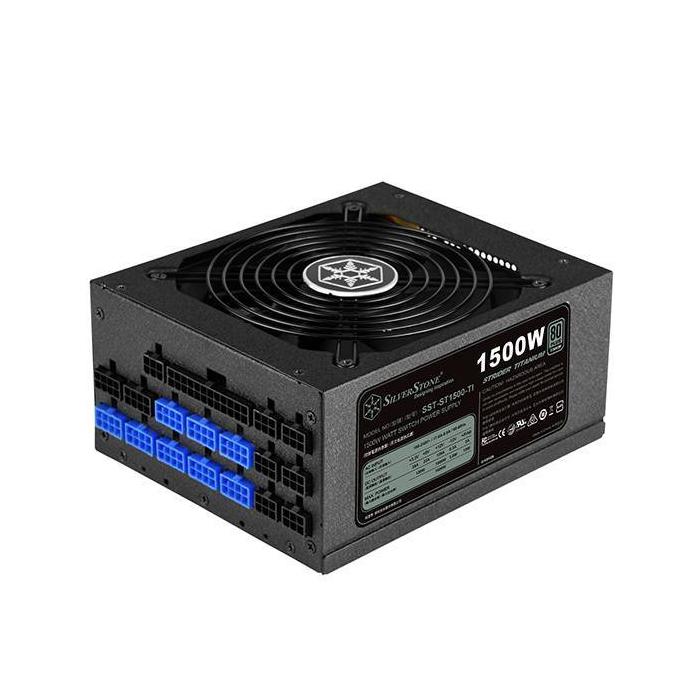

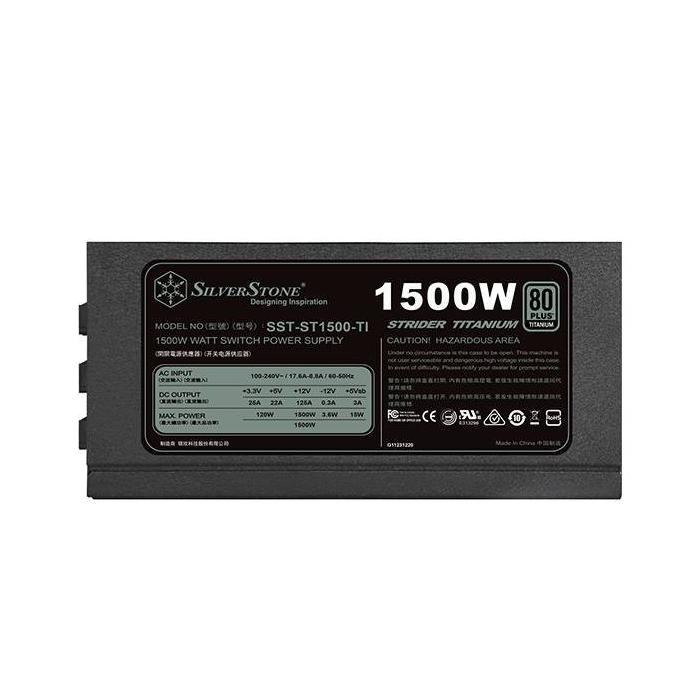

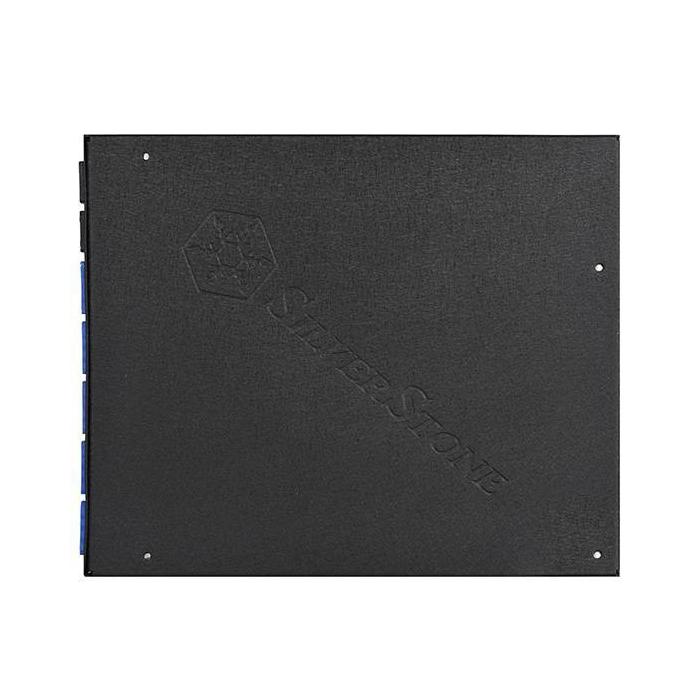

Silverstone ST1500-TI power supply unit 1500 W 20+4 pin ATX ATX Black

$408.48
$408.48 without VAT

More info

Brand: SILVERSTONE
SKU: 80008 PRC: 196172 EAN: 4710007225240 PN: SST-ST1500-TI

Description

Specifications

Power

  • Total power: 1500 W
  • Peak power: 1600 W
  • AC input voltage: 90 - 264 V
  • AC input frequency: 47 - 63 Hz
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 120 W
  • Combined power (+12V): 1500 W
  • Combined power (+5V): 120 W
  • Max output current (+3.3V): 25 A
  • Max output current (+12V1): 125 A
  • Max output current (+5V): 22 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Efficiency: 94%
  • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 55 cm
  • Number of SATA power connectors: 16
  • SATA power cable length: 150, 600 mm
  • Peripheral (Molex) power connectors (4-pin): 6
  • Peripheral (Molex) power cable length: 150, 600 mm
  • PCI Express power connectors (6+2 pin): 8
  • PCI Express power cable length: 55 cm
  • CPU power connector (4+4 pin): Yes
  • ATX power connector (20+4 pin): Yes
  • Floppy drive power connector: 1
  • Floppy disk drive connector: Yes
  • Floppy disk drive cable length: 10 cm
  • PCI Express connector: Yes
  • Cabling type: Fully-Modular

Performance

  • 80 PLUS certification: 80 PLUS Titanium
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 2.4
  • Noise level: 36 dB
  • Mean time between failures (MTBF): 100000 h

Design

  • Product colour: Black
  • Fan diameter: 13.5 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C

Weight & dimensions

  • Width: 150 mm
  • Depth: 180 mm
  • Height: 86 mm
  • Weight: 3.96 kg

Packaging data

  • Package type: Box

Logistics data

  • Harmonized System (HS) code: 84733020
