Silverstone ST85F-PT power supply unit 850 W 20-pin ATX ATX Black
More info
Brand: SILVERSTONE
184.24 €
152.27 €
without VAT
Stock available: 2 units.
Get it
on the
September 1
/
September 2
SKU:
82810
PRC:
263051
EAN:
4710007223260
PN:
sst-st85f-pt
Description

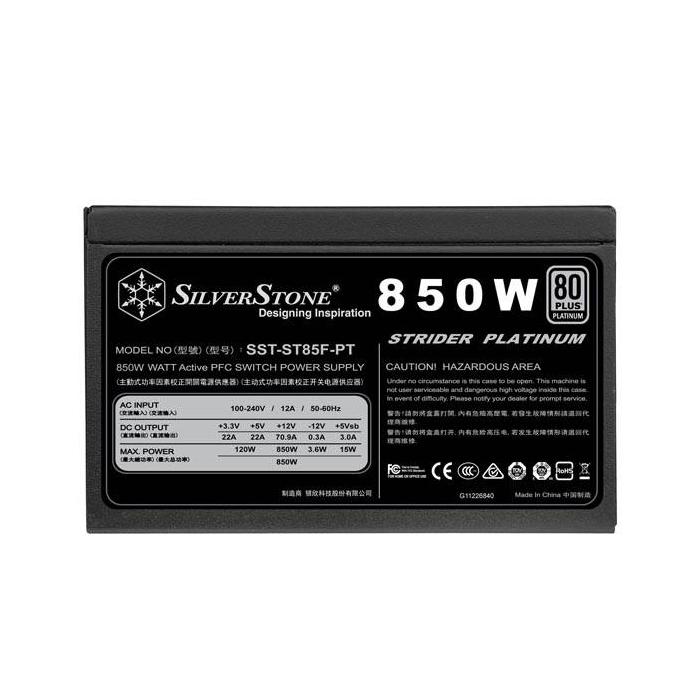

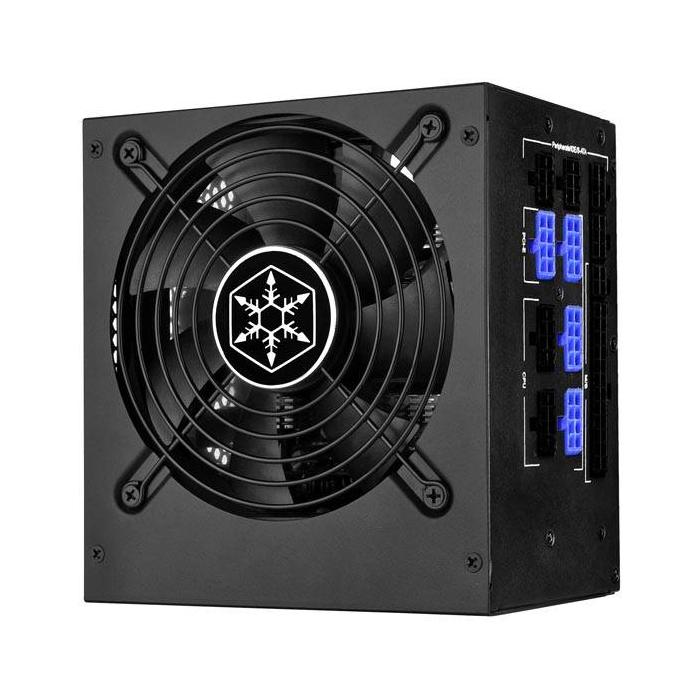

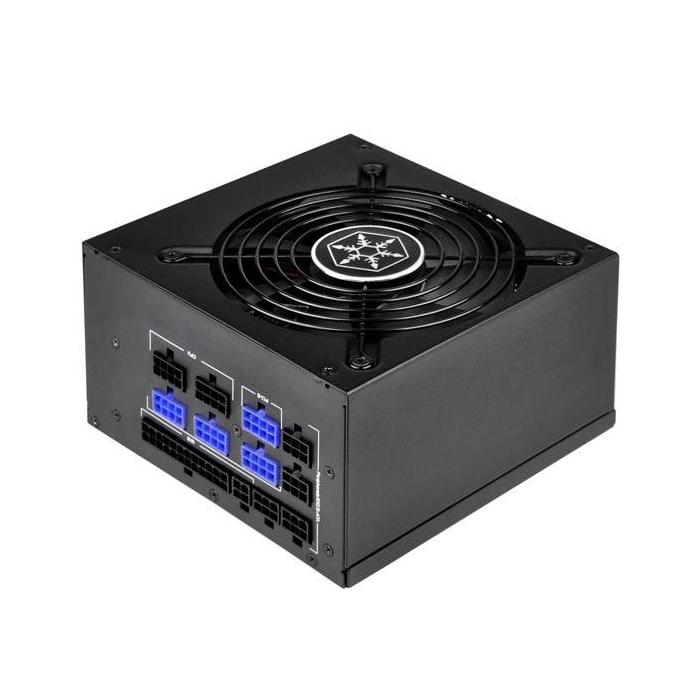

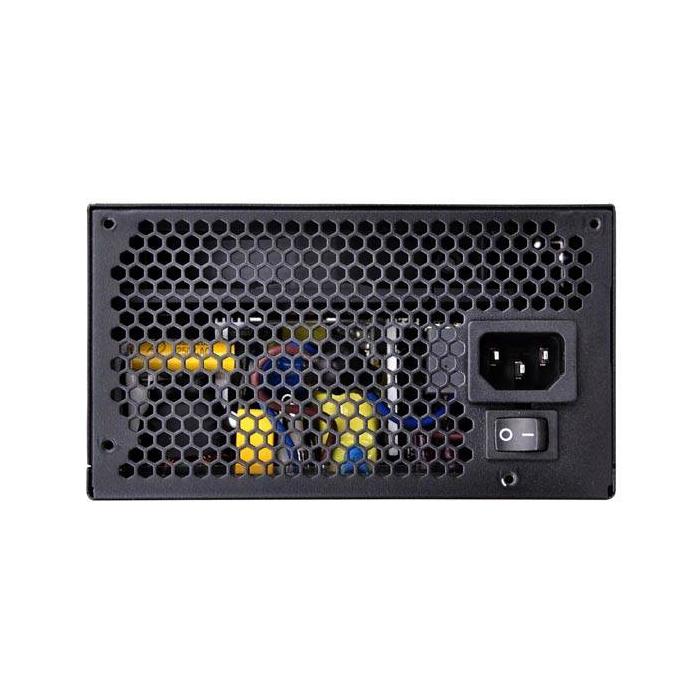

Silverstone ST85F-PT power supply unit with 850 W power and ATX format in black, designed for desktop systems that require a stable supply. It offers 92% efficiency and protection against overcurrent, overvoltage, overheating, short circuit, and undervoltage. Its +12V outputs provide up to 70.9 A, with 22 A on both +3.3V and +5V, and the PCI Express power cable measures 55 cm to facilitate connection in spacious towers. It includes three 4-pin Molex connectors and features active power factor correction, accepting input voltage between 90 and 264 V.
Specifications
Power
- Total power: 850 W
- AC input voltage: 90 - 264 V
- AC input frequency: 50 - 60 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 850 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 22 A
- Max output current (+12V): 70.9 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 92%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

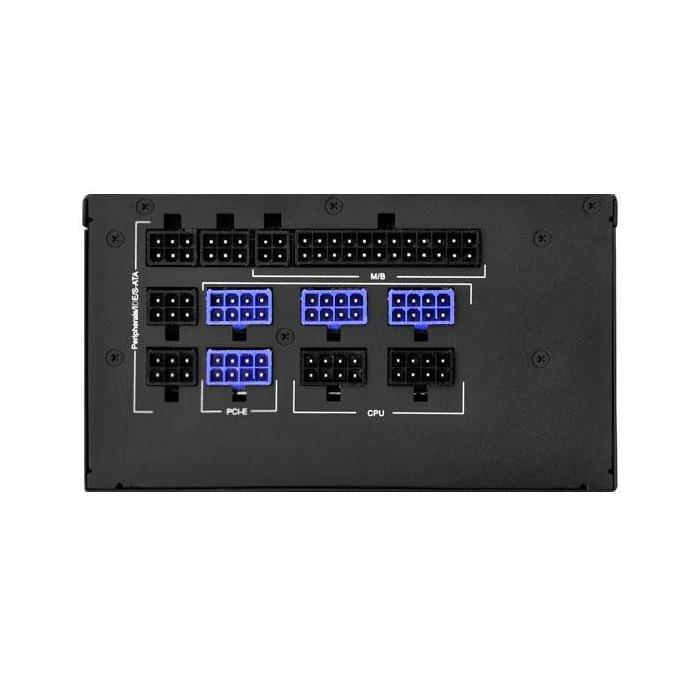

Ports & interfaces
- Motherboard power connector: 20-pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 12
- SATA power cable length: 150 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 150, 600 mm
- EPS power connector (8-pin): Yes
- PCI Express power connectors (6-pin): 4
- PCI Express power cable length: 55 cm
- ATX Power connector (20-pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive cable length: 10 cm
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Noise level: 28 dB
- Mean time between failures (MTBF): 10000 h
Design
- Product colour: Black

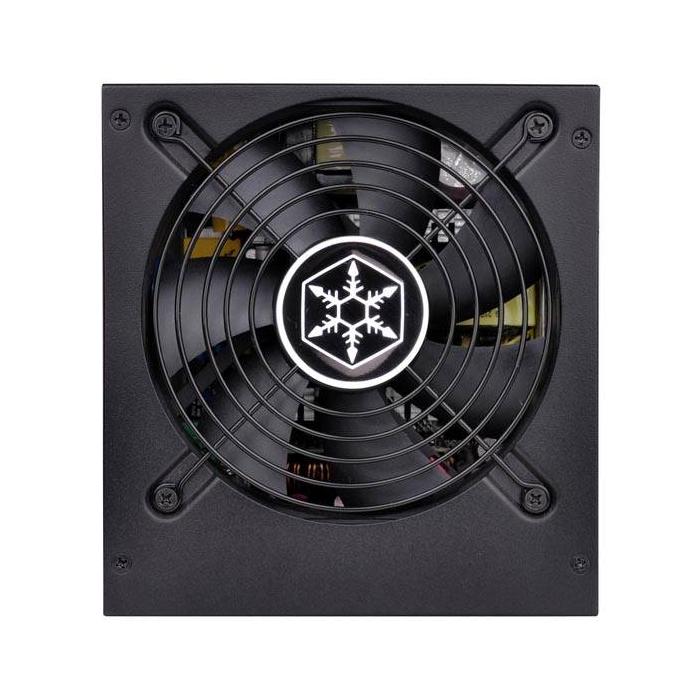

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
- Weight: 2.54 kg
Logistics data
- Harmonized System (HS) code: 84733020
Other features
- PCI Express slots quantity: 4
- Noise level (full-load mode, 100%): 28 dB
- Output power description: 850
- Number of SATA connectors: 12
