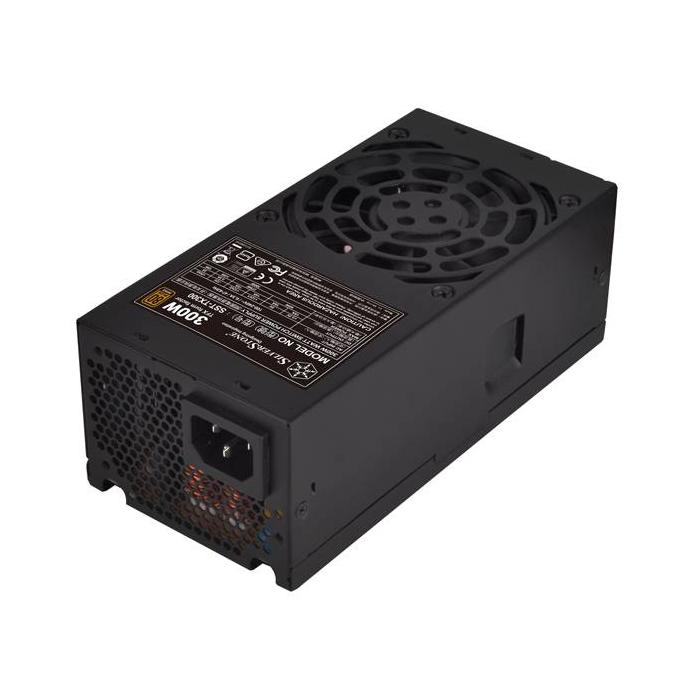

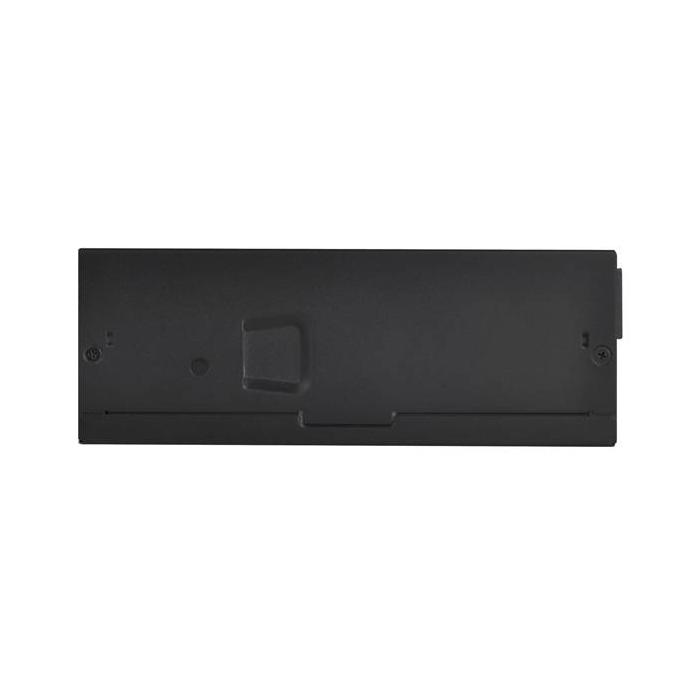

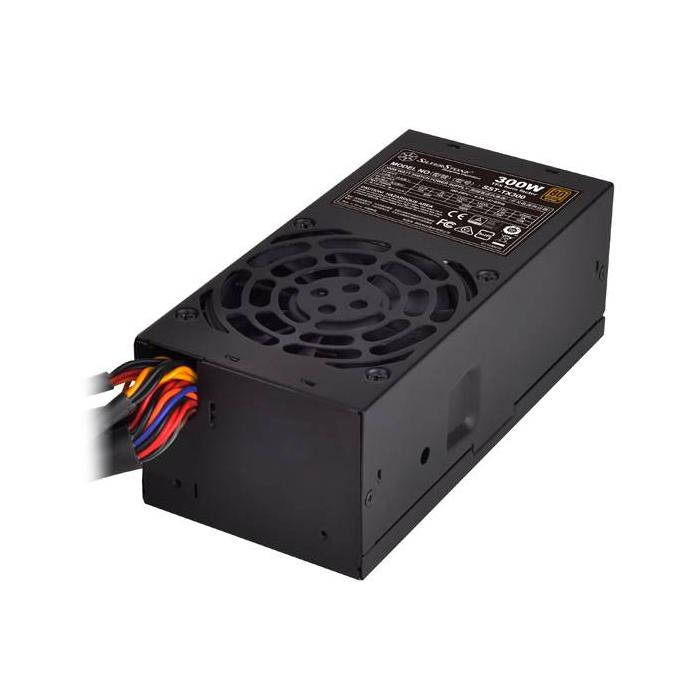

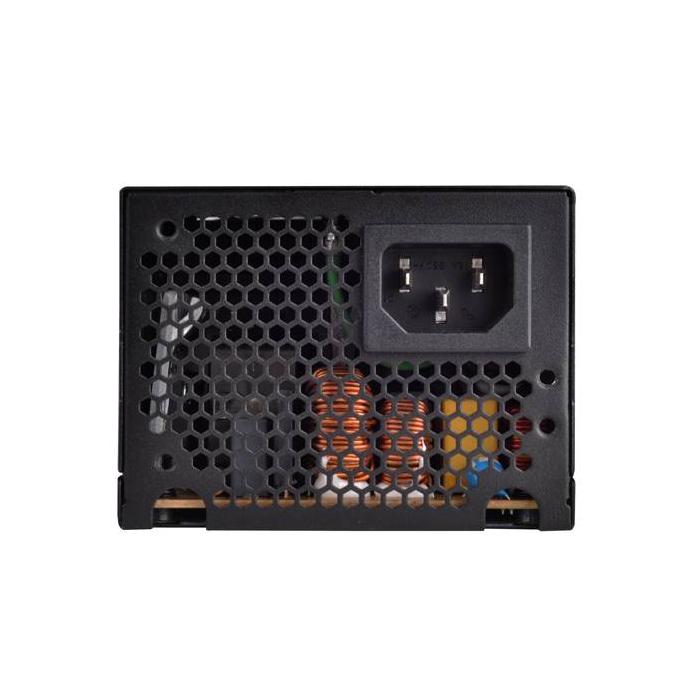

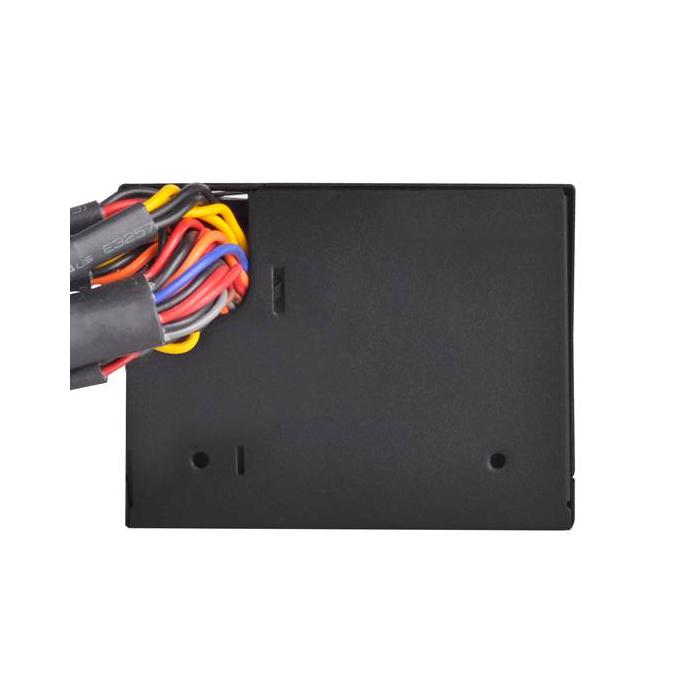

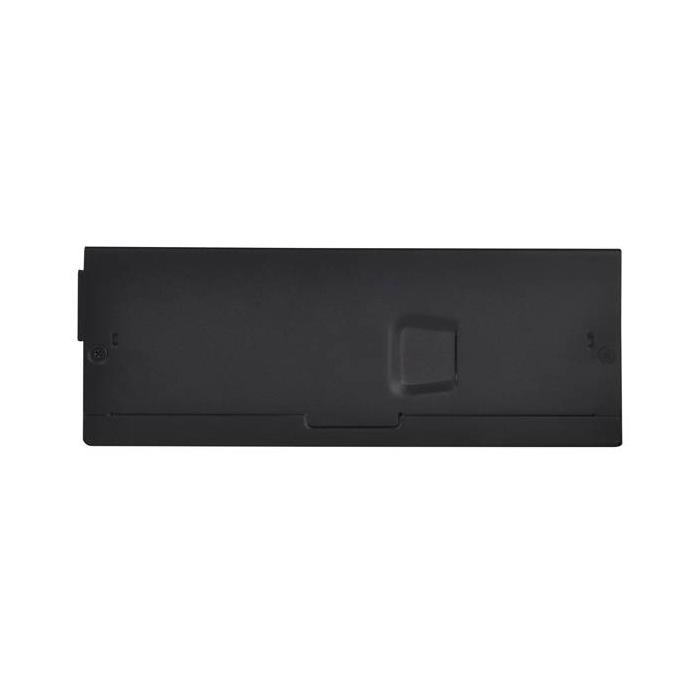

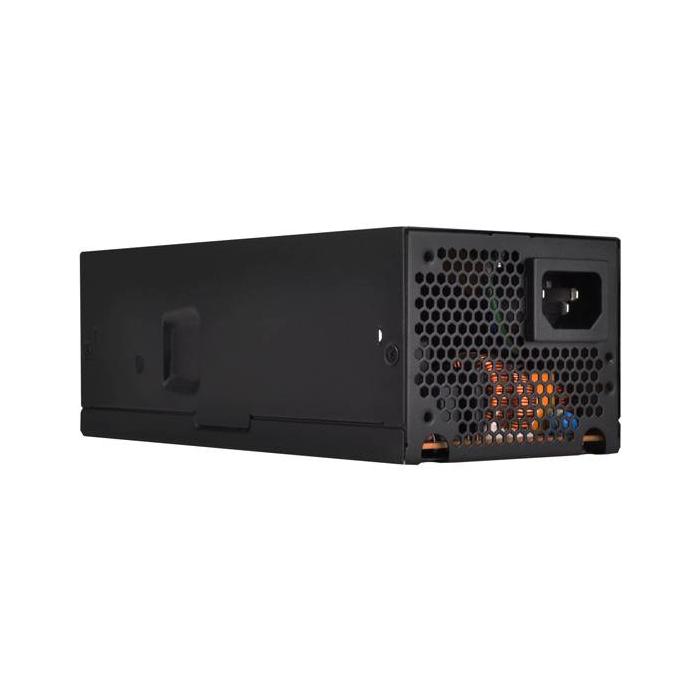

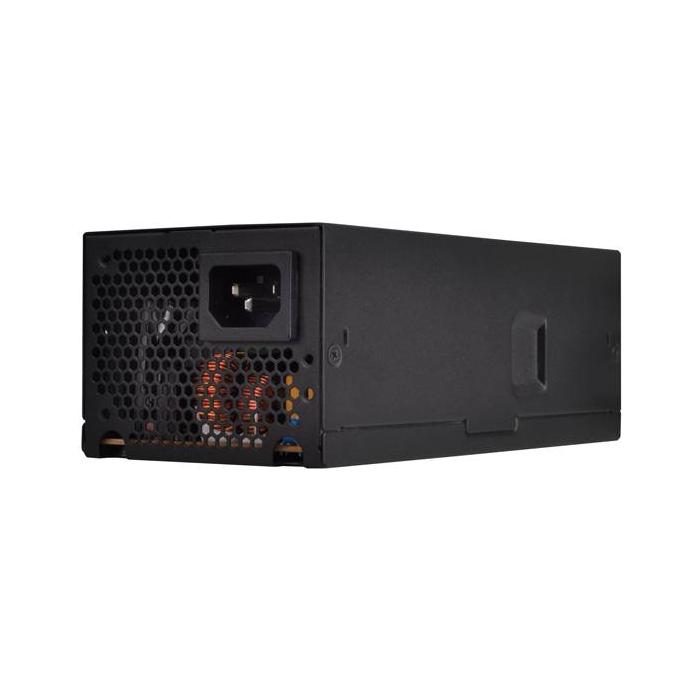

Silverstone TX300 power supply unit 300 W 24-pin ATX TFX Black
More info
Brand: SILVERSTONE
69.58 €
57.50 €
without VAT
Stock available: 4 units.
Get it
on the
September 8
/
September 9
SKU:
88367
PRC:
325178
EAN:
4710007224571
PN:
sst-tx300
Description
The Silverstone TX300 power supply unit, in TFX format with a black finish, delivers 300 W of power with 85% efficiency and active power factor correction. It accepts an AC input voltage of 90 to 264 V with a frequency of 47 to 63 Hz and offers protections against overvoltage, overcurrent and short circuit. Its cabling is non-modular and includes an 8-pin EPS connector, with combined outputs of 276 W on the +12 V rail and 95 W on the +3.3 V and +5 V rails. It provides maximum currents of 14 A and 15 A on the +12 V1 and +12 V2 rails, 15 A on +3.3 V, 16 A on +5 V, 2 A on +5Vsb and 0.3 A on -12 V, with a power factor of 0.9.
Specifications
Power
- Total power: 300 W
- AC input voltage: 90 - 264 V
- AC input frequency: 47 - 63 Hz
- Power factor: 0.9
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 95 W
- Combined power (+12V): 276 W
- Combined power (+5V): 95 W
- Max output current (+3.3V): 15 A
- Max output current (+12V1): 14 A
- Max output current (+12V2): 15 A
- Max output current (+5V): 16 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2 A
- Efficiency: 85%
- Power protection features: Over power, Over voltage, Short circuit
Ports & interfaces
- EPS power connector (8-pin): Yes
- PCI Express power connectors (6-pin): 1
- PCI Express power cable length: 35 cm
- Floppy drive power connector: 1
- Floppy disk drive cable length: 35 cm
- Cabling type: Non-Modular
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 35 cm
- Number of SATA power connectors: 4
- SATA power cable length: 150, 350 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 150, 350 mm
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: TFX
- Noise level: 18 dB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Fan diameter: 8 cm
- Number of fans: 1 fan(s)
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 85 mm
- Depth: 175 mm
- Height: 65 mm
- Weight: 1 kg
Logistics data
- Harmonized System (HS) code: 84733020
