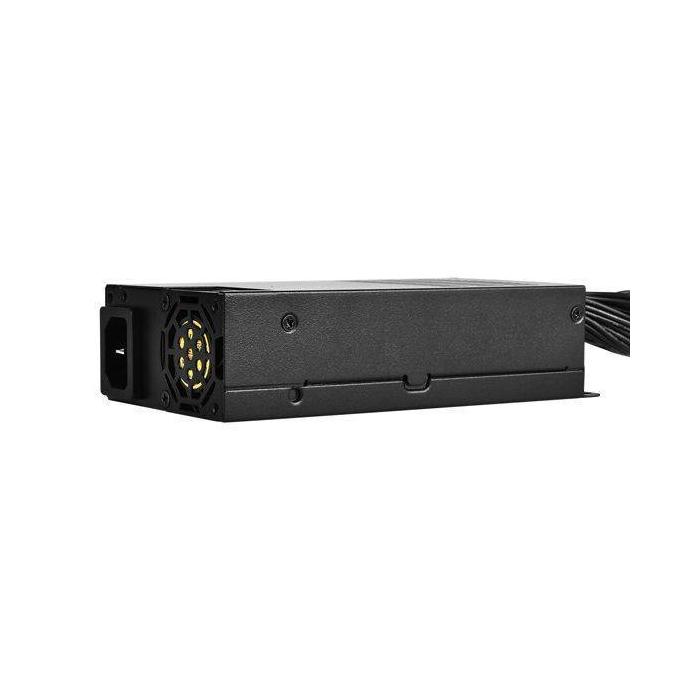

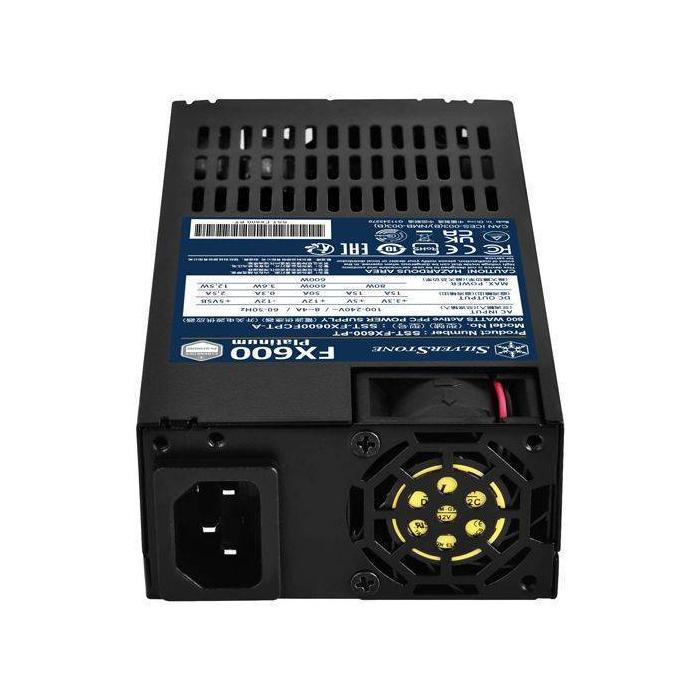

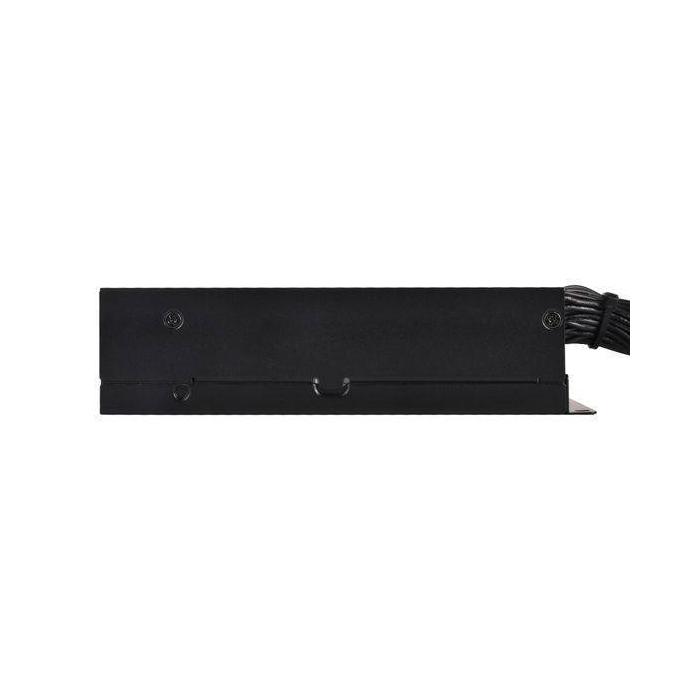

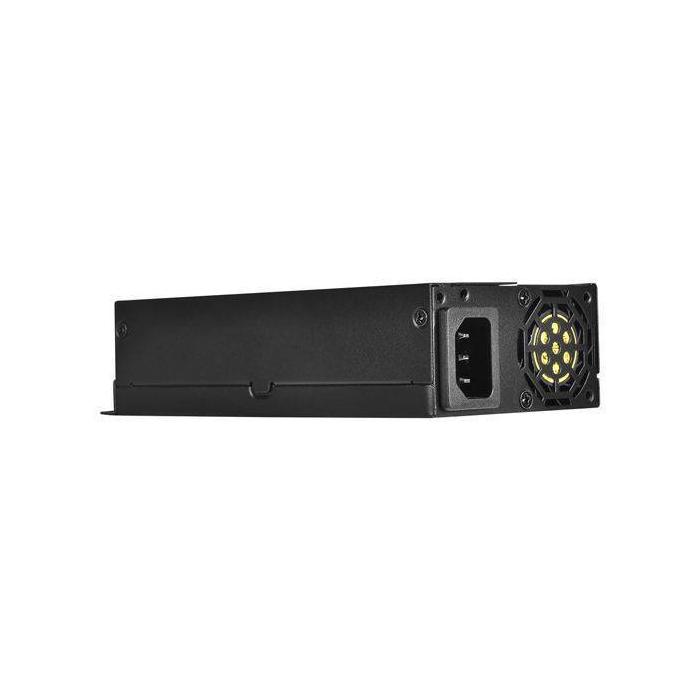

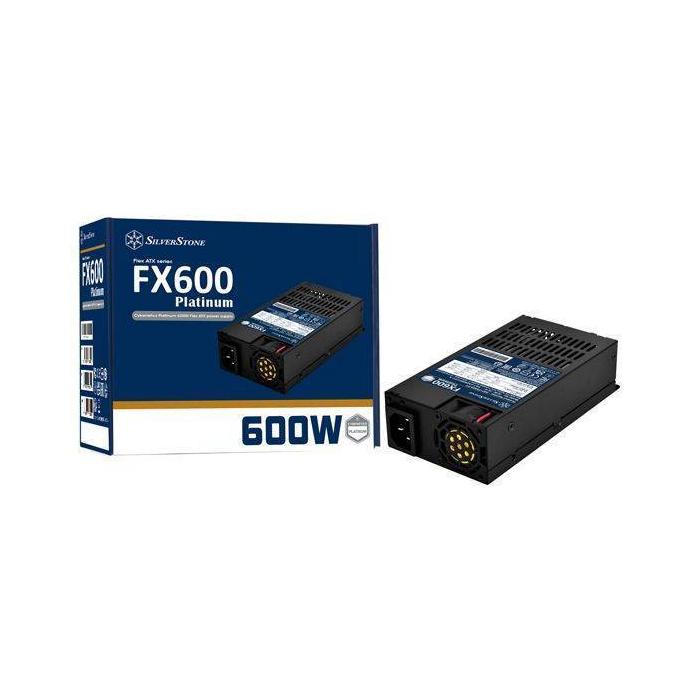

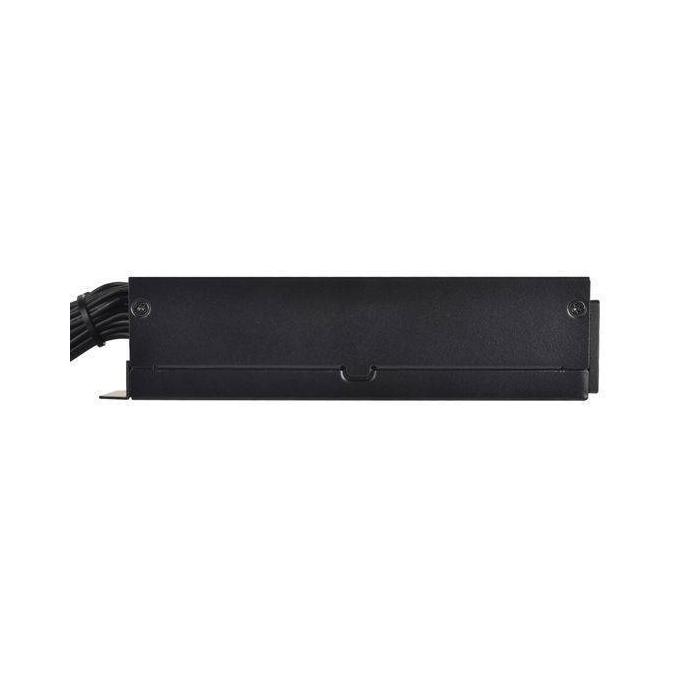

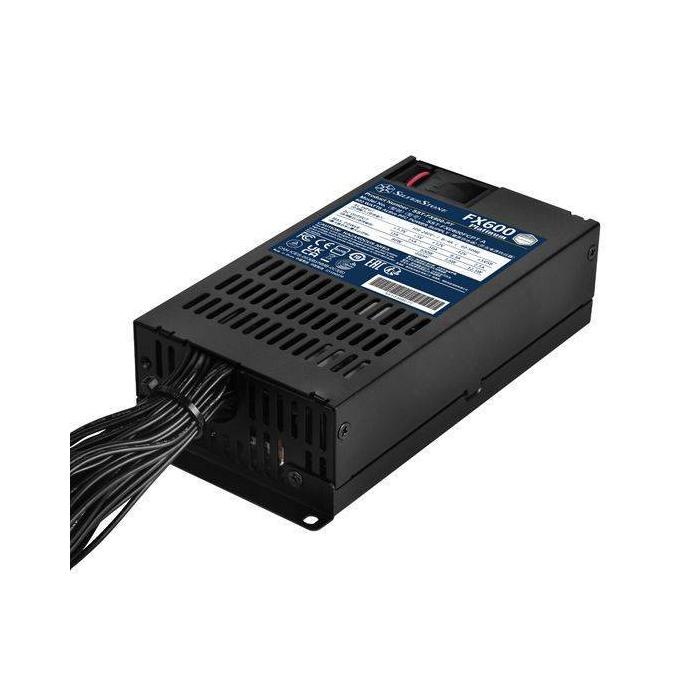

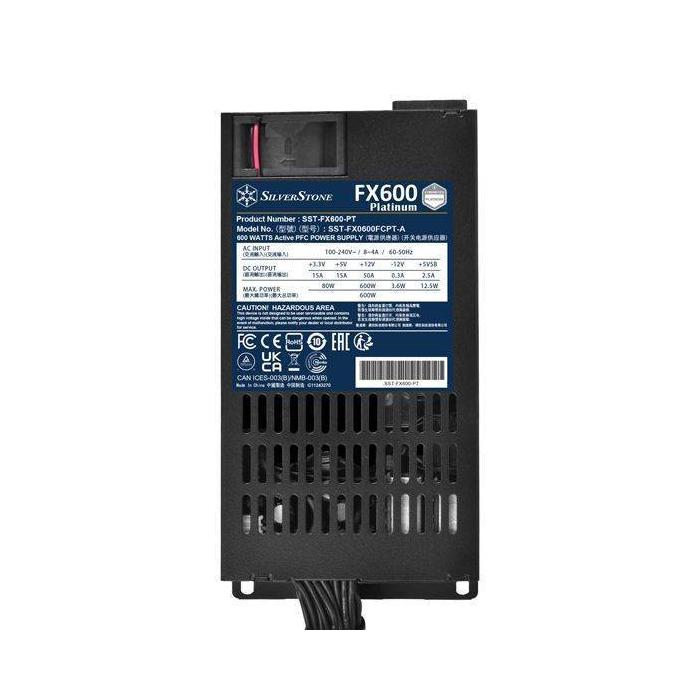

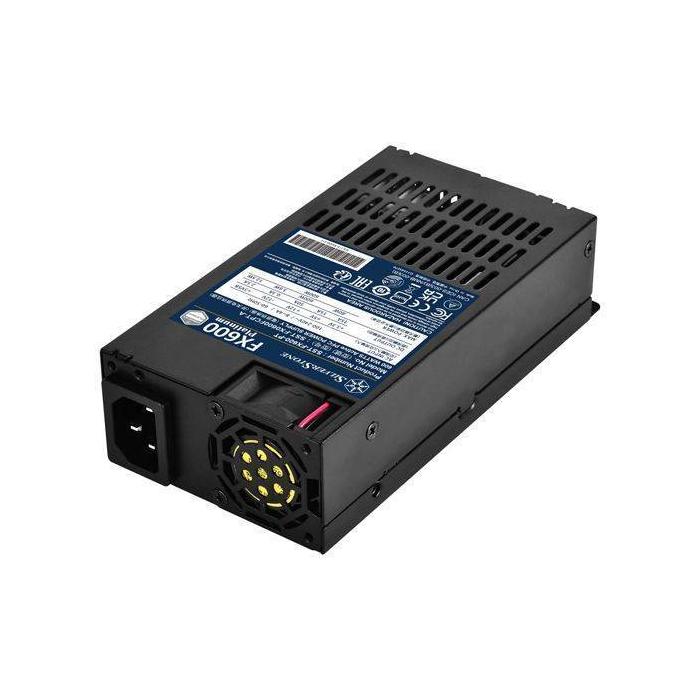

Silverstone FX600 Platinum power supply unit 600 W 20+4 pin ATX Flex ATX Black
More info
Brand: SILVERSTONE
172.48 €
142.55 €
without VAT
Stock available: 7 units.
Get it
tomorrow
/
August 31
SKU:
114354
PRC:
578678
EAN:
4710679813813
PN:
SST-FX600-PT
Description
Silverstone FX600 Platinum power supply unit in Flex ATX format with a black finish, offering a total output of 600 W and a 91% efficiency certification that optimises energy consumption. It features active power factor correction (PFC) and a wide input voltage range from 90 to 264 V, along with protections against overcurrent, overvoltage, overheating and undervoltage to safeguard connected components. Its single +12 V rail delivers up to 50 A, with EPS 4+4 and 8-pin connectors for current motherboards and processors, as well as a floppy disk drive connector. Designed for compact integrations or small-form-factor system upgrades, this PSU ensures stable current delivery and a power factor of 0.9.
Specifications
Power
- Total power: 600 W
- AC input voltage: 90 - 264 V
- AC input frequency: 47 - 63 Hz
- Power factor: 0.9
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 80 W
- Combined power (+12V): 600 W
- Combined power (+5V): 80 W
- Max output current (+3.3V): 15 A
- Max output current (+12V): 50 A
- Max output current (+5V): 15 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 91%
- Power protection features: Over current, Over power, Over voltage, Overheating, Under voltage
Ports & interfaces

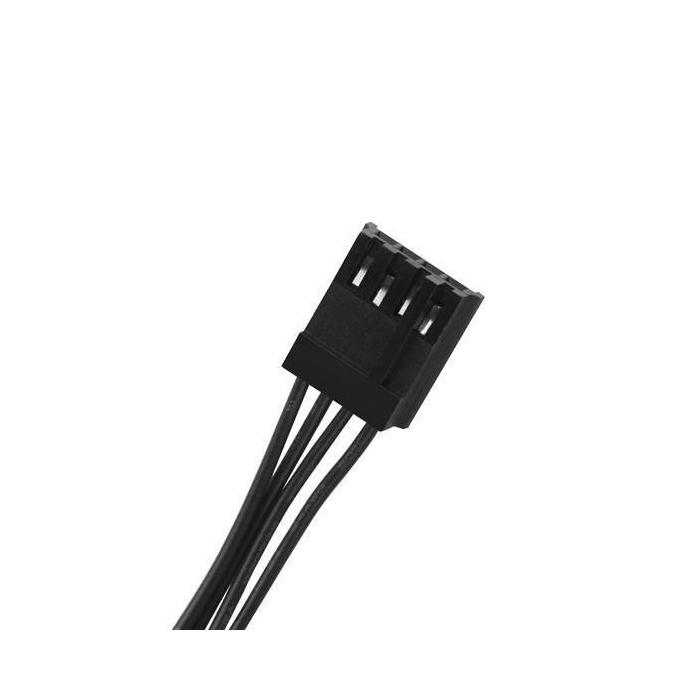

- Floppy drive power connector: 1
- Floppy disk drive connector: Yes

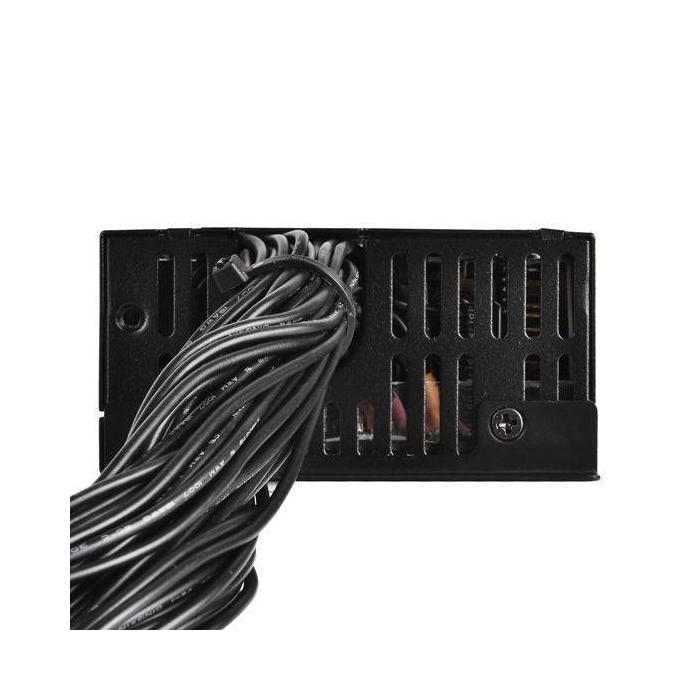

- Cabling type: Non-Modular

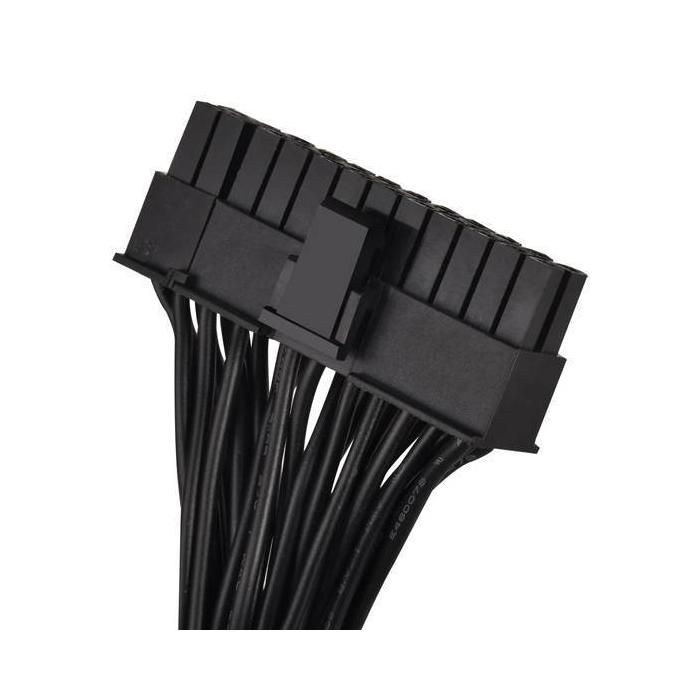

- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 35 cm

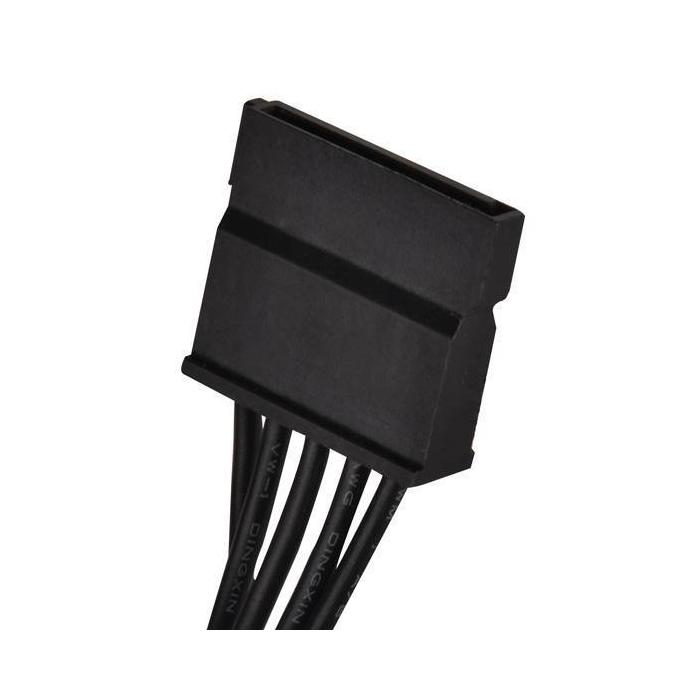

- Number of SATA power connectors: 4
- SATA power cable length: 150, 300 mm

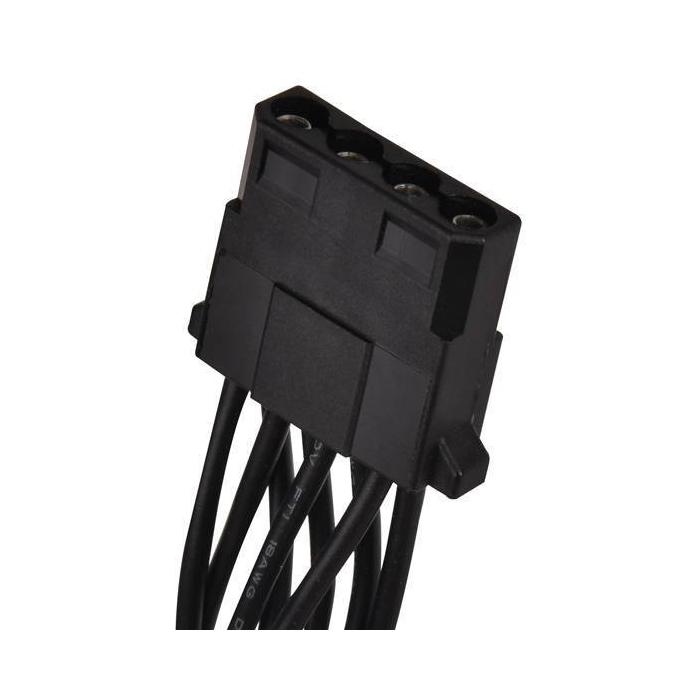

- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 150, 300 mm

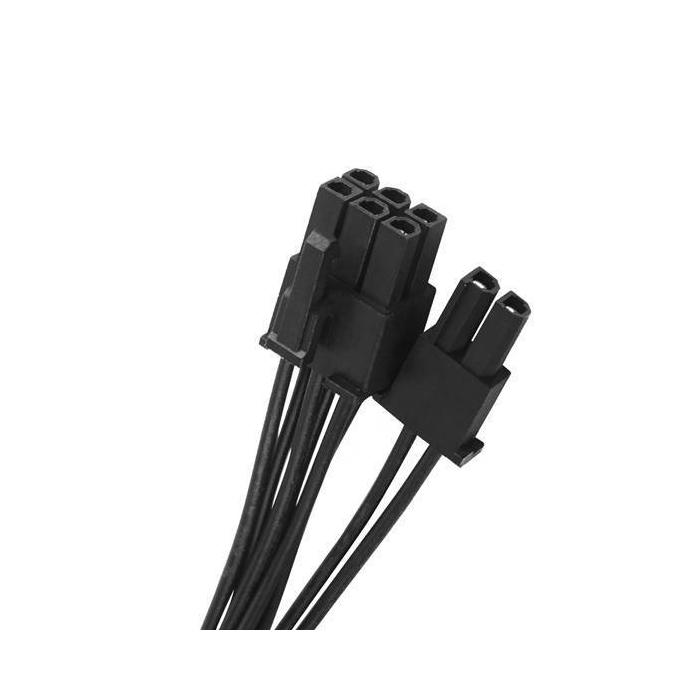

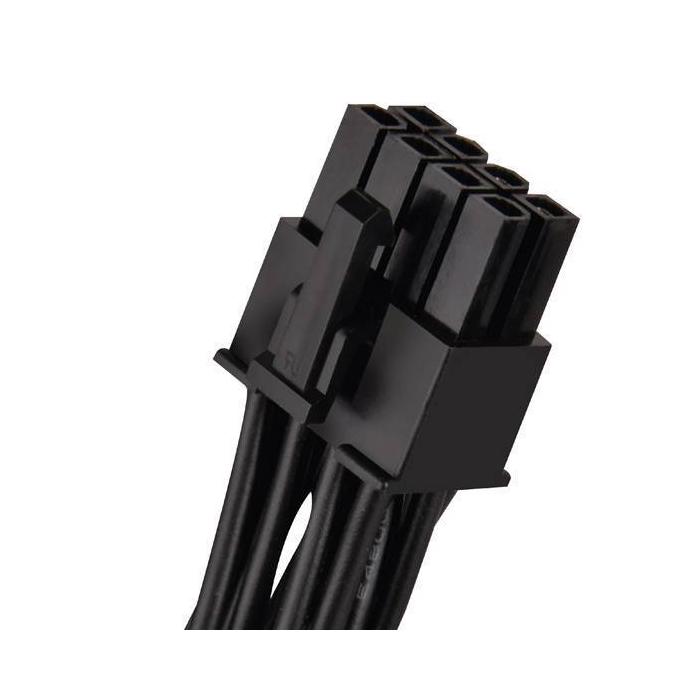

- EPS power connector (8-pin): Yes

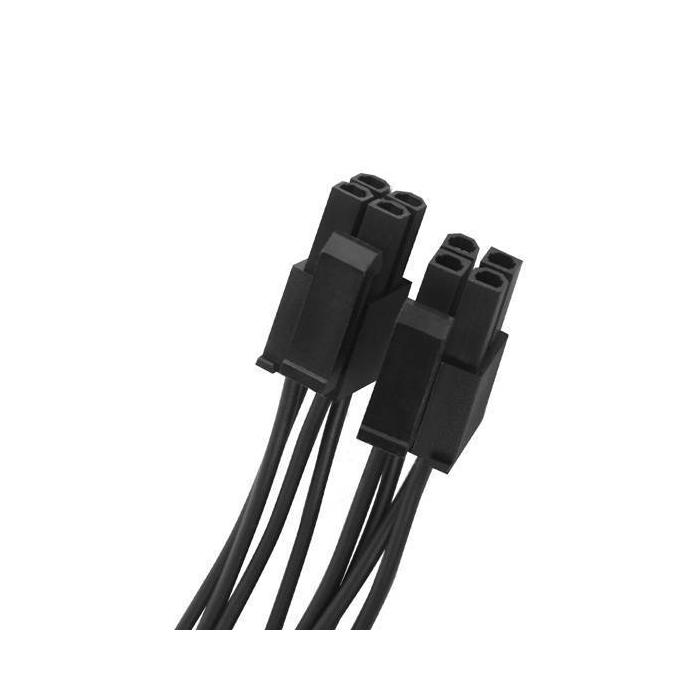

- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 2
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: Flex ATX
- Silent mode: Yes
- Noise level: 20 dB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black

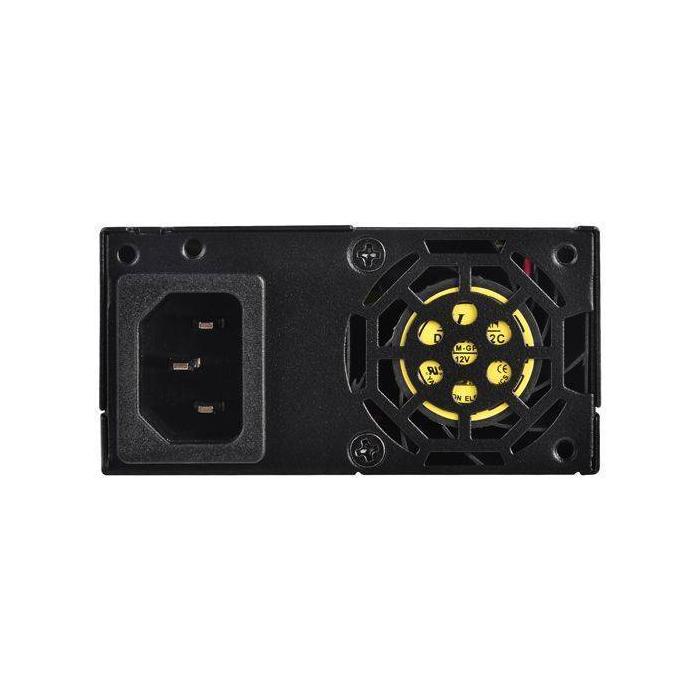

- Cooling type: Active
- Fan diameter: 4 cm
- Number of fans: 1 fan(s)
- Illumination: No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Compliance certificates: CE
- Certification: Cybenetics Platinum
Weight & dimensions
- Width: 81.5 mm
- Depth: 150 mm
- Height: 40.5 mm
- Weight: 1.12 kg
Technical details
- Sustainability compliance: Yes
