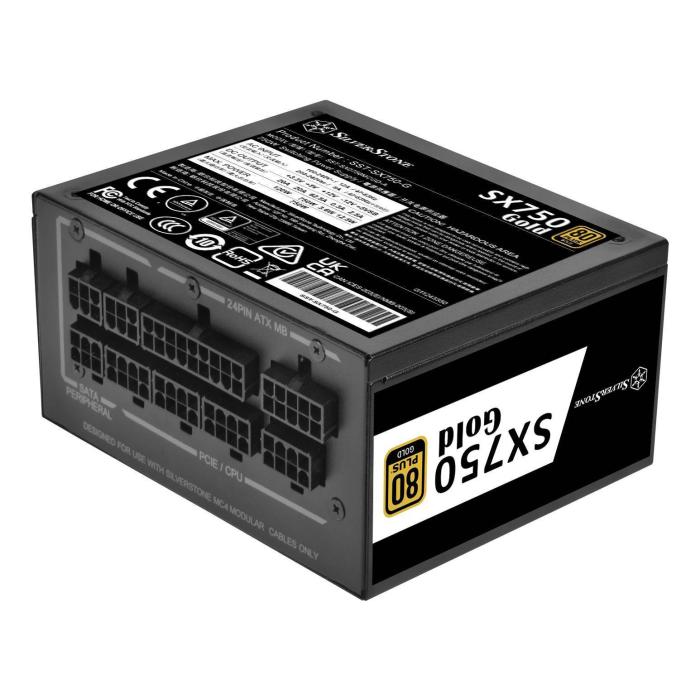

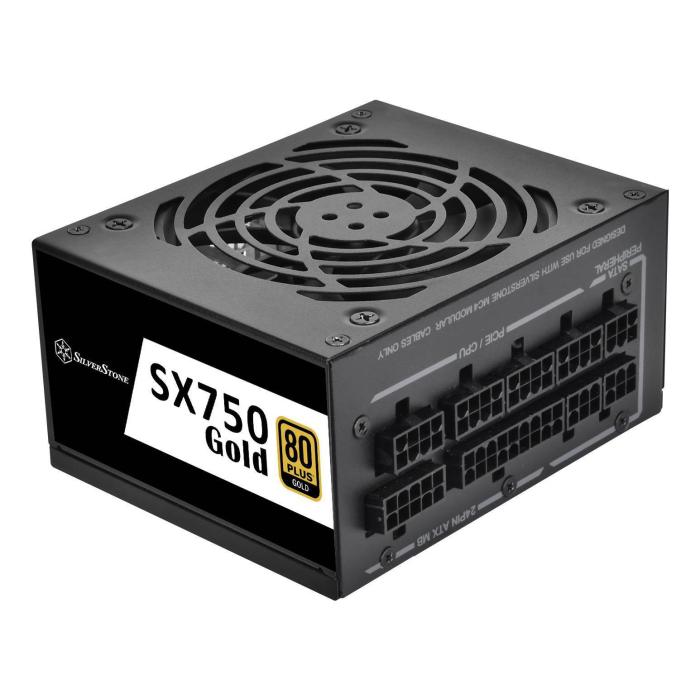

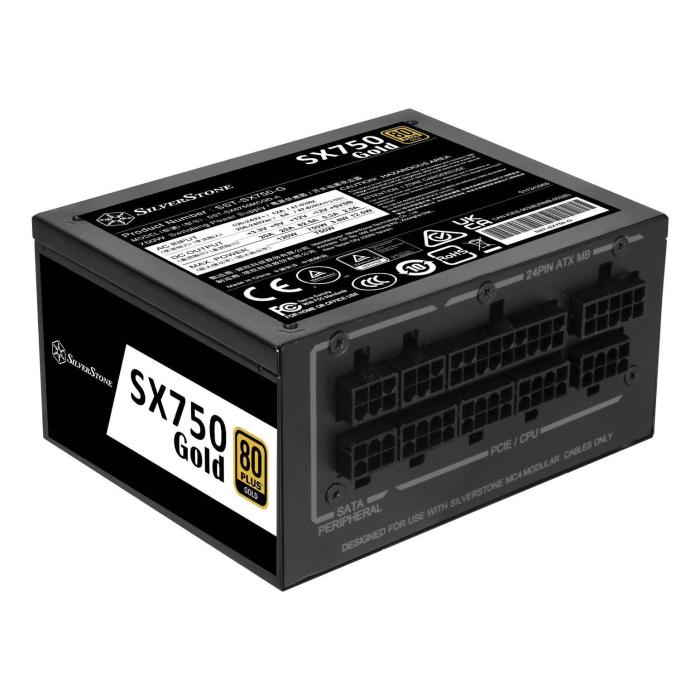

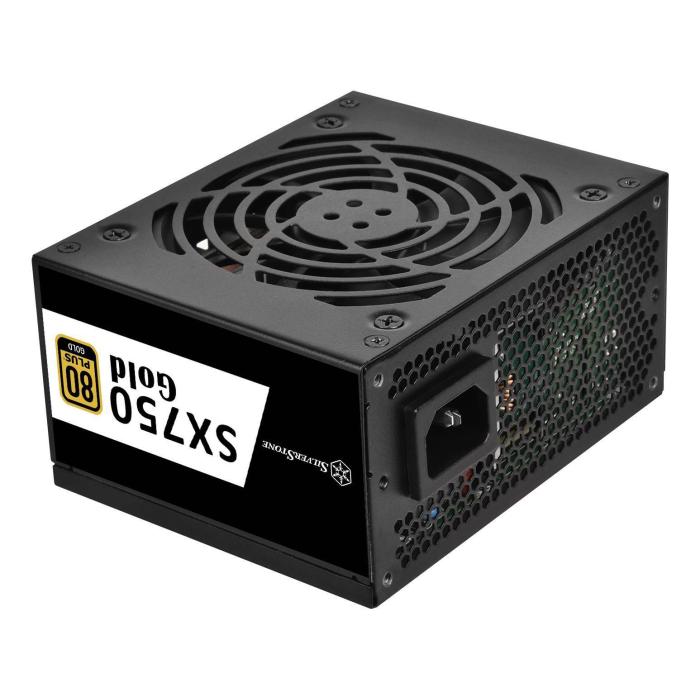

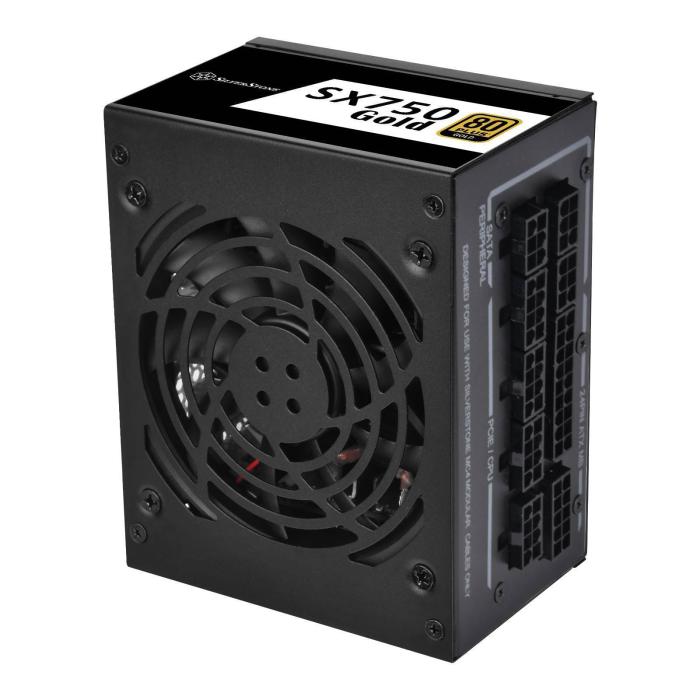

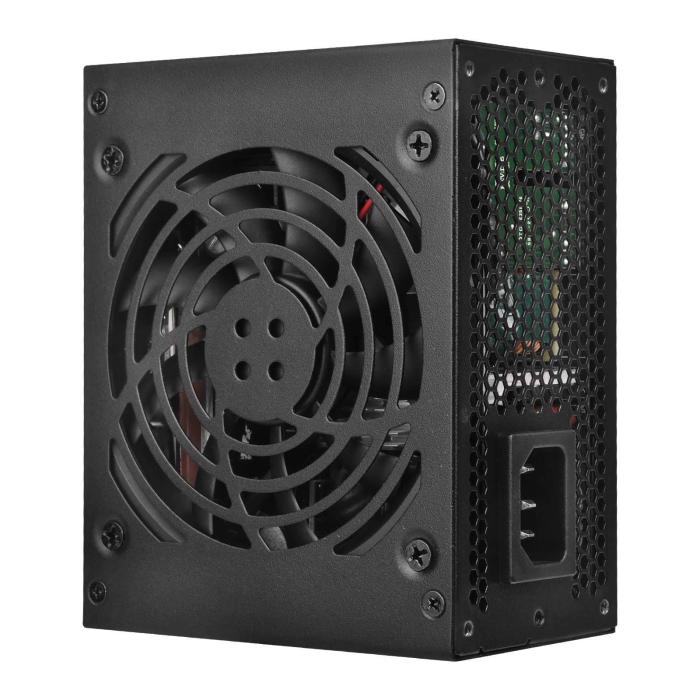

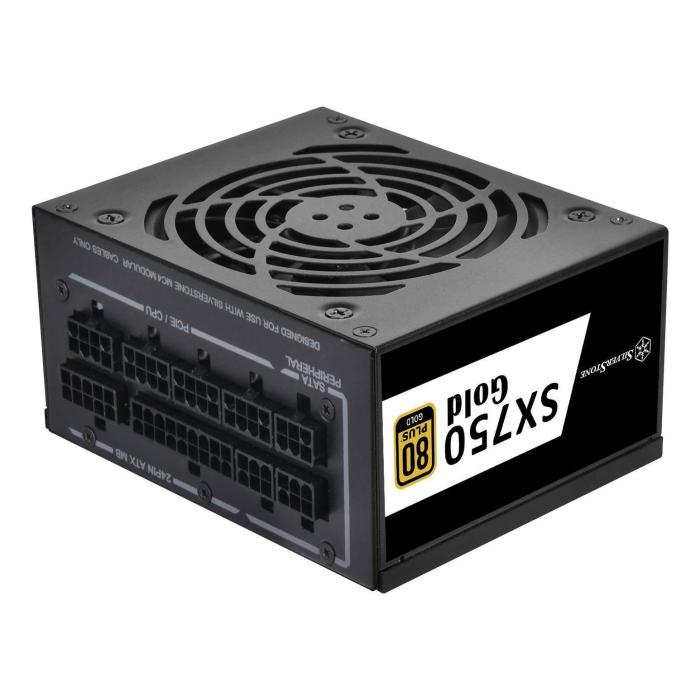

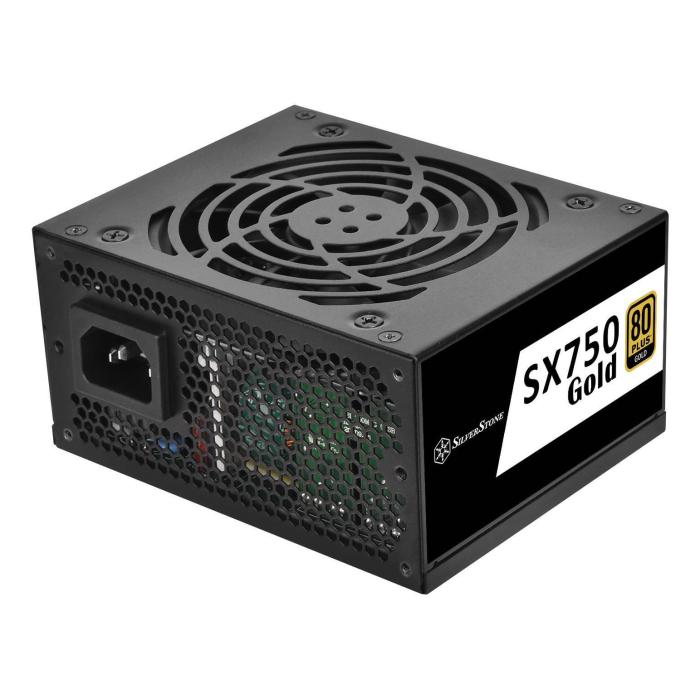

Silverstone SX750 Gold power supply unit 750 W 20+4 pin ATX SFX Black
More info
Brand: SILVERSTONE
158.76 €
131.21 €
without VAT
incl. 21 % VAT
Stock available: 8 units.
Get it
tomorrow
/
October 5
SKU:
119507
PRC:
578628
EAN:
4710679813820
PN:
SST-SX750-G
Description

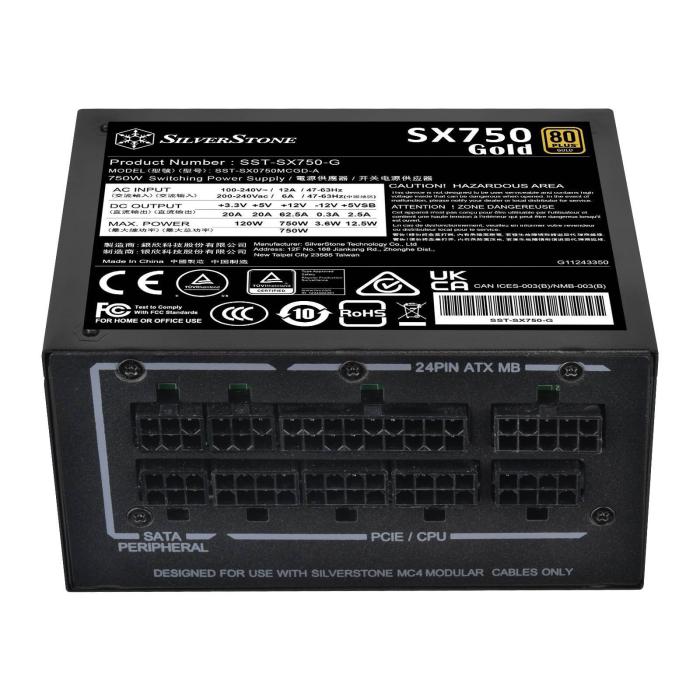

Silverstone SX750 Gold power supply unit, SFX form factor and black finish, designed to deliver 750 W total power with a certified efficiency of 90%. Its main connector is 20+4 pin ATX and it offers fully modular cabling, which simplifies cable management in compact builds. It includes an 8-pin EPS connector and also a floppy disk drive connector, along with protections against overcurrent, overvoltage, overtemperature, short circuit and undervoltage. With AC input from 90 to 264 V and a power factor of 0.9, this unit works with active power factor correction and provides 62.5 A on the +12 V rail, plus combined outputs of 120 W for the +5 V and +3.3 V rails.
Specifications
Power

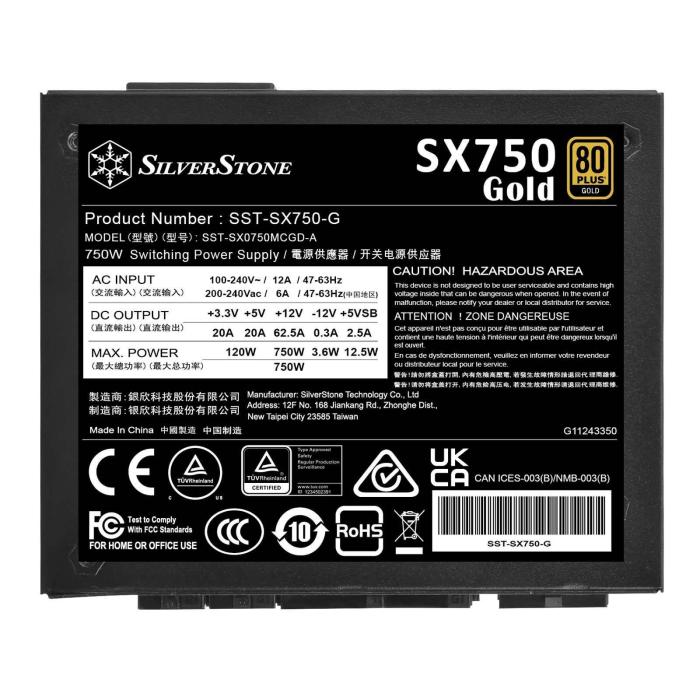

- Total power: 750 W

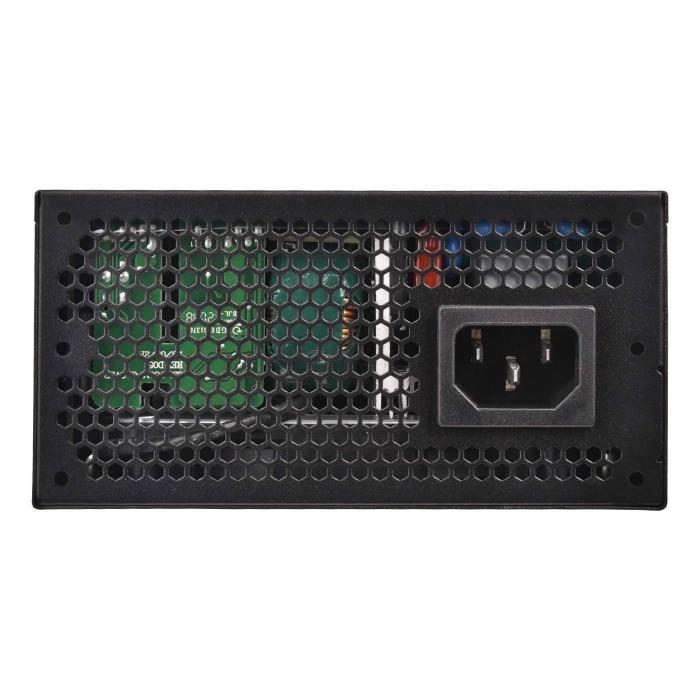

- AC input voltage: 90 - 264 V
- AC input frequency: 47 - 63 Hz
- Power factor: 0.9
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 750 W
- Combined power (+5V): 120 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 62.5 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces

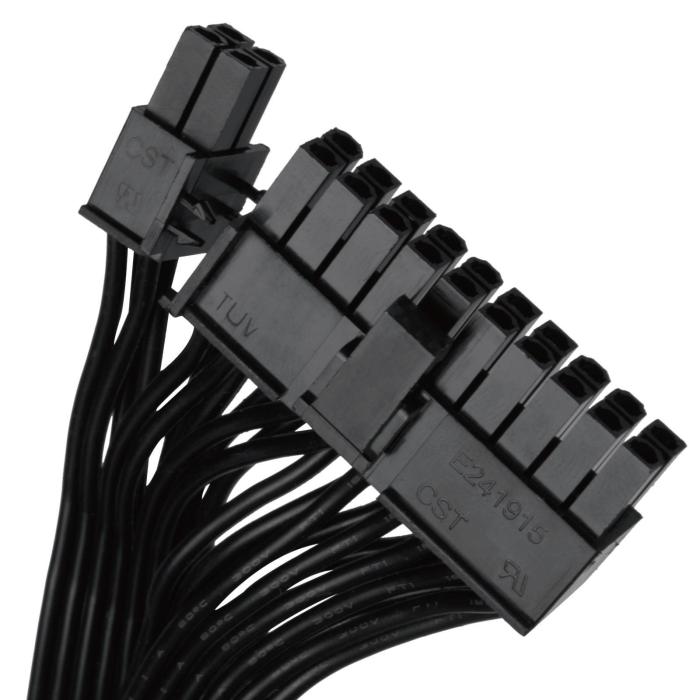

- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 30 cm

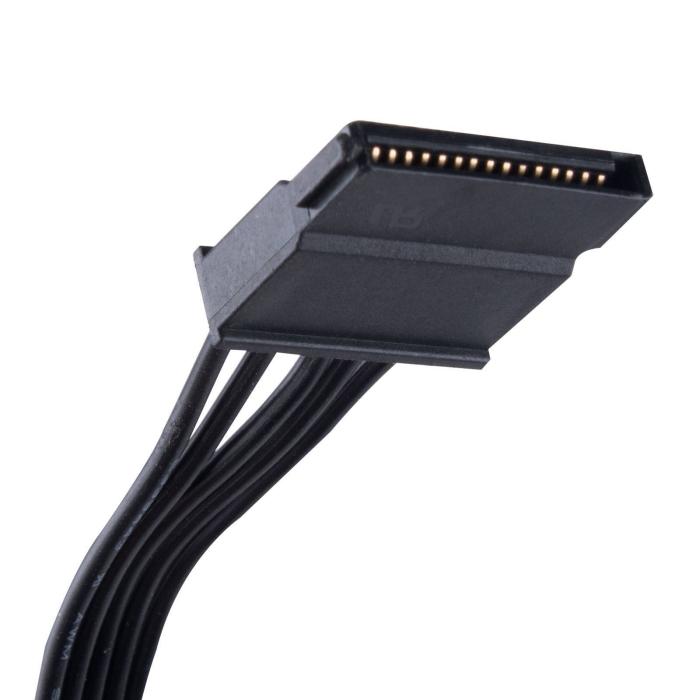

- Number of SATA power connectors: 4
- SATA power cable length: 100, 200, 300 mm

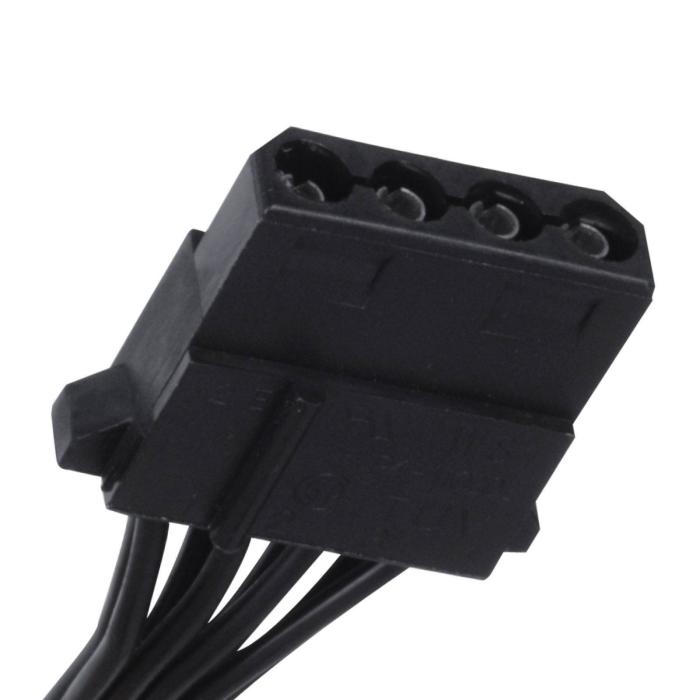

- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 100, 200, 300 mm

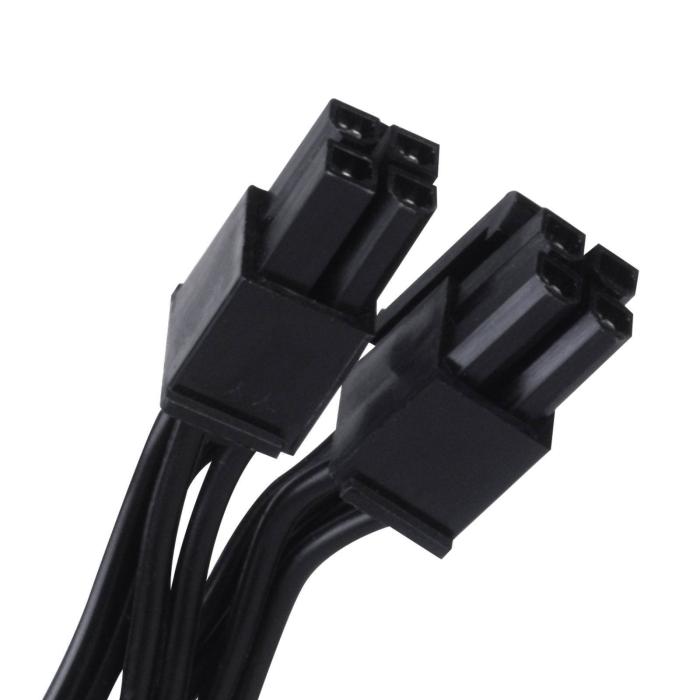

- EPS power connector (8-pin): Yes

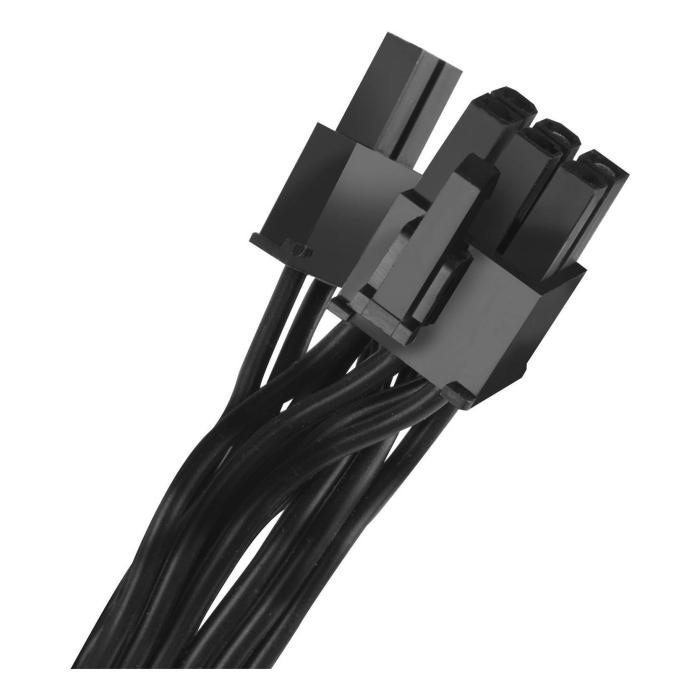

- PCI Express power connectors (6+2 pin): 2
- PCI Express power connectors (8-pin): 2
- PCI Express power cable length: 55 cm

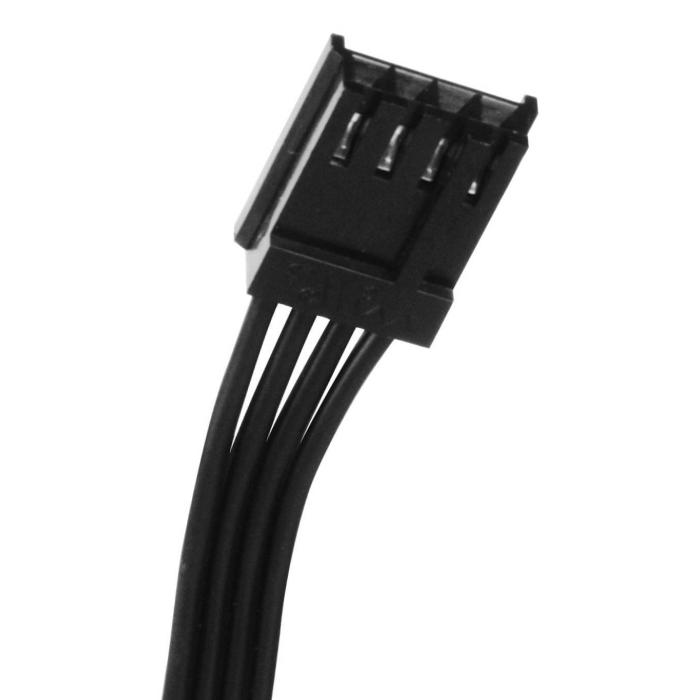

- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 10 cm

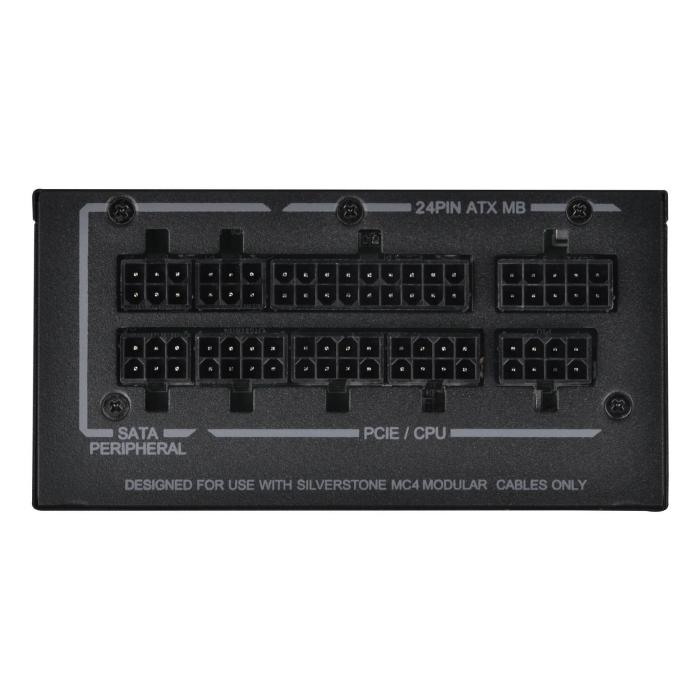

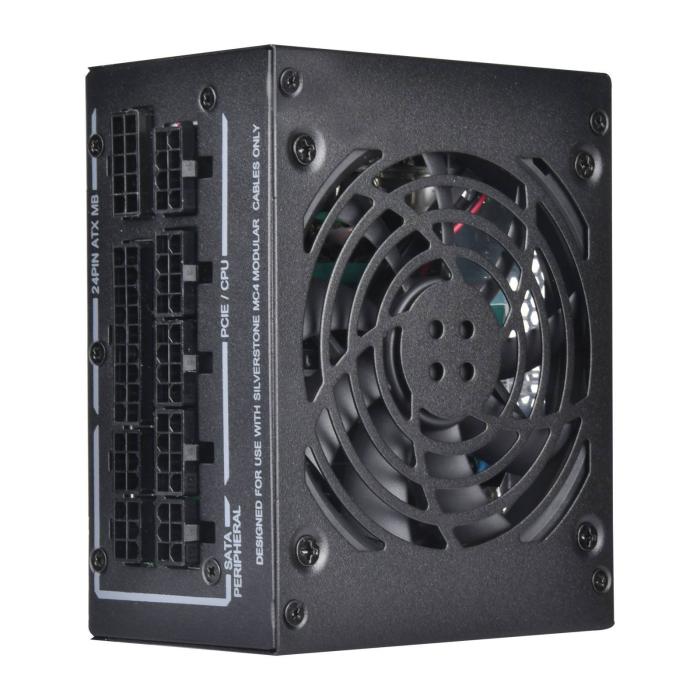

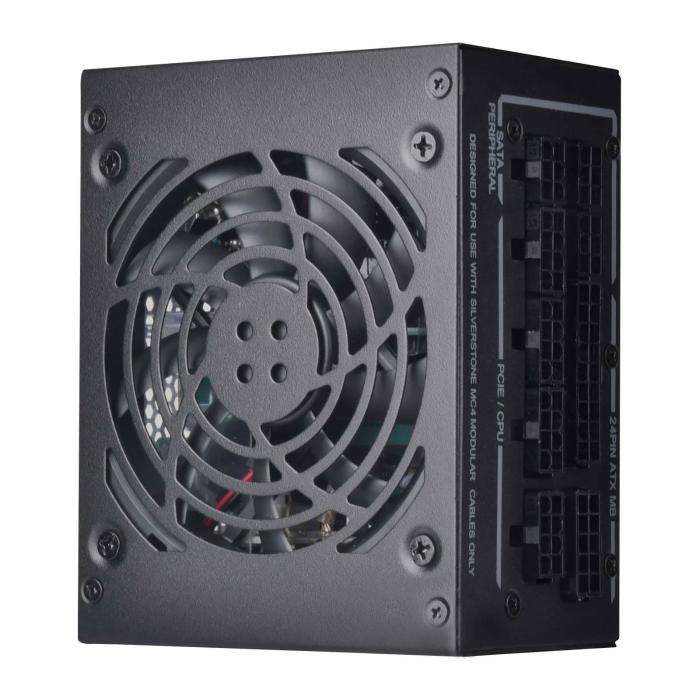

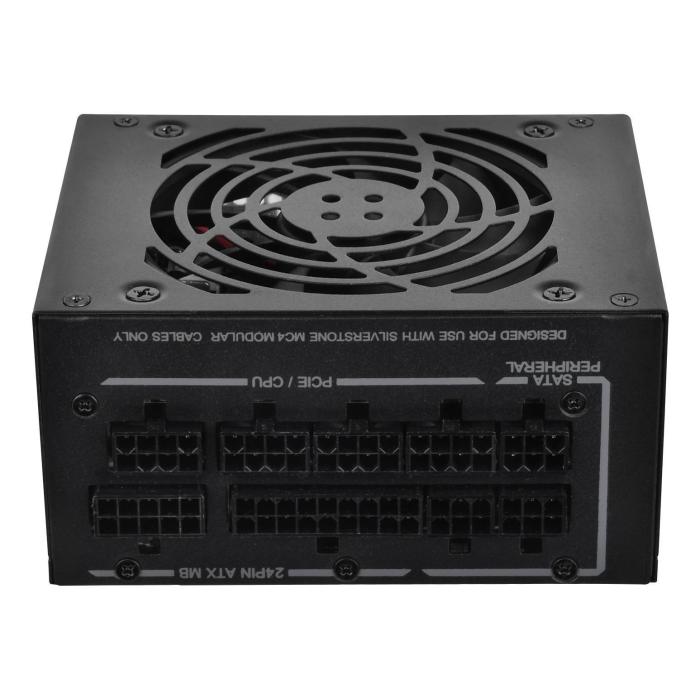

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: SFX
- Noise level: 18 dB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 9.2 cm
- Number of fans: 1 fan(s)
- Fan location: Top
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 125 mm
- Depth: 100 mm
- Height: 63.5 mm
- Weight: 1.49 kg
