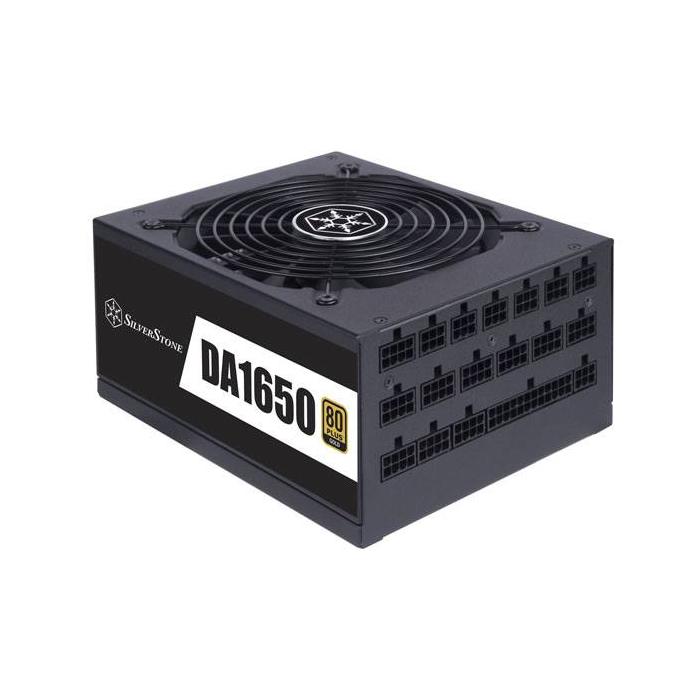

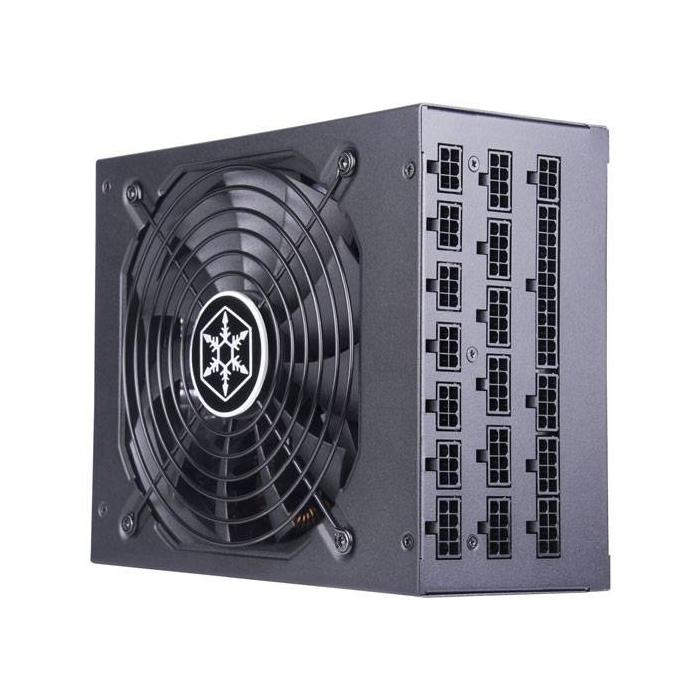

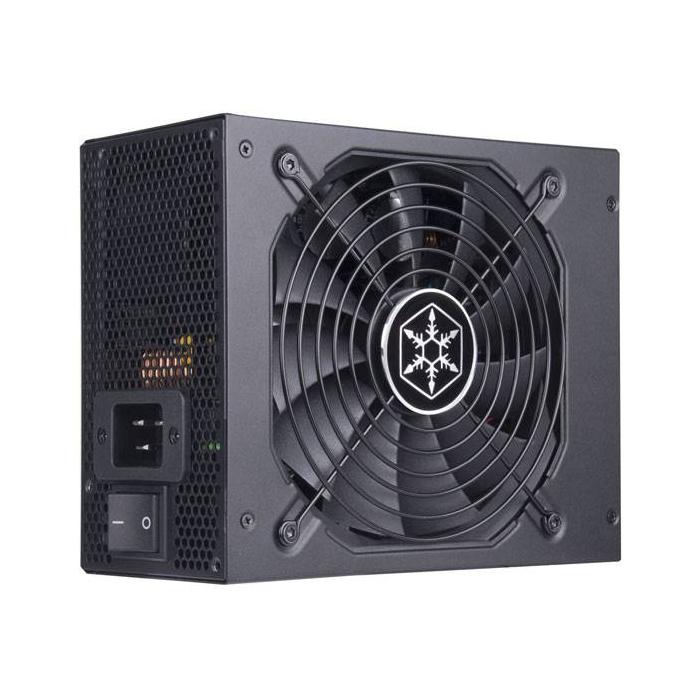

Silverstone DA1650 power supply unit 1650 W 20-pin ATX 2U Black
More info
Brand: SILVERSTONE
349.00 €Stock available: 0 units.
Unavailable
SKU:
114322
PRC:
350253
EAN:
4710007229897
PN:
sst-da1650-g
Description

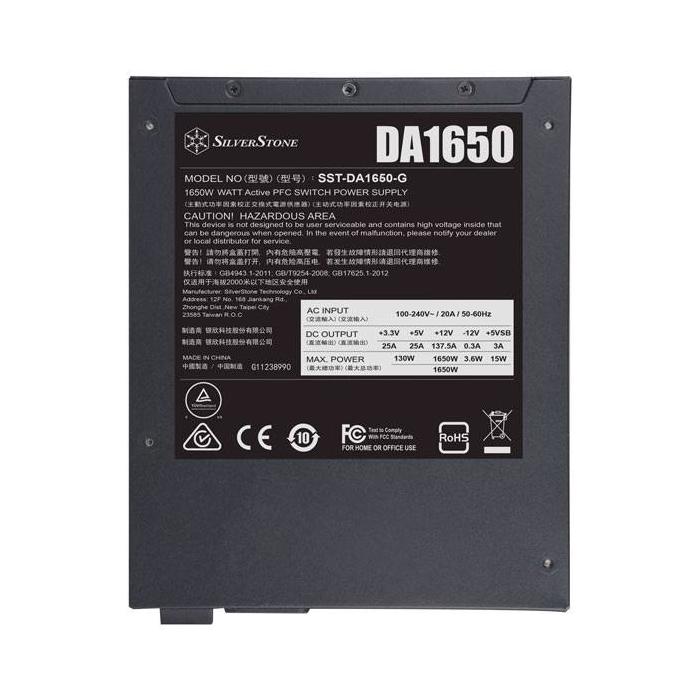

The Silverstone DA1650 power supply unit, in 2U format with a black finish, delivers a total power output of 1650 W with 90% efficiency, designed for systems requiring a stable and robust supply. It incorporates active power factor correction (PFC) with a factor of 0.9 and a wide input voltage range of 90 to 264 V, along with protection against overcurrent, overvoltage, overheating, short circuit and undervoltage. Its fully modular cabling includes a 20-pin ATX main connector for the motherboard and provides a maximum current of 137.5 A on the +12 V rail, plus combined outputs of 130 W for +3.3 V and +5 V.
Specifications
Power
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 130 W
- Combined power (+12V): 1650 W
- Combined power (+5V): 130 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 137.5 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
- Total power: 1650 W

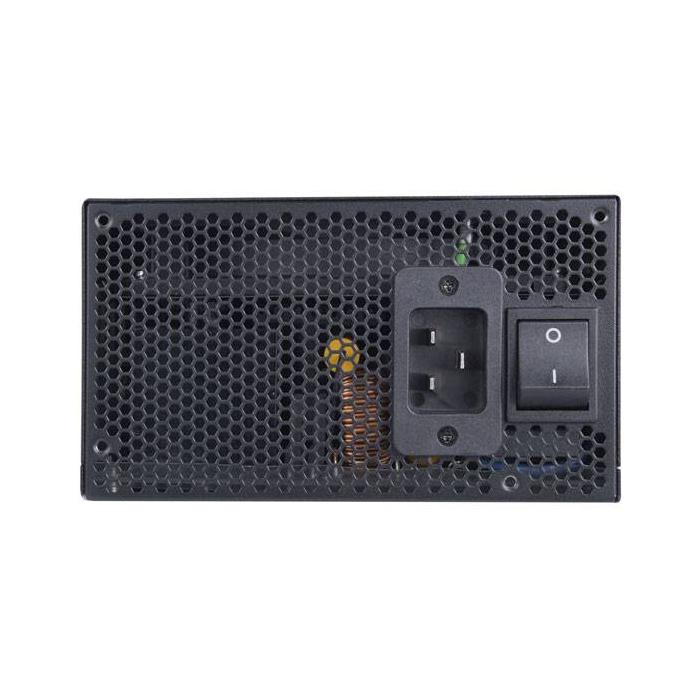

- AC input voltage: 90 - 264 V
- AC input frequency: 43 - 63 Hz
- Power factor: 0.9
Ports & interfaces
- Motherboard power connector: 20-pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 16
- Peripheral (Molex) power connectors (4-pin): 6
- PCI Express power connectors (6-pin): 12
- Floppy disk drive connector: Yes
- PCI Express connector: Yes

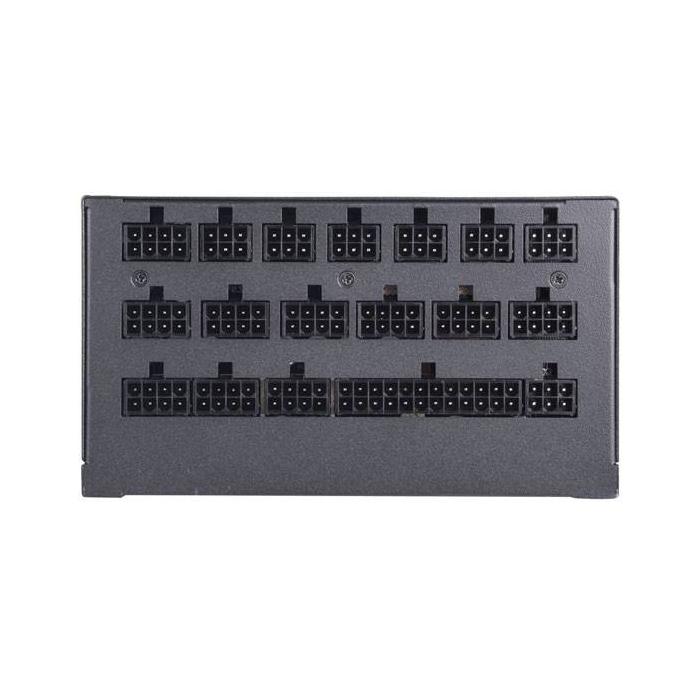

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS
- Purpose: PC/Server
- Power supply unit (PSU) form factor: 2U
- Noise level: 36 dB
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black

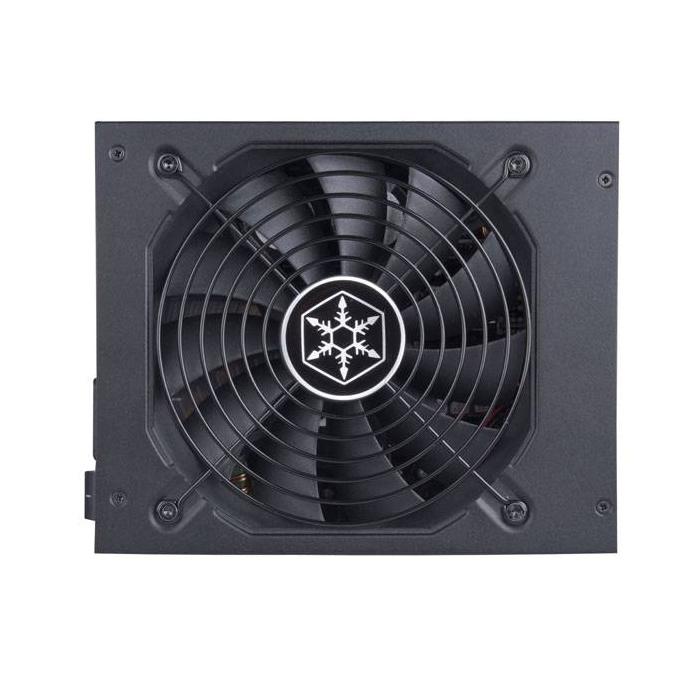

- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 150 mm
- Depth: 180 mm
- Height: 86 mm
- Weight: 2.09 kg
Logistics data
- Harmonized System (HS) code: 84733020
