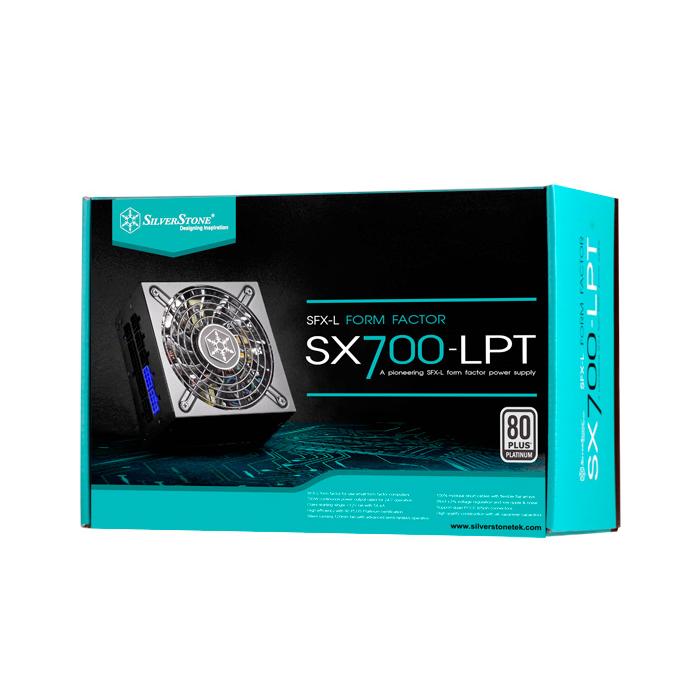

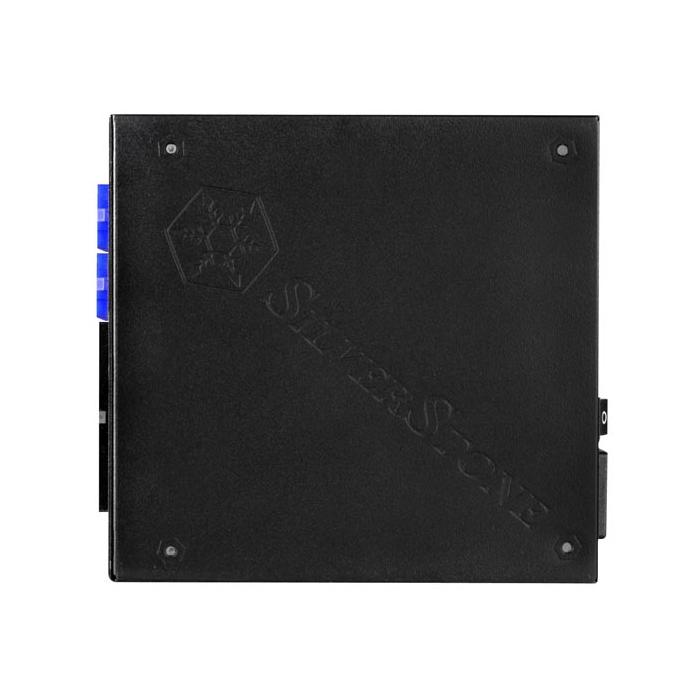

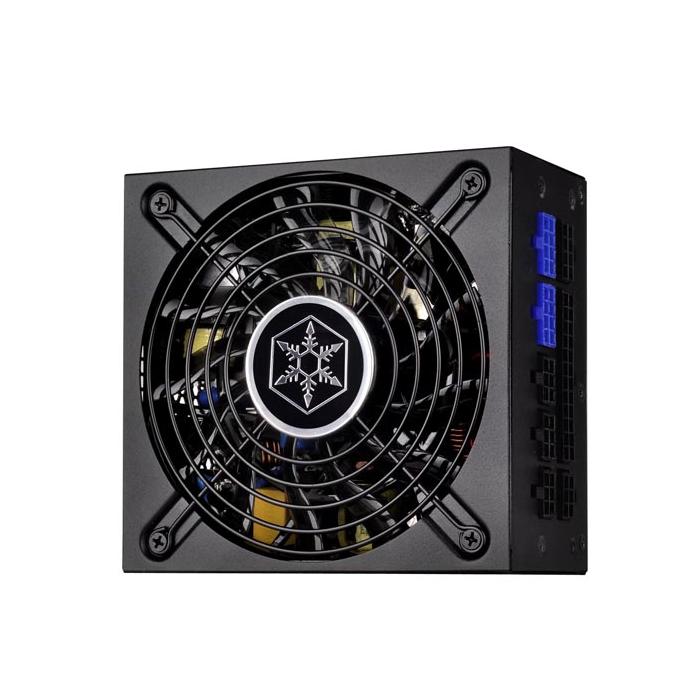

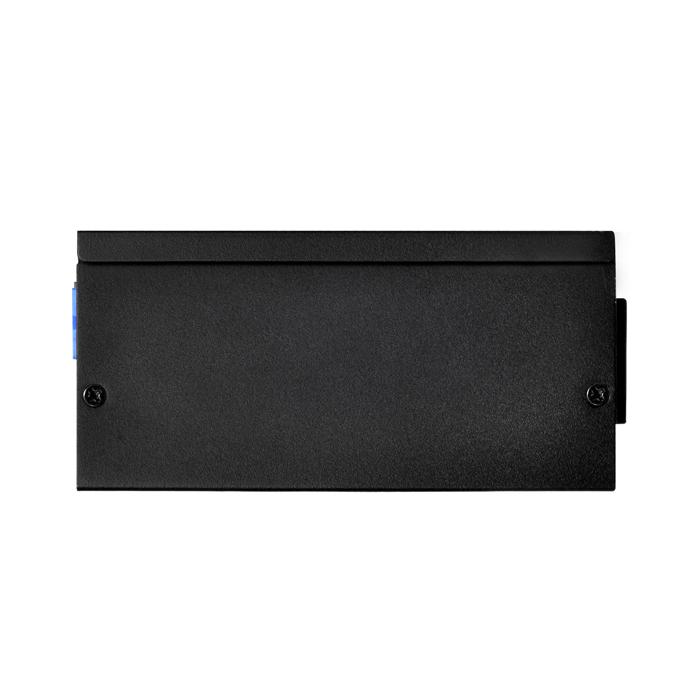

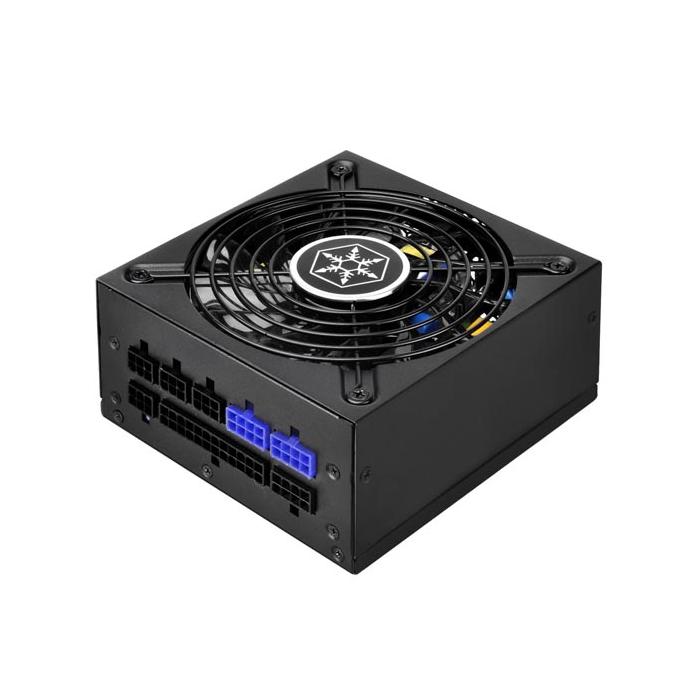

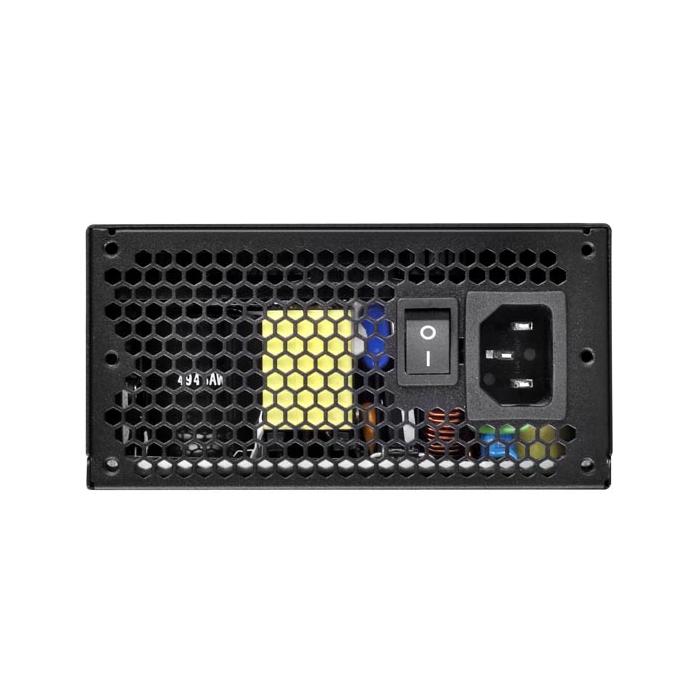

Silverstone SST-SX700-LPT power supply unit 700 W 20+4 pin ATX Black

Not avaliable

More info

Brand: SILVERSTONE
SKU: 76958 PRC: 124395 EAN: 4710007223277 PN: SST-SX700-LPT

Description

Specifications

Power

  • Total power: 700 W
  • Peak power: 750 W
  • AC input voltage: 90 - 264 V
  • AC input frequency: 47 - 63 Hz
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 120 W
  • Combined power (+12V): 700 W
  • Combined power (+5V): 120 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 22 A
  • Max output current (+12V): 58.4 A
  • Max output current (+5V): 22 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Efficiency: 92%
  • Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

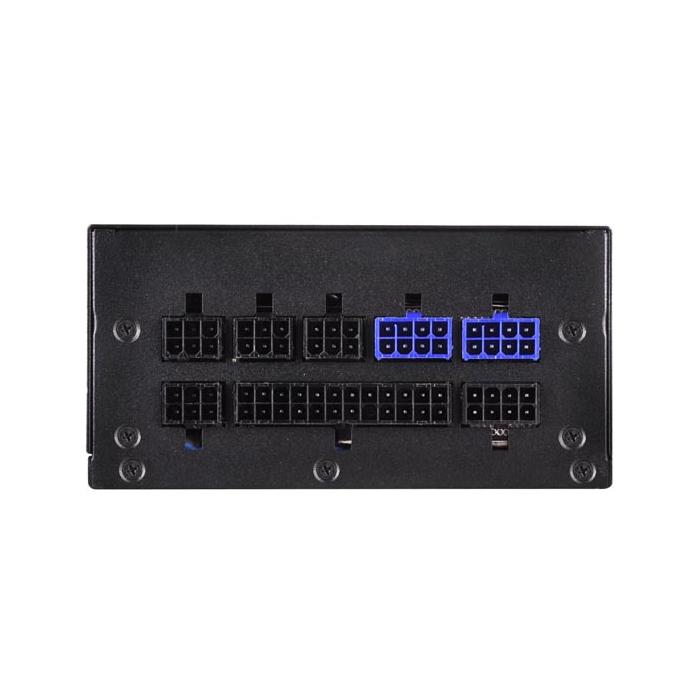

Ports & interfaces

  • Motherboard power connector: 20+4 pin ATX
  • Number of SATA power connectors: 9
  • SATA power cable length: 100, 150, 200, 300, 600 mm
  • Peripheral (Molex) power connectors (4-pin): 3
  • Peripheral (Molex) power cable length: 200, 300 mm
  • EPS power connector (8-pin): Yes
  • PCI Express power connectors (6+2 pin): 4
  • ATX power connector (20+4 pin): Yes
  • Floppy drive power connector: 1
  • Floppy disk drive connector: Yes
  • Floppy disk drive cable length: 10 cm
  • PCI Express connector: Yes
  • Cabling type: Fully-Modular

Performance

  • 80 PLUS certification: 80 PLUS Platinum
  • Purpose: PC
  • ATX version: 2.4
  • Noise level: 36 dB
  • Mean time between failures (MTBF): 100000 h

Design

  • Product colour: Black
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

  • Width: 125 mm
  • Depth: 130 mm
  • Height: 63.5 mm
  • Weight: 1.68 kg

Other features

  • Noise level (silent mode, <30%): 18 dB
