Description

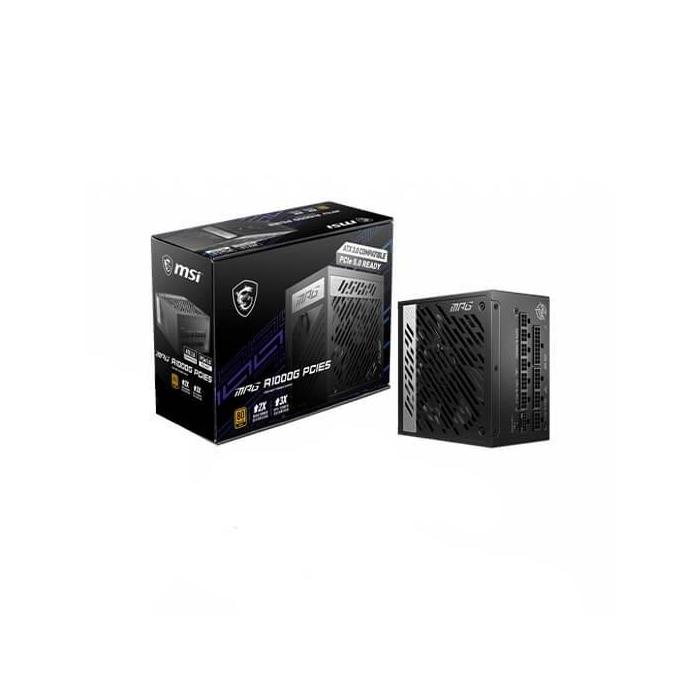

MSI MPG A1000G PCIE5 power supply unit, in black, with 1000 W total power and 90% efficiency. It offers a maximum output current of 83.5 A on the +12V rail and 22 A on both +3.3V and +5V, with a combined power of 1000 W on +12 V. Its power factor correction is active and it supports an AC input voltage of 100 - 240 V with a frequency of 50 - 60 Hz. It incorporates protection features against overcurrent, overvoltage, overvoltage, overheating, short circuit and undervoltage. The motherboard power connector is 20+4 pin ATX and it has a connector for floppy disk drive. Its dimensions are 150 x 86 x 150 mm (width x height x depth), a form factor that fits conventional PC cases. The maximum output current on +5Vsb is 3 A, with a combined power of 15 W on that rail, while on -12V it reaches 0.3 A and 3.6 W.
Specifications
Power
- Total power: 1000 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 1000 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 22 A
- Max output current (+12V): 83.5 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 12
- SATA power cable length: 500, 650, 700, 850 mm
- Peripheral (Molex) power connectors (4-pin): 4
- Peripheral (Molex) power cable length: 1100, 500, 650, 700, 850 mm
- EPS power connector (8-pin): No
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 6
- PCI Express power connectors (16-pin): 1
- PCI Express power cable length: 75 cm
- Floppy disk drive connector: Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC/Server
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- Bearing technology: FDB
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- Illumination: No
Weight & dimensions
- Width: 150 mm
- Depth: 150 mm
- Height: 86 mm
Other features
- EPS cable length: 70 cm
