Description

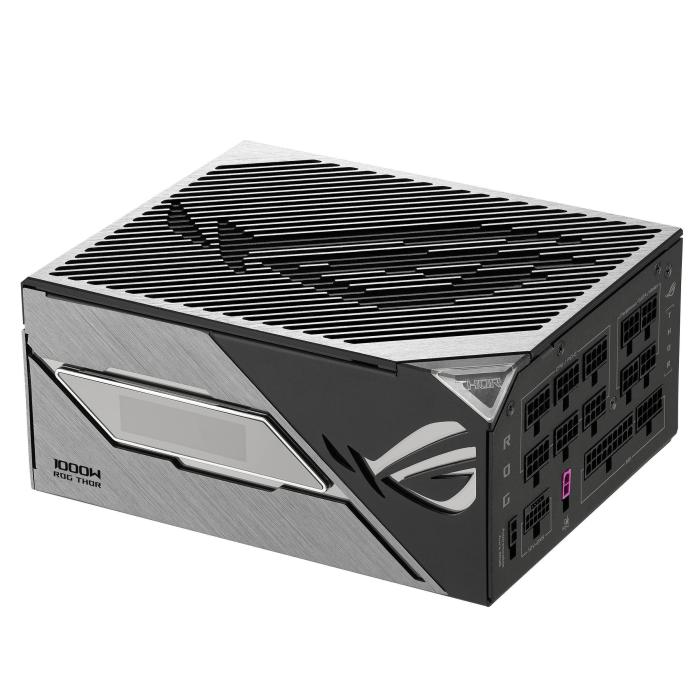

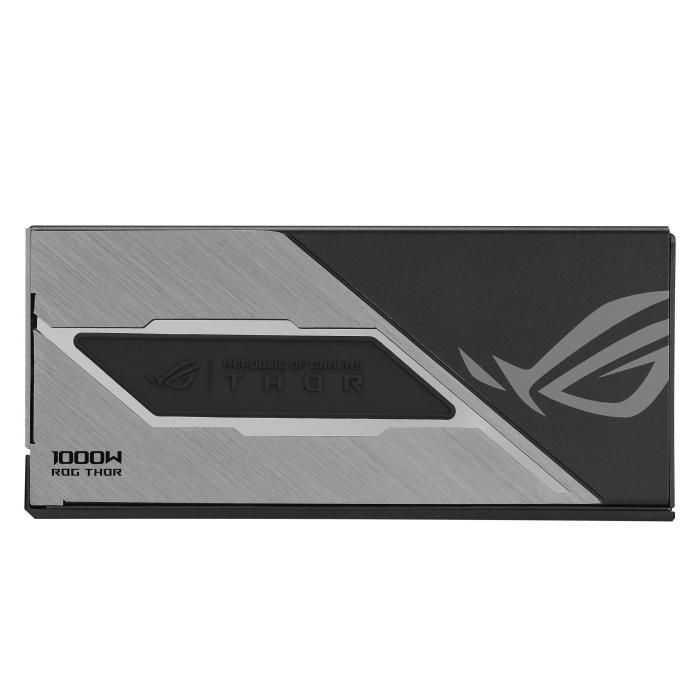

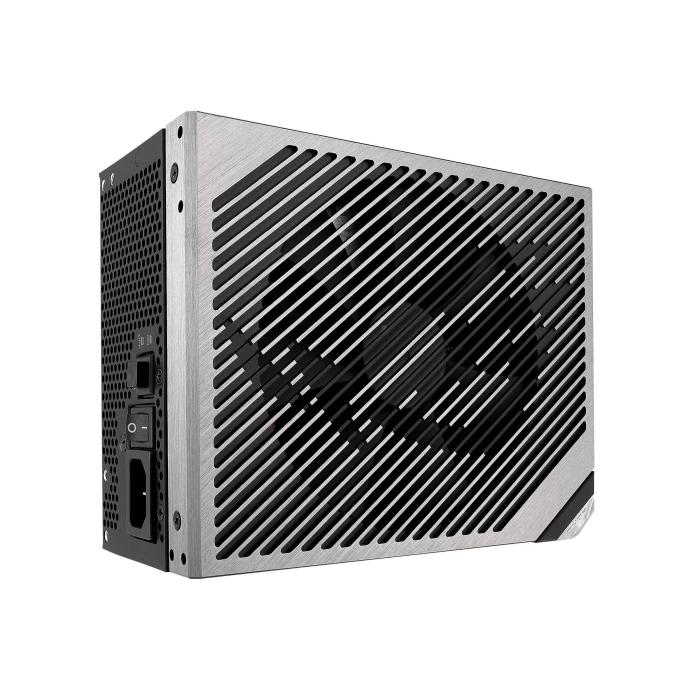

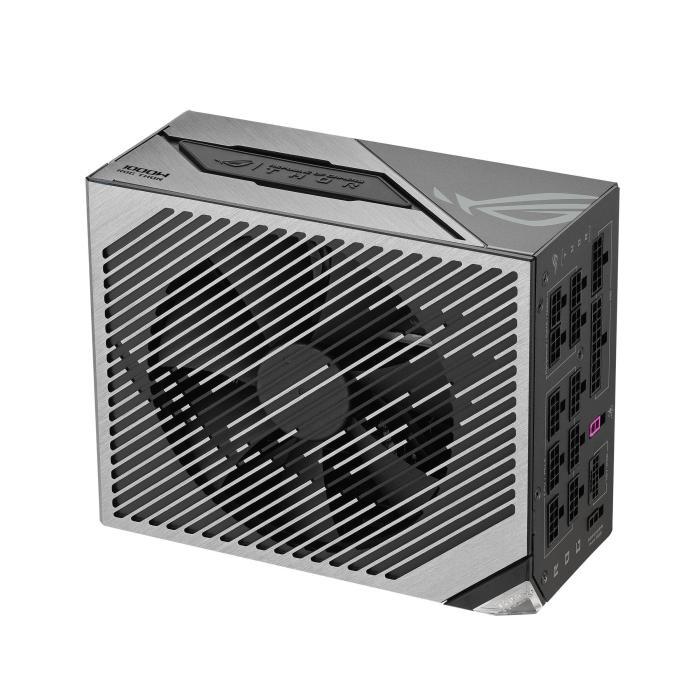

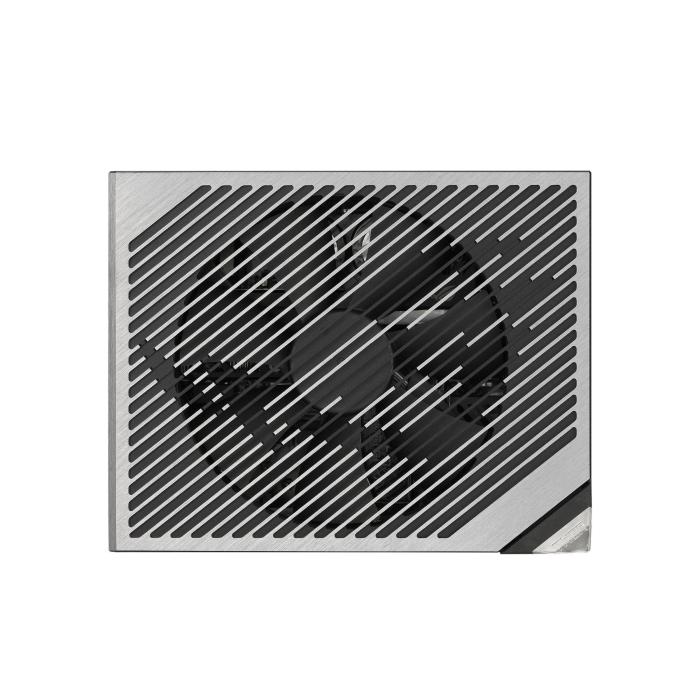

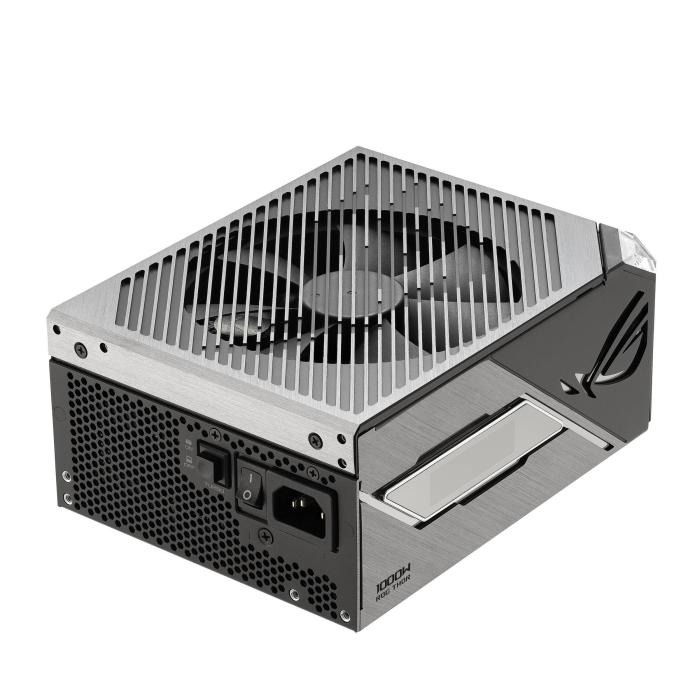

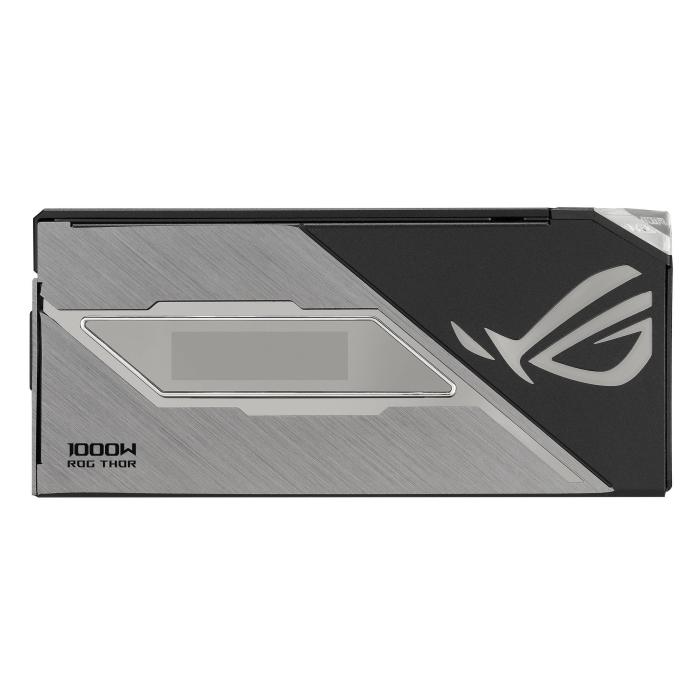

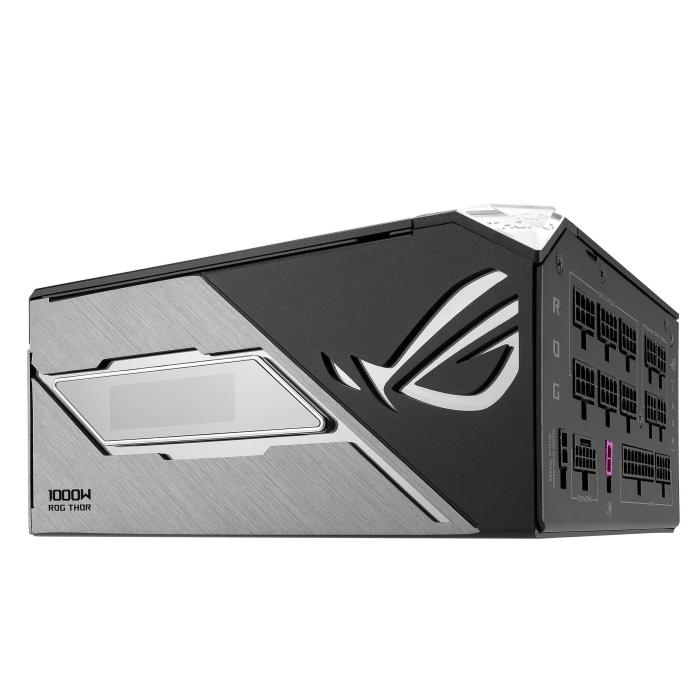

The ASUS ROG THOR-1000P3-GAMING power supply unit, in black, delivers a total power output of 1000 W with an ATX form factor and a 20+4 pin main connector. It features active power factor correction (active PFC) and protection against overcurrent, overvoltage, overheating, short circuit, and undervoltage. Its +12V rail reaches a maximum output current of 83.33 A with a combined power output of 1000 W, while the +3.3 V and +5 V rails deliver up to 125 W each. The included cables measure 61 cm for the motherboard, 100 cm for the CPU, 75 cm for PCI Express, and 400 mm or 150 mm for Molex peripherals.
Specifications
Power
- Total power: 1000 W
- AC input voltage: 100 - 240 V
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 125 W
- Combined power (+12V): 1000 W
- Combined power (+5V): 125 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 30 A
- Max output current (+12V): 83.33 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under power

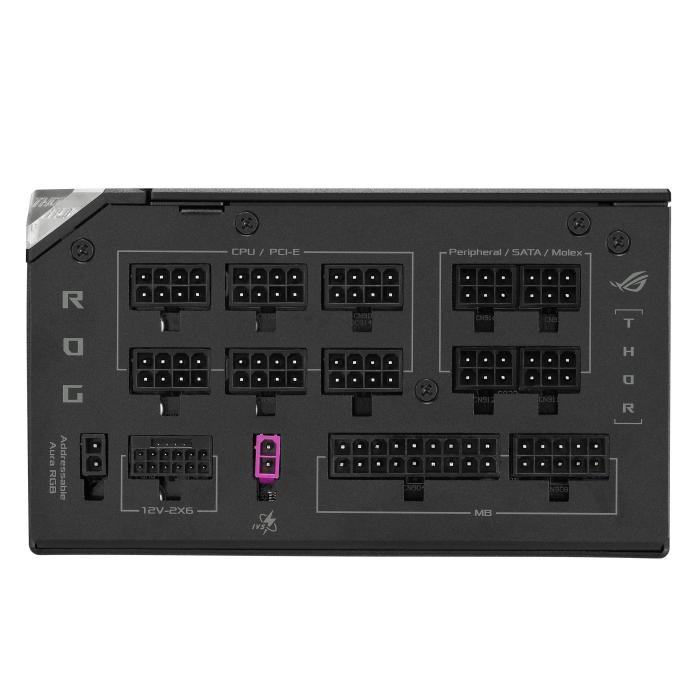

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 7
- SATA power cable length: 400, 120 mm
- Peripheral (Molex) power connectors (4-pin): 6
- Peripheral (Molex) power cable length: 400, 150 mm
- PCI Express power connectors (6+2 pin): 4
- PCI Express power connectors (16-pin): 1
- PCI Express power cable length: 75 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 100 cm
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: DBB
- Mean time between failures (MTBF): 120000 h
Design
- Product colour: Black
- Cooling type: Active
- Number of fans: 1 fan(s)
- Fan location: Top
- Illumination: Yes
Packaging content
- Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Weight & dimensions
- Width: 190 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 2.37 kg
Packaging data
- Package width: 379 mm
- Package depth: 241 mm
- Package height: 127 mm
- Package weight: 5.08 kg
- Package type: Box
