Description

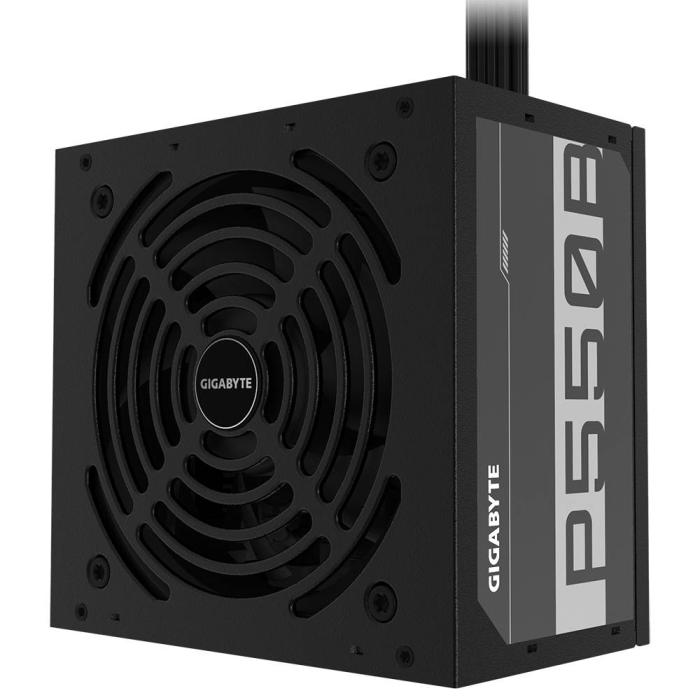

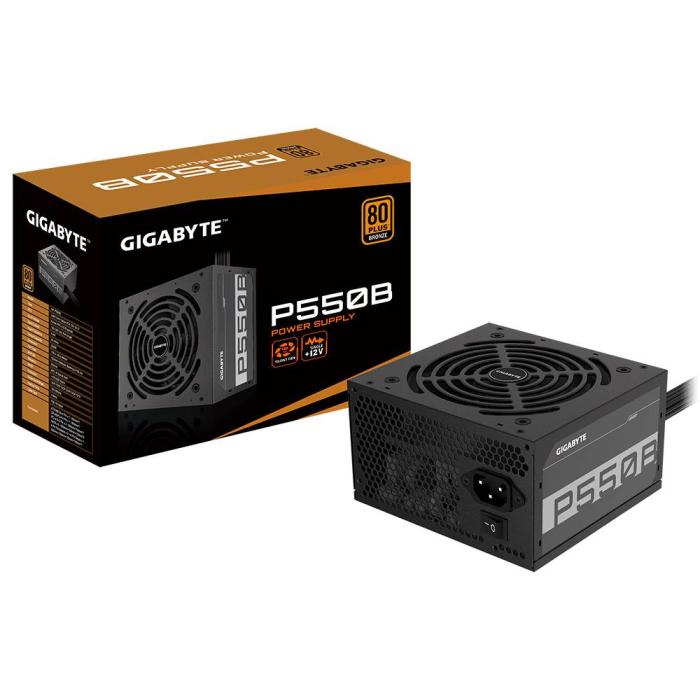

The GIGABYTE P550B is an ATX power supply unit with a total power output of 550 W and a black colour, with dimensions of 150 x 86 x 140 mm (width x height x depth). Its 20+4 pin connector allows conventional ATX configurations to be powered, and it supports an input voltage of 100 - 240 V with a current of 8 - 4 A and an input frequency of 50 - 60 Hz. It features active power factor correction and achieves an efficiency of 85%. It distributes the load across its rails: up to 43.5 A on the +12V line, 18 A on the +3.3V line and 15 A on the +5V line, while the auxiliary rails support 3 A on +5Vsb and 0.3 A on -12V. The combined power outputs are distributed as 522 W for +12 V, 108 W for +5 V, 108 W for 3.3 V, 15 W for +5 VSB and 3.6 W for -12V. It includes protection features against overcurrent, overvoltage, overpower, overheating, short circuit and undervoltage, with a hold-up time of 16 ms.
Specifications
Power
- Total power: 550 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 8 - 4 A
- Power factor: 0.9
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 108 W
- Combined power (+12V): 522 W
- Combined power (+5V): 108 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 18 A
- Max output current (+12V): 43.5 A
- Max output current (+5V): 15 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Hold time: 16 ms
- Efficiency: 85%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 6
- SATA power cable length: 500 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 500 mm
- PCI Express power connectors (6+2 pin): 2
- PCI Express power cable length: 55 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 60 cm
- ATX power connector (20+4 pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- PCI Express connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.31
- Bearing technology: HDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

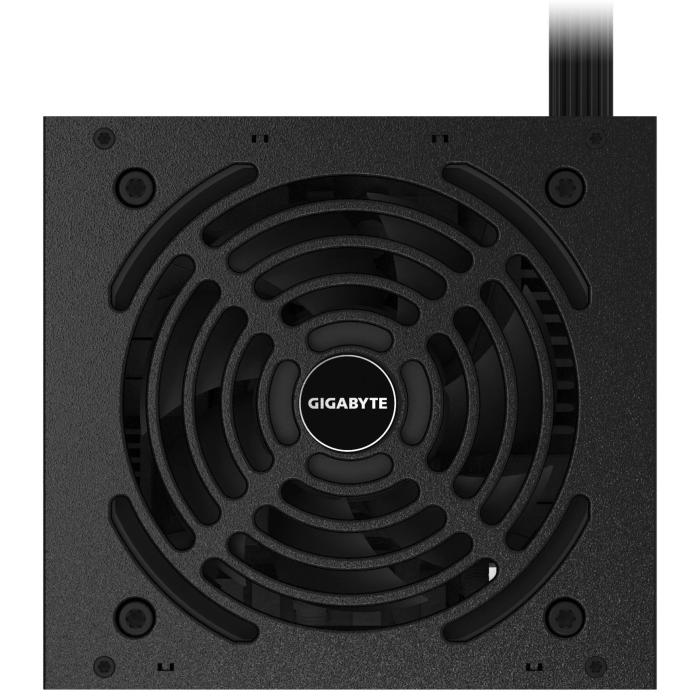

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top

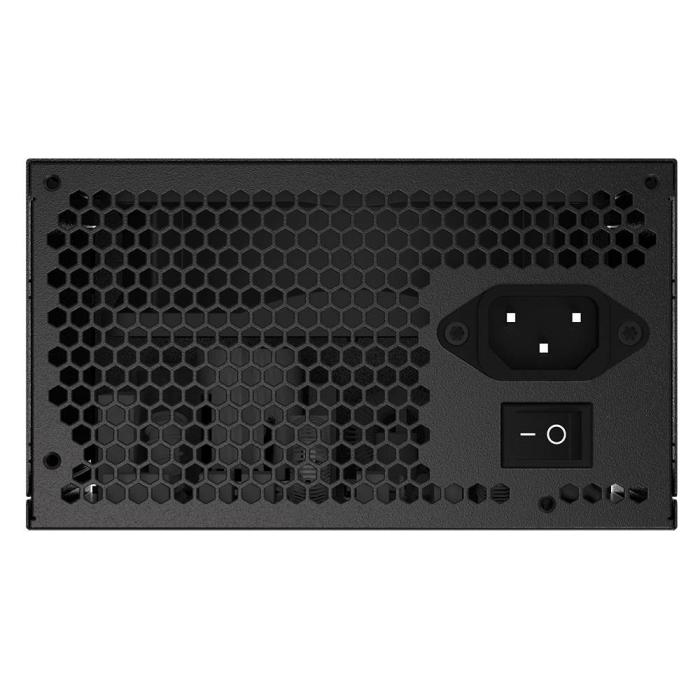

- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Logistics data
- Harmonized System (HS) code: 84733020
