Description

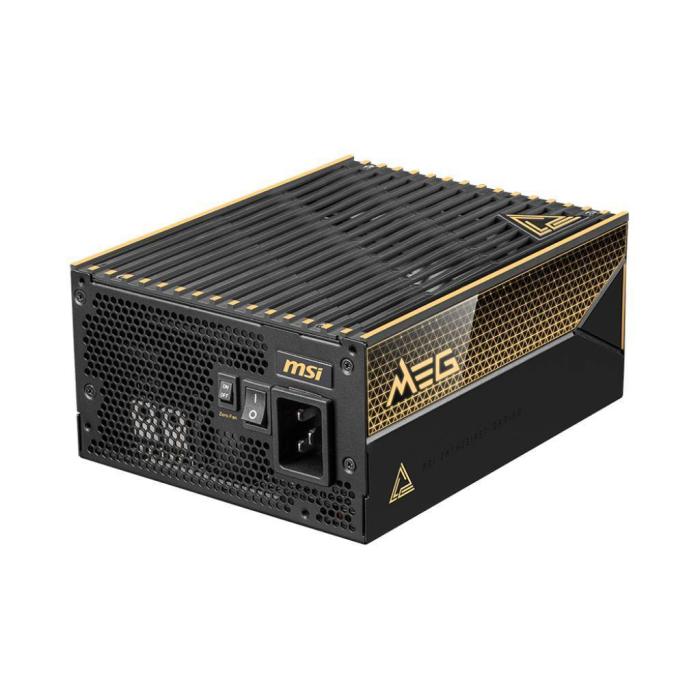

The MSI MEG Ai1600T PCIE5 power supply unit delivers a total power of 1600 W with 94% efficiency certification, in black. It features active power factor correction and supports an input voltage of 100 to 240 V, with a maximum output current of 133.3 A on the +12 V rail. The +5 V rail offers 22 A and the same figure for the +3.3 V rail, while the +5 Vsb rail is 3 A and the -12 V rail is 0.3 A. The combined power reaches 1600 W on +12 V, 120 W on both +5 V and +3.3 V, 15 W on +5 Vsb and 3.6 W on -12 V. As for connectivity, it includes a 24-pin ATX feeder for the motherboard, eight SATA power connectors and a 4+4 pin EPS connector. Its dimensions are 190 x 86 x 150 mm (width x height x depth), a format that fits in cases compatible with standard profile power supplies.
Specifications
Power
- Total power: 1600 W
- AC input voltage: 100 - 240 V
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 1600 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 22 A
- Max output current (+12V): 133.3 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 94%

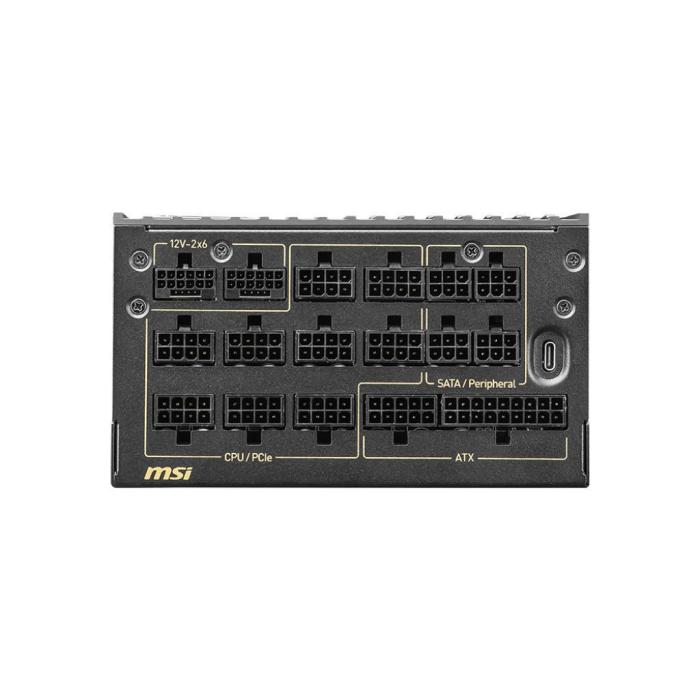

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 8
- Peripheral (Molex) power connectors (4-pin): 8
- EPS power connector (8-pin): No
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 9
- PCI Express power connectors (16-pin): 2
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Titanium
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Bearing technology: DBB
Design
- Product colour: Black

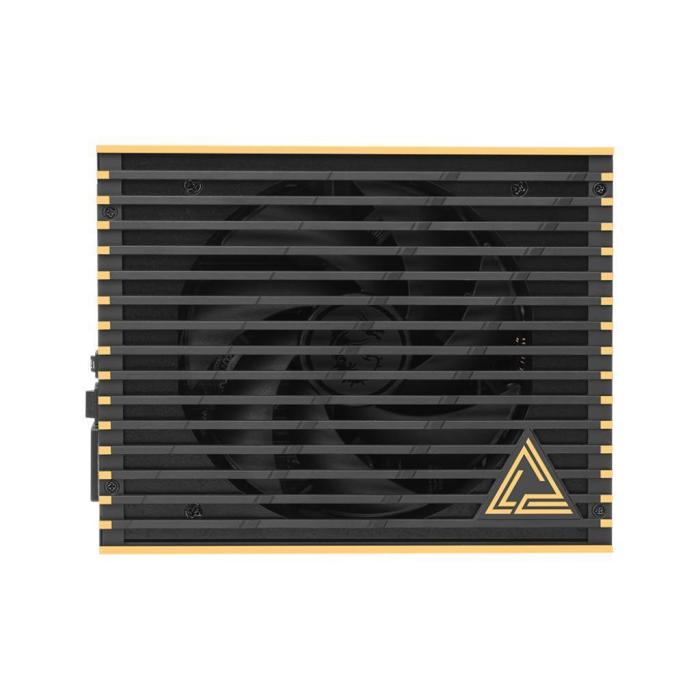

- Fan diameter: 13.5 cm
Weight & dimensions
- Width: 190 mm
- Depth: 150 mm
- Height: 86 mm
