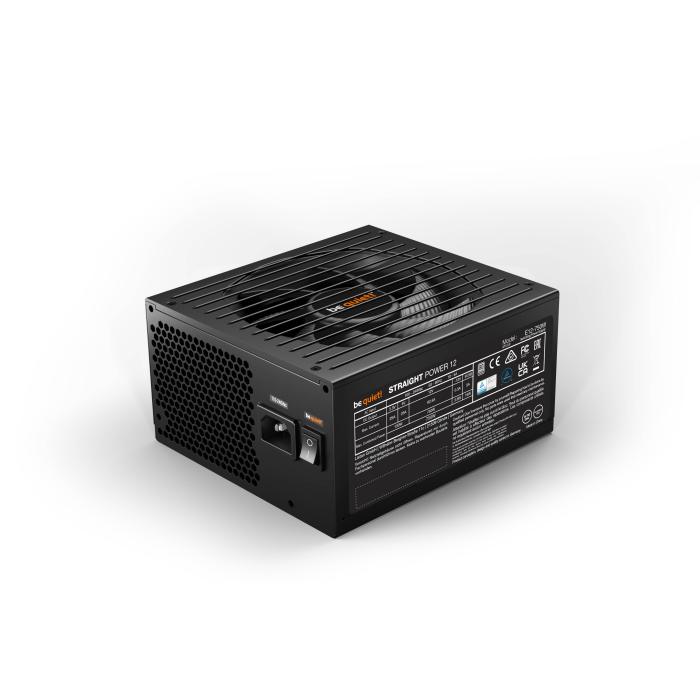

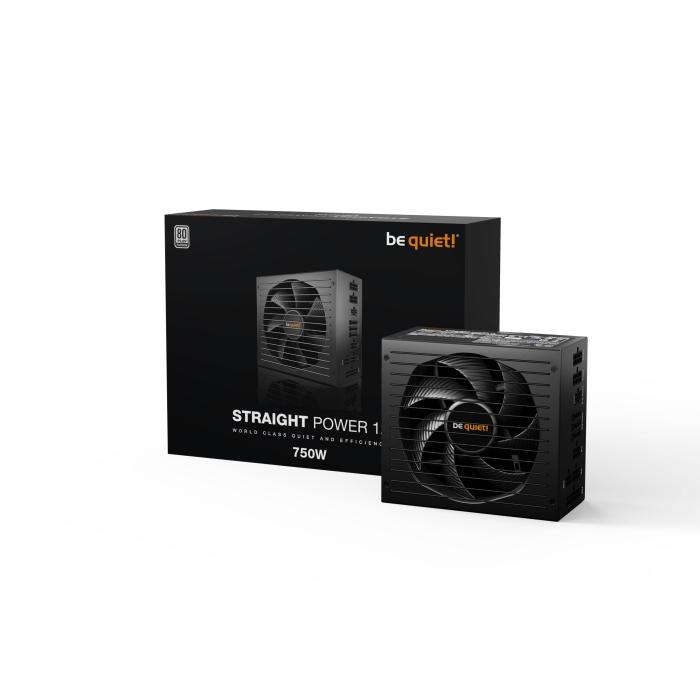

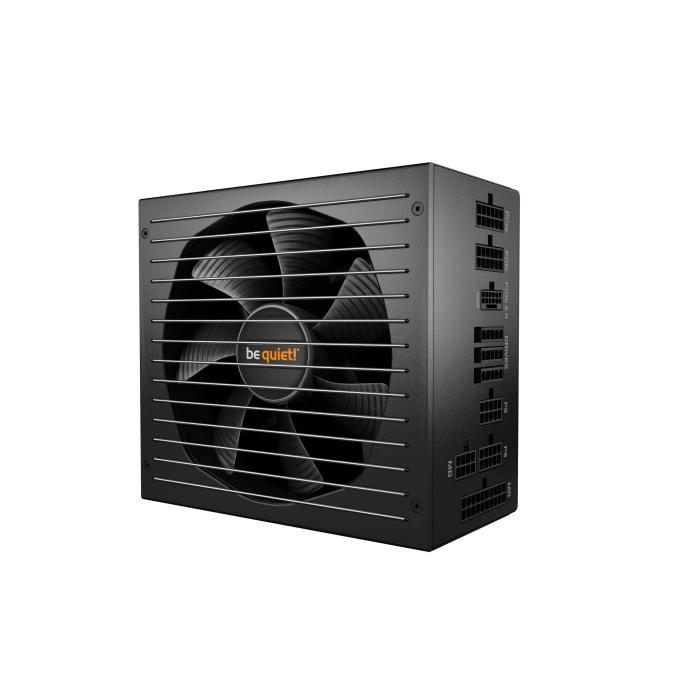

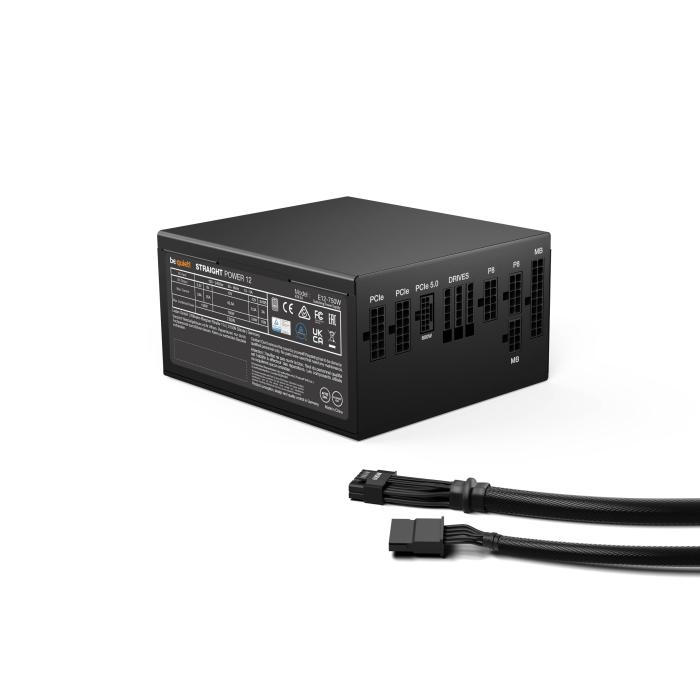

be quiet! Straight Power 12 power supply unit 750 W 20+4 pin ATX ATX Black

$154.25

$154.25 without VAT

be quiet! Straight Power 12, 750 W, 110 - 240 V, 820 W, 50 - 63 Hz, 10/5 A, 130 W. More info

Amount

Brand: BE QUIET!

SKU: 101129 PRC: 447371 EAN: 4260052189412 PN: BN336

Description

be quiet! Straight Power 12, 750 W, 110 - 240 V, 820 W, 50 - 63 Hz, 10/5 A, 130 W

Specifications

Power

Total power: 750 W
Peak power: 820 W
AC input voltage: 110 - 240 V
AC input frequency: 50 - 63 Hz
Input current: 10/5 A
Power factor: 0.99
Combined power (+3.3V): 130 W
Combined power (+12V): 750 W
Max output current (+3.3V): 25 A
Max output current (+12V): 62.5 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 24.8 ms
Efficiency: 93.8%
Power protection features: Over current, Over power, Over voltage, Overheating, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 9
Number of PATA power connectors: 2
Peripheral (Molex) power connectors (4-pin): 1
EPS power connector (8-pin): Yes
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 4
Floppy disk drive connector: No
Cabling type: Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Supported motherboard form factors: ATX, micro ATX, Mini-ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
EPS version: 2.92
Noise level: 20.8 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 1800 RPM
Fan location: Top
Built-in display: No
On/off switch: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Packaging content

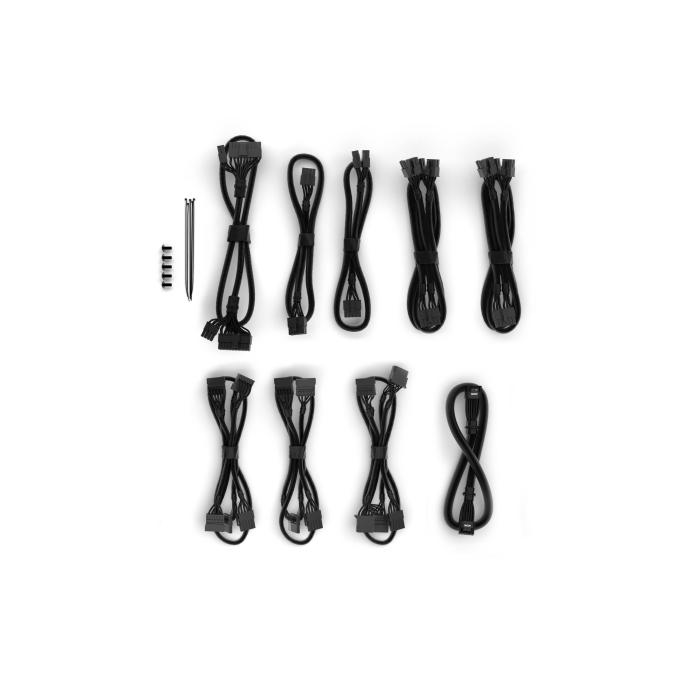

Cables included: CPU, SATA
Cable tie(s) included: Yes

Weight & dimensions

Width: 160 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.76 kg

Packaging data

Package width: 328 mm
Package depth: 248 mm
Package height: 102 mm
Package weight: 3.47 kg
Package type: Box

Technical details

Sustainability compliance: Yes
Sustainability certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Warranty period: 10 year(s)
