Description

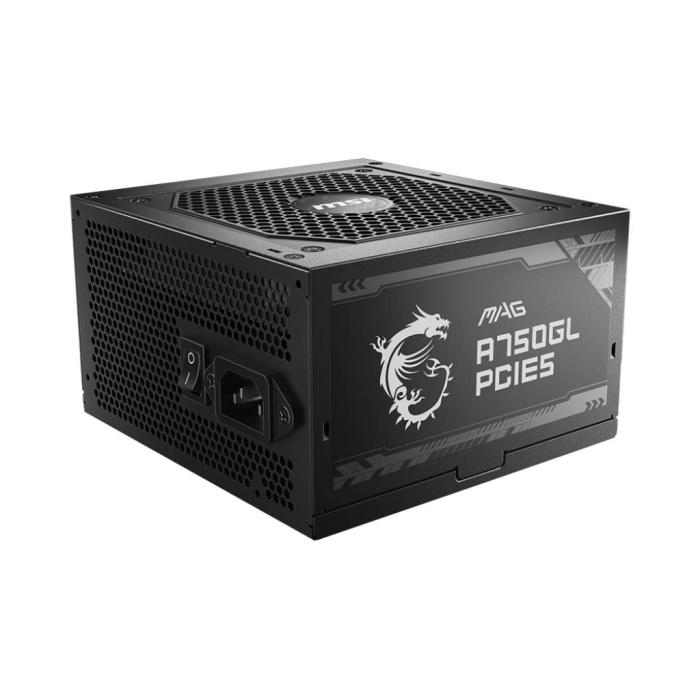

The MSI MAG A750GL PCIE5 is a 750 W ATX power supply in black that delivers 90% efficiency, with active power factor correction (PFC) and an input voltage range of 100 to 240 V. It incorporates protection against overcurrent, overvoltage, overvoltage, overheating and short circuit, with a maximum output current of 62 A on the +12 V rail and a combined power of 744 W for that same rail. It handles input frequencies from 47 to 63 Hz, supporting maximum currents of 8 A at 110 V and 4 A at 220 V, in addition to offering 20 A outputs for +3.3 V and +5 V, with a total of 110 W on each. Its main connector is 20+4 pin and the black design fits standard towers, being compatible with ATX motherboards.
Specifications
Power
- Total power: 750 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Maximum input current (@110V): 8 A
- Maximum input current (@220V): 4 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 110 W
- Combined power (+12V): 744 W
- Combined power (+5V): 110 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 62 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit

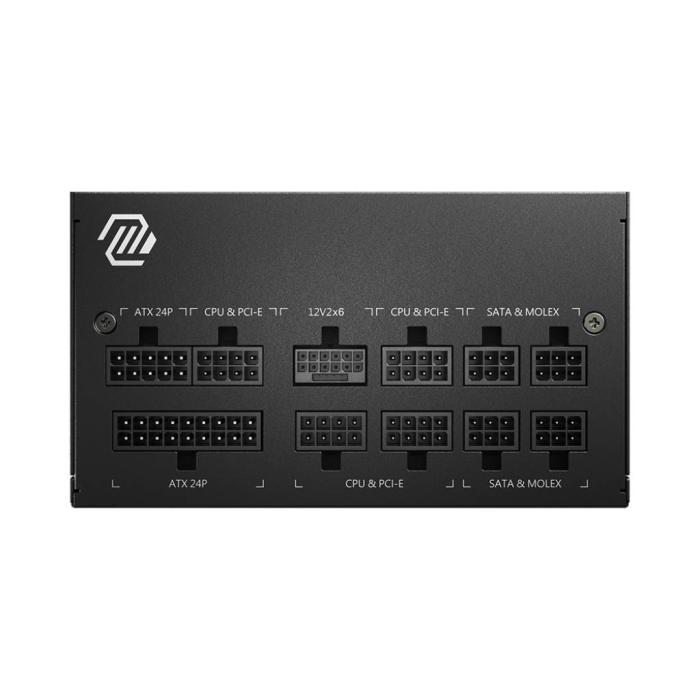

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 45 cm
- Number of SATA power connectors: 8
- Peripheral (Molex) power connectors (4-pin): 4
- EPS power connector (8-pin): No
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 3
- CPU power connector (4+4 pin): Yes
- ATX Power connector (24-pin): No
- ATX power connector (20+4 pin): No
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
Design
- Product colour: Black

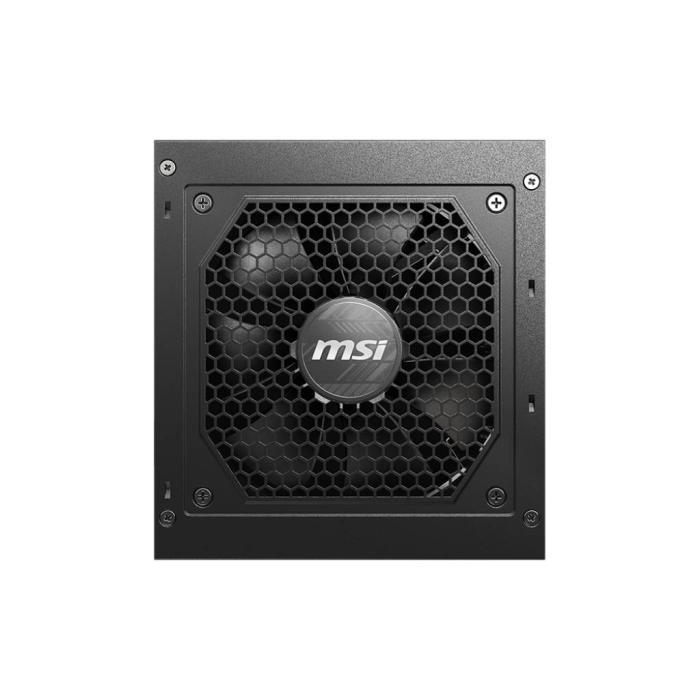

- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Illumination: No
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Packaging data
- Package type: Box
Logistics data
- Harmonized System (HS) code: 84733020
