Description

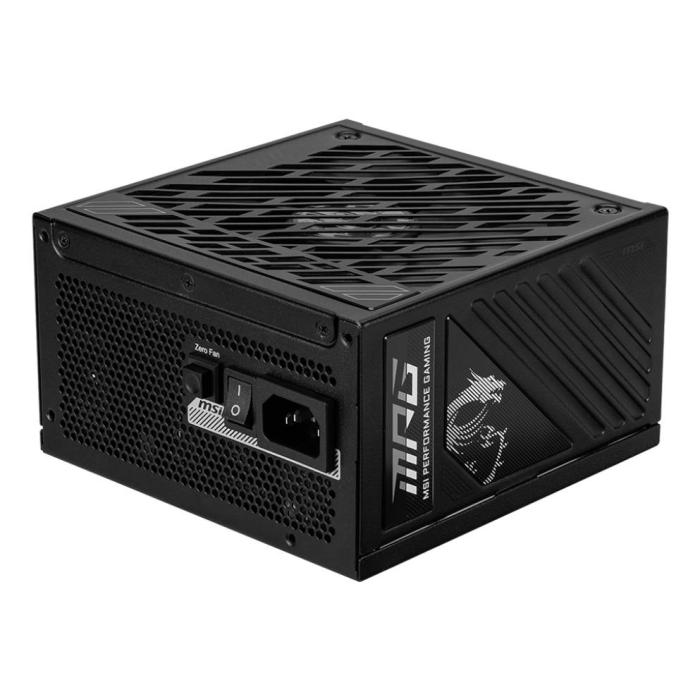

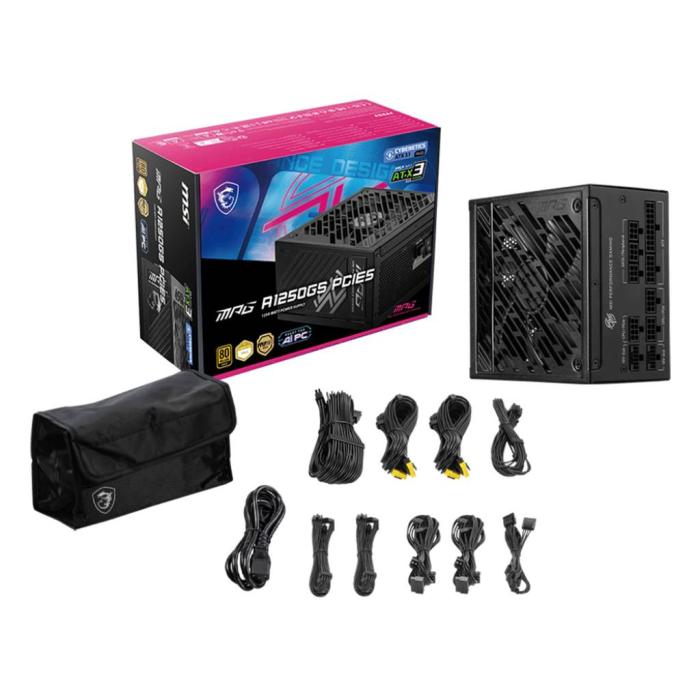

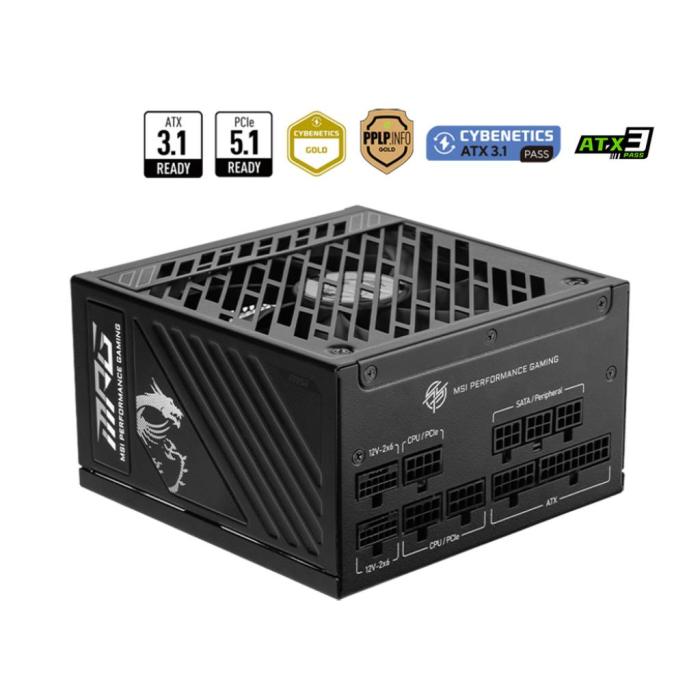

MSI MPG A1250GS PCIE5 power supply unit in black, with a total power of 1250 W and a main 20+4 pin connector for ATX motherboards. It offers 90% efficiency and active power factor correction, with an input voltage of 100-240 V and a frequency of 50/60 Hz. It includes a 60 cm motherboard power cable, eight SATA connectors, four Molex connectors, one 6+2 pin PCI Express connector, and one 4+4 pin EPS connector. Its combined power outputs reach 1249 W on the +12 V rail, 20 W on +5 V, 15 W on +5 VSB, and 3.6 W on -12 V, with maximum currents of 22 A, 3 A, and 0.3 A respectively.
Specifications
Power
- Total power: 1250 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+12V): 1249 W
- Combined power (+5V): 20 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 90%

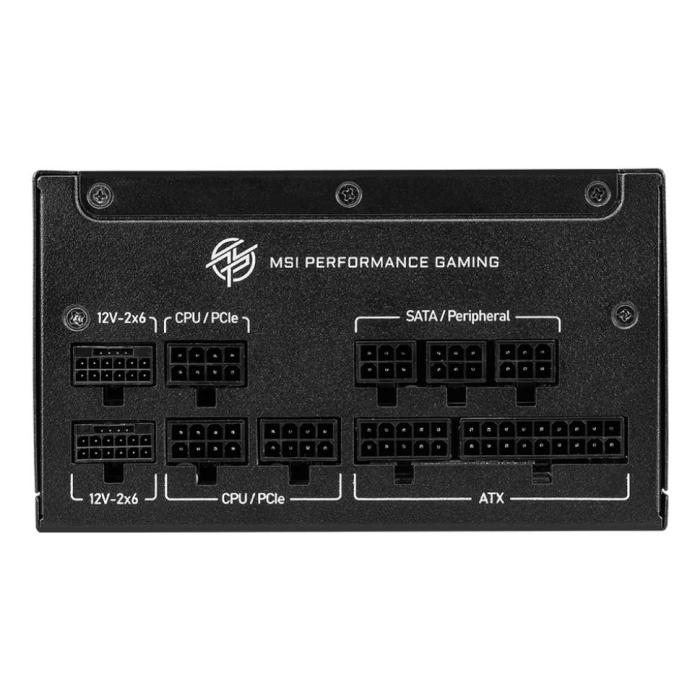

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 8
- Peripheral (Molex) power connectors (4-pin): 4
- EPS power connector (8-pin): No
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 1
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Supported motherboard form factors: ATX
- Purpose: PC/Server
- Power supply unit (PSU) form factor: ATX
Design
- Product colour: Black

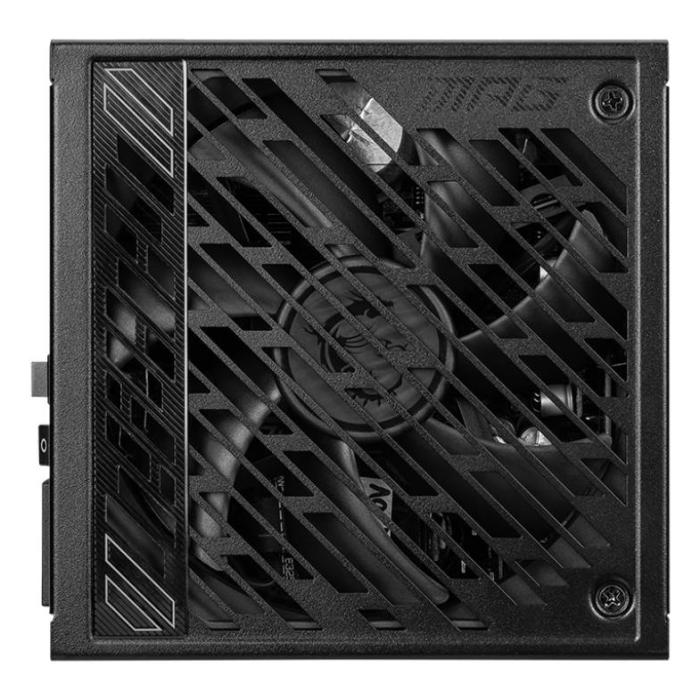

- Cooling type: Semi-passive
- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- Illumination: No
Weight & dimensions
- Width: 150 mm
- Depth: 86 mm
- Height: 150 mm
Packaging data
- Package type: Box
