Description
MSI MPG A1000GS PCIE5 power supply unit in black with a total power of 1000 W, in 24-pin ATX format. It features active power factor correction and achieves 90% efficiency. It supports an AC input voltage of 100 to 240 V with a frequency of 50/60 Hz, so it adapts to different power networks. It distributes its power across the different rails: 1000 W on the +12 V rail, 120 W on both the +5 V and 3.3 V rails, 15 W on the +5 VSB rail and 3.6 W on the -12 V rail. The maximum output currents are 83.3 A on +12 V, 22 A on +5 V, 22 A on +3.3 V, 3 A on +5 VSB and 0.3 A on -12 V. It includes a 4+4-pin EPS power connector and its motherboard power cable measures 60 cm. Its dimensions are 150 x 86 x 150 mm (width x height x depth), dimensions that should be checked before installing it in the case.
Specifications
Power
- Total power: 1000 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 1000 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 22 A
- Max output current (+12V): 83.3 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 90%

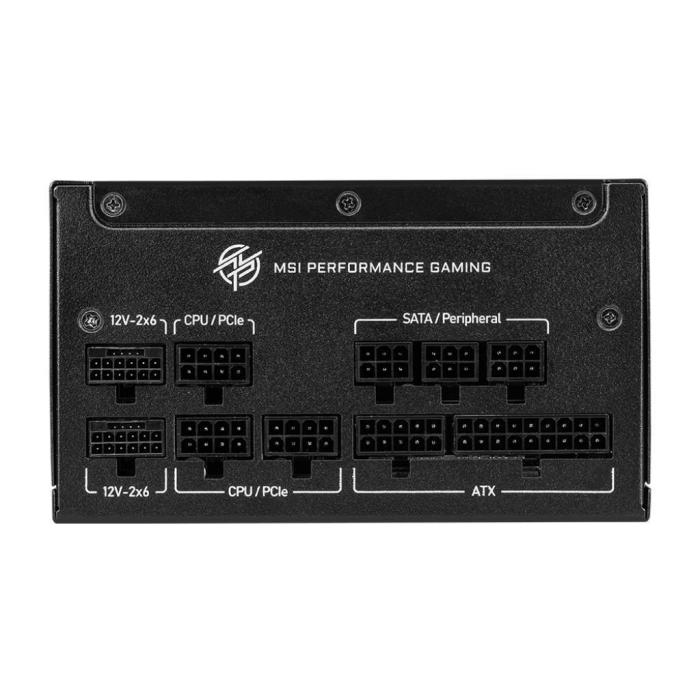

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 8
- Peripheral (Molex) power connectors (4-pin): 4
- EPS power connector (8-pin): No
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 1
- PCI Express power connectors (16-pin): 2
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Bearing technology: FDB
Design
- Product colour: Black

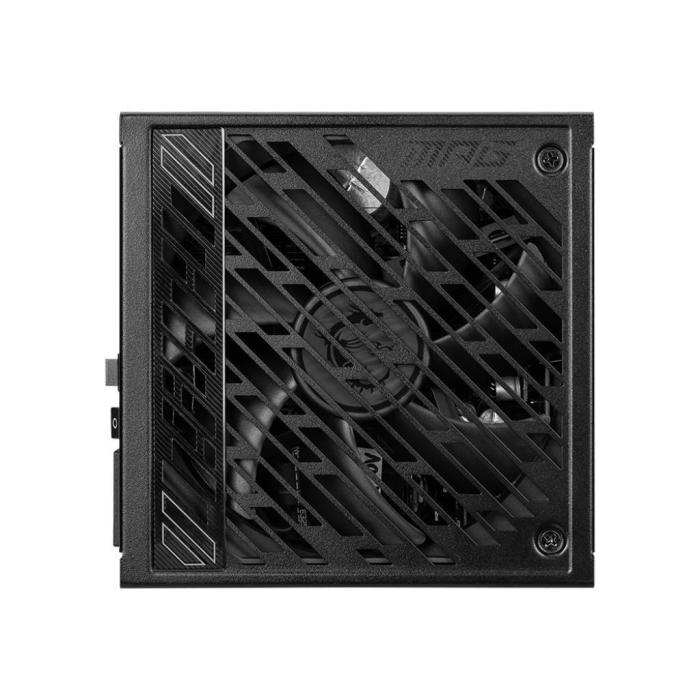

- Cooling type: Active
- Fan diameter: 13.5 cm
- Illumination: No
Weight & dimensions
- Width: 150 mm
- Depth: 150 mm
- Height: 86 mm
