Description
The LEVELONE Fast Ethernet PoE switch offers five RJ-45 Ethernet ports, four of which are PoE, with 120 W of power to supply network devices through the cable itself. It features a DC input power socket and supports the IEEE 802.3, IEEE 802.3af, IEEE 802.3u and IEEE 802.3x standards. Thanks to auto-negotiation, Auto MDI/MDI-X support and full duplex mode, it adapts the connection automatically according to the linked device. It works with 10BASE-T and 100BASE-TX copper cabling over Cat5 cables and reaches a switching capacity of 1 Gbit/s. Its store-and-forward function manages traffic with a MAC address table of 1024 entries and packet forwarding rates of 14880 pps at 10 Mbps and 14800 pps at 100 Mbps. It has a compact format with dimensions of 120 x 28 x 90 mm, a weight of 800 g and a black and grey colour that integrates easily into any installation.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

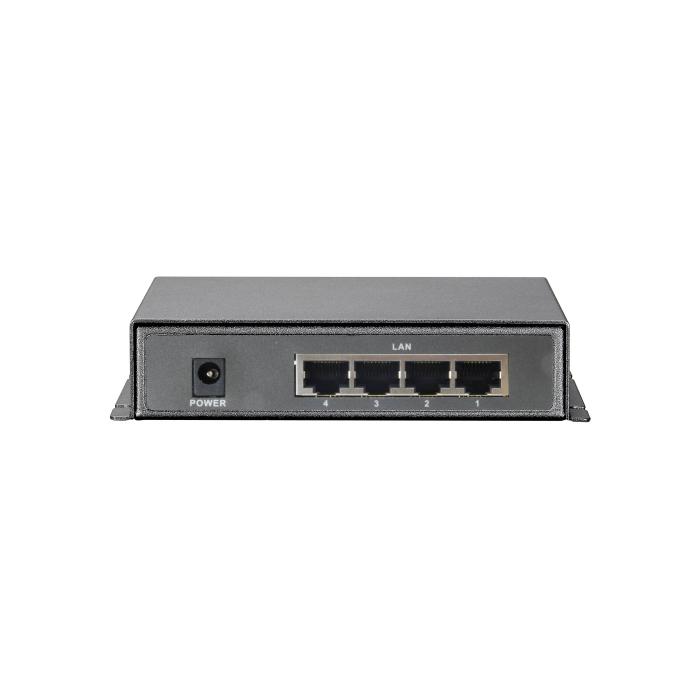

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
- Cable types supported: Cat5
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 1 Gbit/s
- MAC address table: 1024 entries
- Store-and-forward: Yes
- Packet forwarding rate (100 Mbps): 14800 pps
- Packet forwarding rate (10 Mbps): 14880 pps
Design
- Rack mounting: No
- Stackable: No
- Product colour: Black, Grey

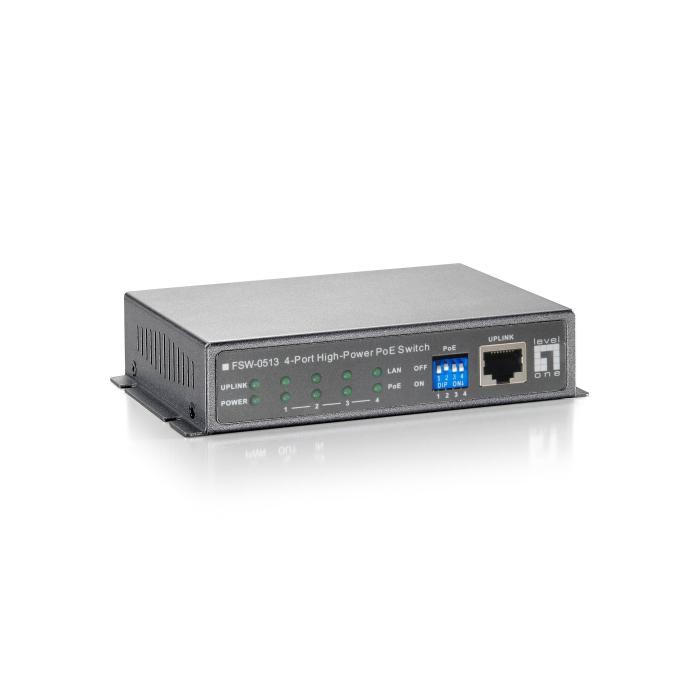

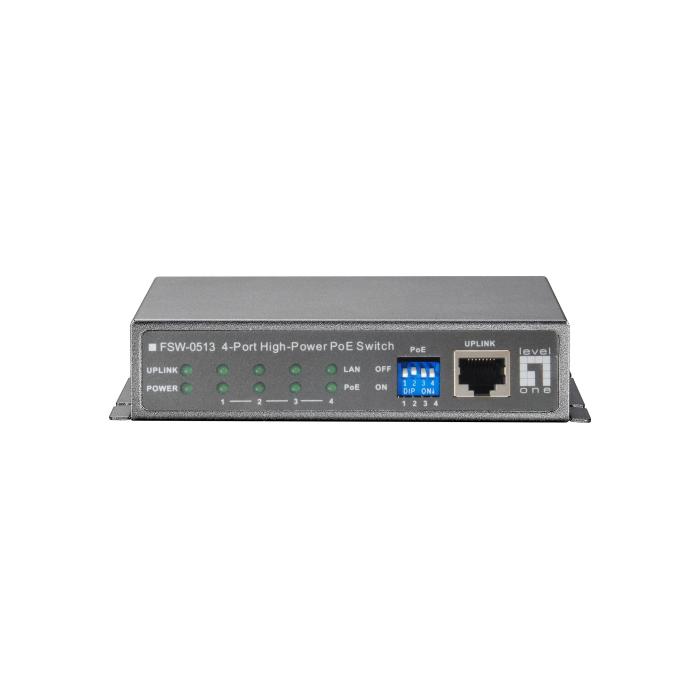

- LED indicators: Uplink, LAN, PoE, Power
- On/off switch: Yes
Performance
- Buffer size: 48 KB
Power
- Output voltage: 56 V
- Output current: 2.15 A
- Power consumption (typical): 120 W
- Power protection features: Over current, Short circuit
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 1
- Power over Ethernet (PoE) power per port: 52 W
- Total Power over Ethernet (PoE) budget: 120 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 120 mm
- Depth: 90 mm
- Height: 28 mm
- Weight: 800 g
Packaging content
- Cables included: AC
- Manual: Yes
Packaging data
- AC adapter included: Yes
- Package width: 232 mm
- Package depth: 148 mm
- Package height: 80 mm
Certificates
- Certification: FCC, CE
Logistics data
- Country of origin: Taiwan
- Harmonized System (HS) code: 85176990
