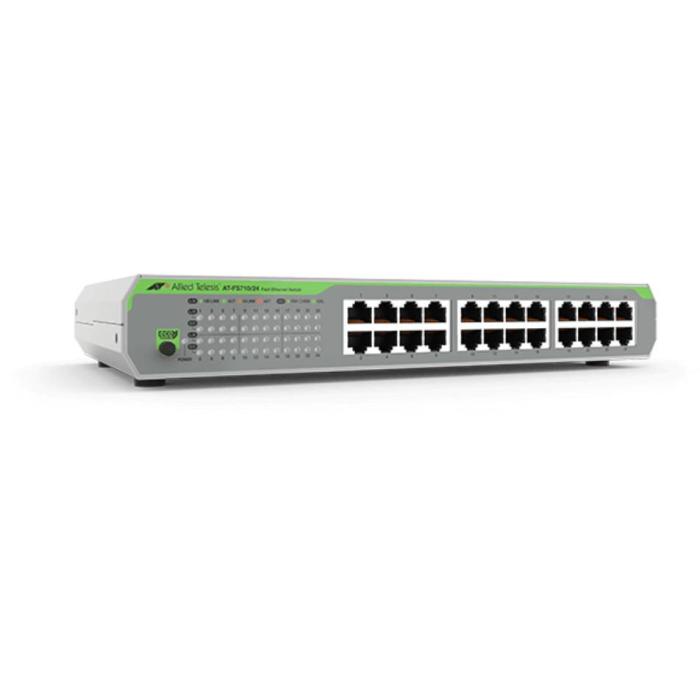

Allied Telesis FS710/24 Unmanaged Fast Ethernet (10/100) Grey

233.00 €
192.56 € without VAT

More info

Brand: ALLIED TELESIS
SKU: 83282 PRC: 268334 EAN: 767035211930 PN: AT-FS710/24-50

Description

Allied Telesis FS710/24, Unmanaged, Fast Ethernet (10/100), Full duplex, Rack mounting, Wall mountable

Specifications

Management features

  • Switch type: Unmanaged

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Network

  • Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
  • Full duplex: Yes
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes

Data transmission

  • Switching capacity: 4.8 Gbit/s
  • Throughput: 3.57 Mpps
  • MAC address table: 8000 entries
  • Jumbo frames support: Yes
  • Jumbo frames: 2000
  • Packet forwarding rate (100 Mbps): 148800 pps
  • Packet forwarding rate (10 Mbps): 14880 pps
  • Packet buffer memory: 0.256 MB

Security

  • BPDU filtering/protection: Yes

Design

  • Rack mounting: Yes
  • Product colour: Grey
  • Wall mountable: Yes

Power

  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (max): 5.3 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -25 - 70 °C
  • Operating relative humidity (H-H): 5 - 90%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 2000 m

Weight & dimensions

  • Width: 305 mm
  • Depth: 180 mm
  • Height: 44 mm
  • Weight: 1.6 kg

Certificates

  • Certification: FCC 15 B / A, VCCI A, FCC A, EN55032 A, CISPR 32 A, RCM A UL60950-1, CSA C22.2 No.60950-1, EN60950-1(TUV), CE RoHS

Logistics data

  • Harmonized System (HS) code: 85176990
