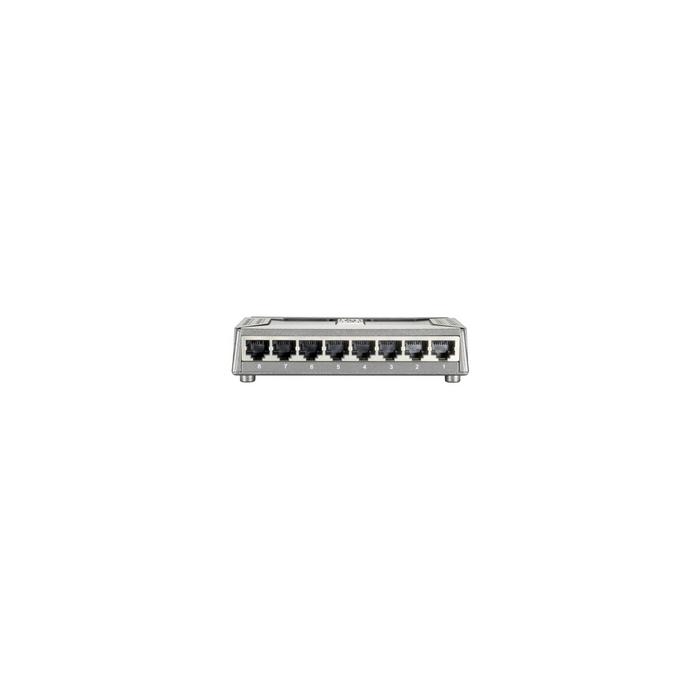

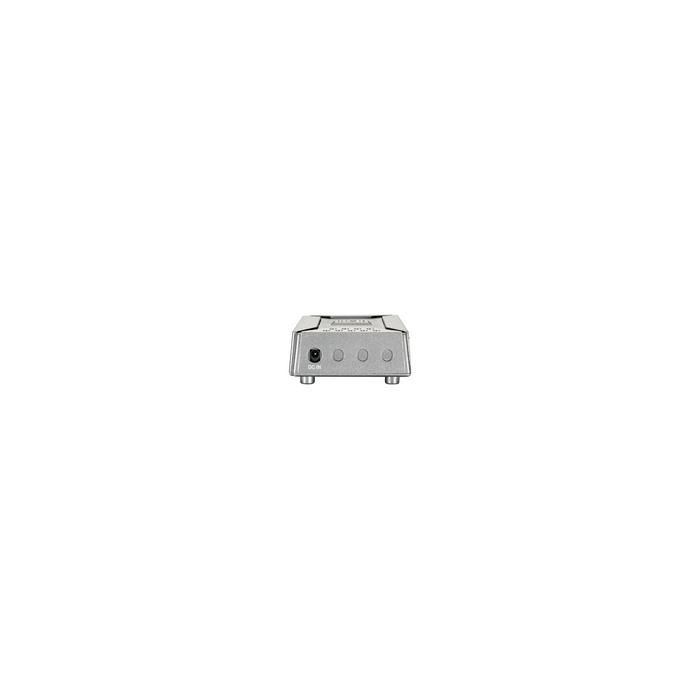

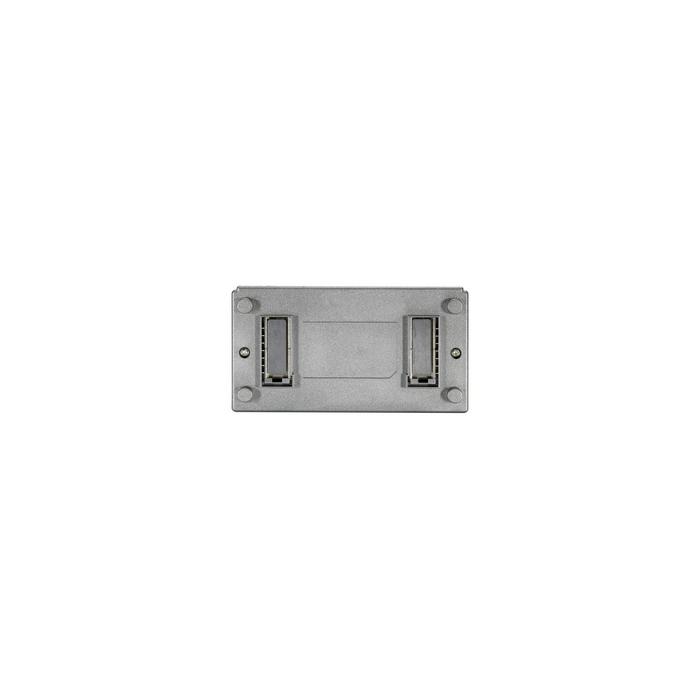

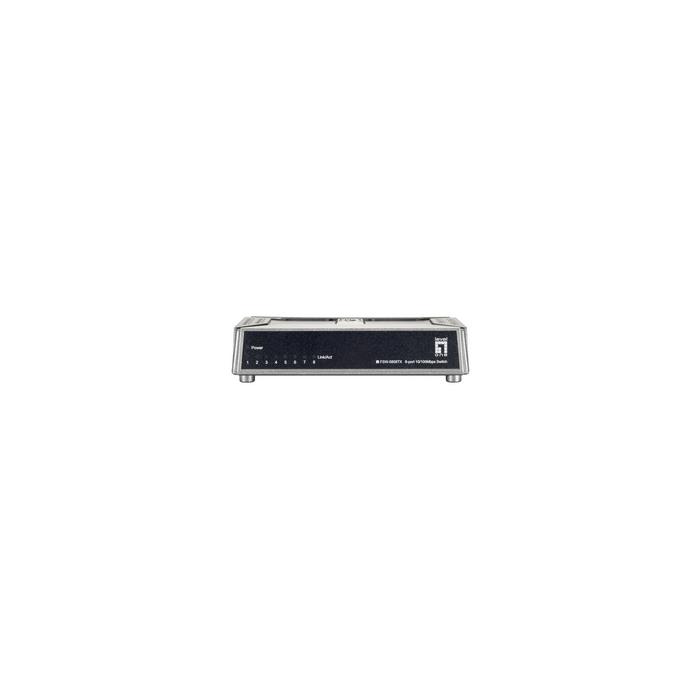

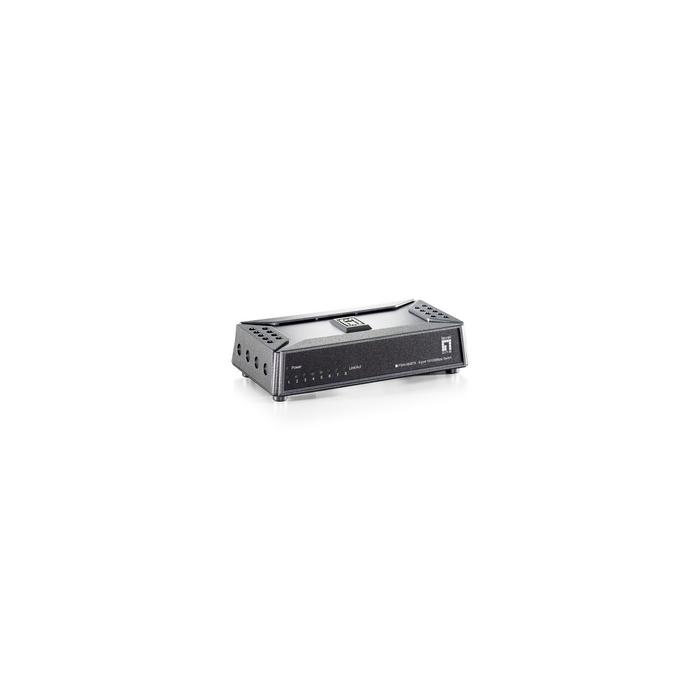

LevelOne 8-Port Fast Ethernet Switch

25.00 €
20.66 € without VAT

More info

Brand: LEVELONE
SKU: 71853 PRC: 31303 EAN: 4015867109540 PN: FSW-0808TX

Description

LevelOne 8-Port Fast Ethernet Switch, Unmanaged, Fast Ethernet (10/100), Full duplex

Specifications

Management features

  • Switch type: Unmanaged

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Power connector: DC-in jack

Network

  • Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
  • Full duplex: Yes
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes

Data transmission

  • Switching capacity: 1.6 Gbit/s
  • MAC address table: 1024 entries
  • Store-and-forward: Yes
  • Packet forwarding rate (100 Mbps): 148000 pps
  • Packet forwarding rate (10 Mbps): 14880 pps

Design

  • Rack mounting: No
  • Stackable: No
  • Product colour: Grey
  • LED indicators: Activity, Link, Power

Performance

  • Buffer size: 96 KB

Power

  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Output voltage: 5 V
  • Output current: 1 A
  • Power consumption (typical): 2.8 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 5 - 90%
  • Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

  • Width: 125 mm
  • Depth: 69 mm
  • Height: 30 mm

Packaging content

  • Quick start guide: Yes

Packaging data

  • AC adapter included: Yes
  • Package width: 75 mm
  • Package depth: 130 mm
  • Package height: 90 mm
  • Package weight: 300 g

Certificates

  • Certification: FCC, CE, RoHS

Logistics data

  • Country of origin: China
  • Harmonized System (HS) code: 85176990
