Description

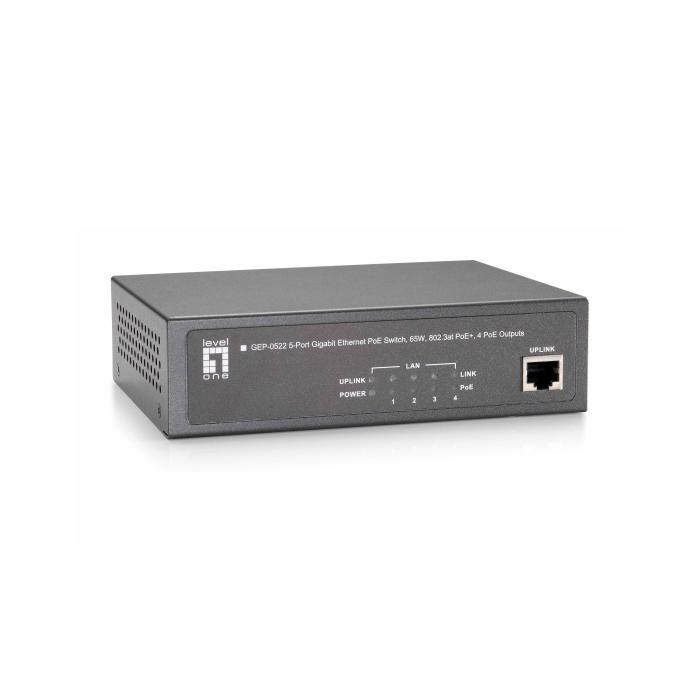

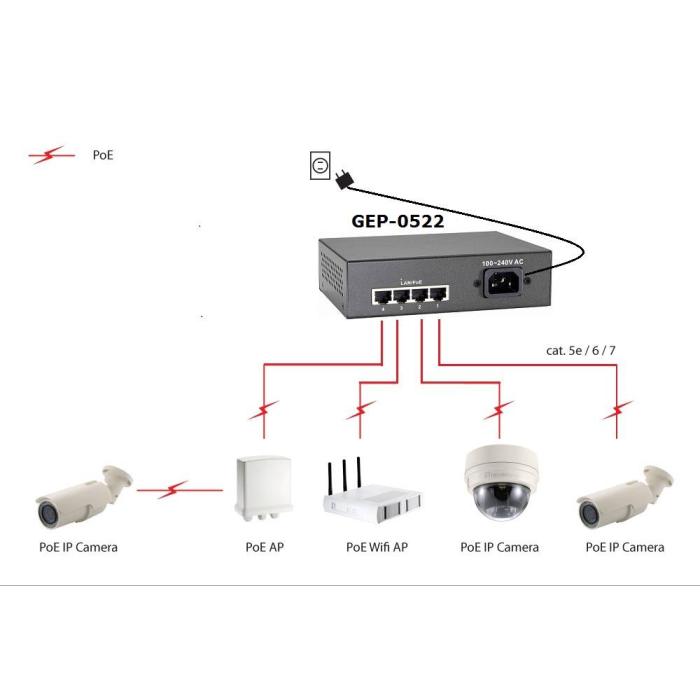

Connect up to five network devices with this LevelOne Gigabit Ethernet switch, which includes an additional console and RJ-45 switching port. Its grey casing houses five 10/100/1000 ports with PoE support, allowing compatible devices to be powered directly from the unit. The GEP-0522 model handles jumbo frames up to 9000 bytes and features a MAC address table of 2000 entries, with a 128 KB buffer for efficient forwarding. Based on store-and-forward switching, it achieves a forwarding rate of 1,480,000 packets per second at 1 Gbps, complying with standards such as IEEE 802.3af and 802.3at.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 1
- Console port: RJ-45
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
Data transmission
- MAC address table: 2000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet forwarding rate (1 Gbps): 1480000 pps
- Packet forwarding rate (100 Mbps): 148000 pps
- Packet forwarding rate (10 Mbps): 14880 pps
Design
- Product colour: Grey
- LED indicators: Activity, PoE, Power
Performance
- Buffer size: 128 KB
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 2 A
- Power consumption (max): 65 W
- Power protection features: Over current, Short circuit
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 4
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 65 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 122 mm
- Depth: 44 mm
- Height: 160 mm
- Weight: 800 g
Packaging content
- Cables included: AC
- Quick start guide: Yes
Packaging data
- Package type: Box
- Package width: 145 mm
- Package depth: 80 mm
- Package height: 235 mm
- Package weight: 1.1 kg
Logistics data
- Country of origin: Taiwan
- Master (outer) case width: 310 mm
- Master (outer) case length: 252 mm
- Master (outer) case height: 422 mm
- Harmonized System (HS) code: 85176990
- Master (outer) case gross weight: 12.5 kg
- Products per master (outer) case: 20 pc(s)
