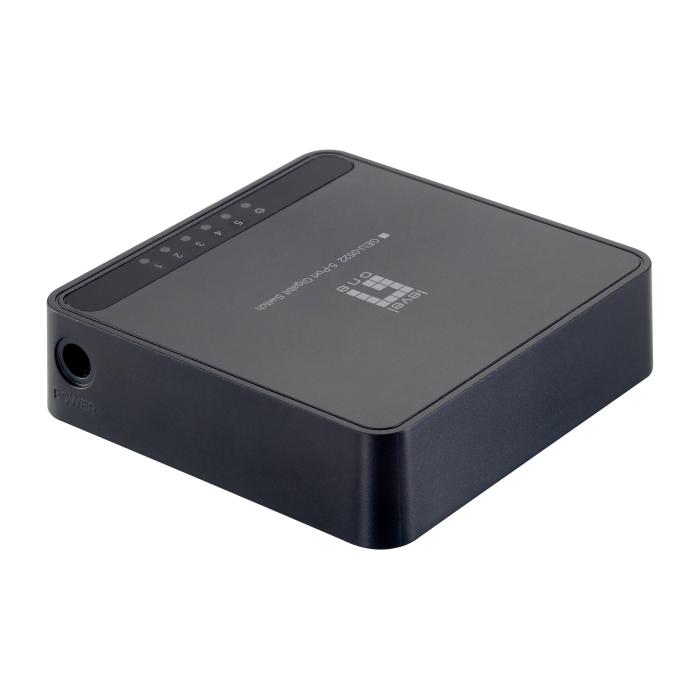

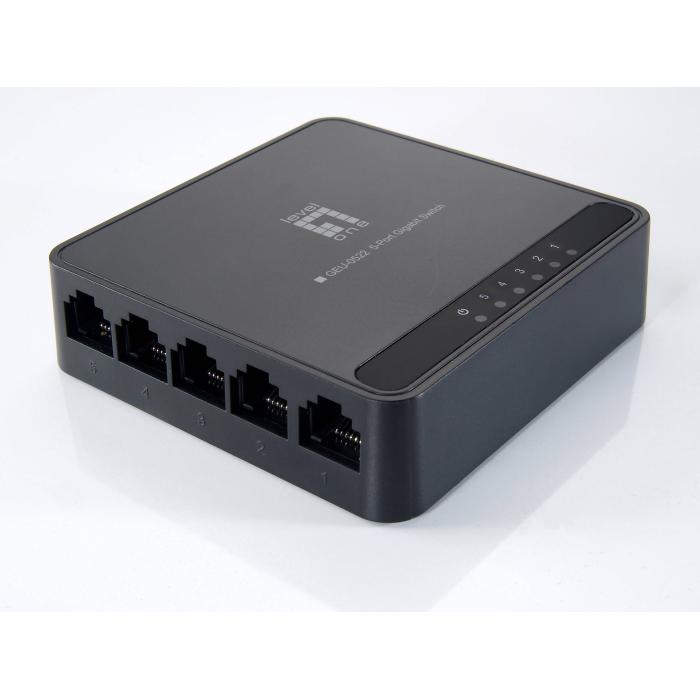

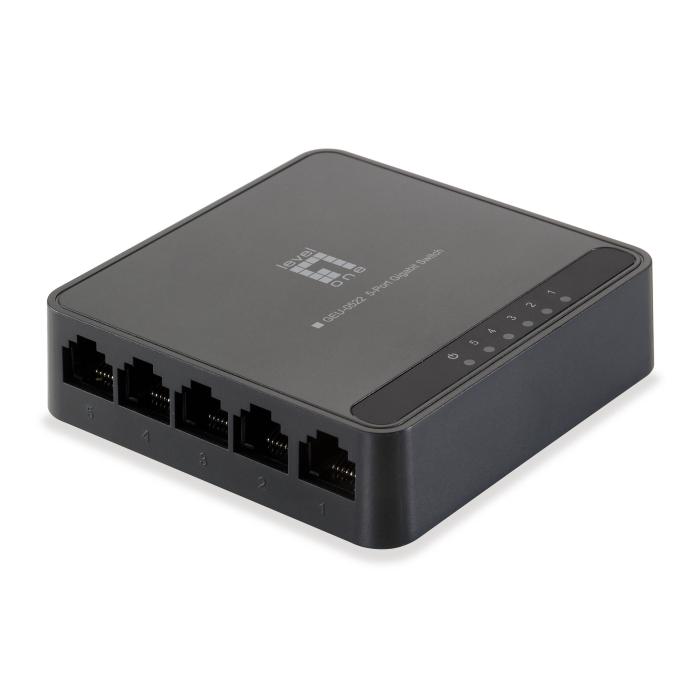

LevelOne 5-Port Gigabit Switch

21.00 €
17.36 € without VAT

More info

Brand: LEVELONE
SKU: 81582 PRC: 241472 EAN: 4015867202500 PN: GEU-0522

Description

Specifications

Ports & interfaces

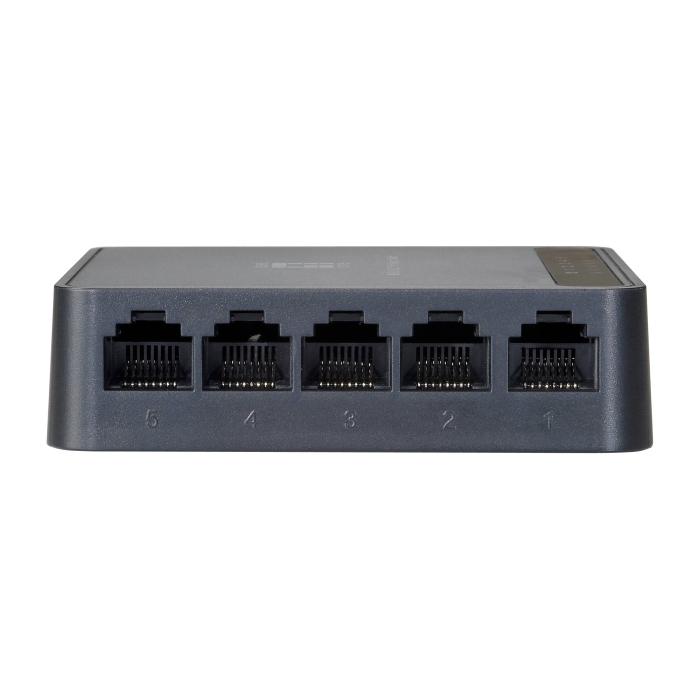

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • MAC address auto-learning supported: Yes
  • MAC address auto-aging supported: Yes

Data transmission

  • Switching capacity: 10 Gbit/s
  • MAC address table: 1000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet forwarding rate (1 Gbps): 1488100 pps
  • Packet forwarding rate (100 Mbps): 148810 pps
  • Packet forwarding rate (10 Mbps): 14880 pps

Design

  • Stackable: No
  • Product colour: Black
  • LED indicators: Activity, Link, Power

Performance

  • Buffer size: 64 KB

Power

  • Input current: 0.6 A
  • Input voltage: 5 V

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

  • Width: 86 mm
  • Depth: 23 mm
  • Height: 89 mm
  • Weight: 71.4 g

Packaging content

  • Quick start guide: Yes

Packaging data

  • AC adapter included: Yes
  • Package type: Box
  • Package width: 95 mm
  • Package depth: 82 mm
  • Package height: 98 mm
  • Package weight: 184 g

Certificates

  • Certification: CE, FCC

Logistics data

  • Country of origin: China
  • Master (outer) case width: 495 mm
  • Master (outer) case length: 191 mm
  • Master (outer) case height: 516 mm
  • Harmonized System (HS) code: 85176990
  • Master (outer) case gross weight: 10.2 kg
  • Products per master (outer) case: 50 pc(s)
