Description

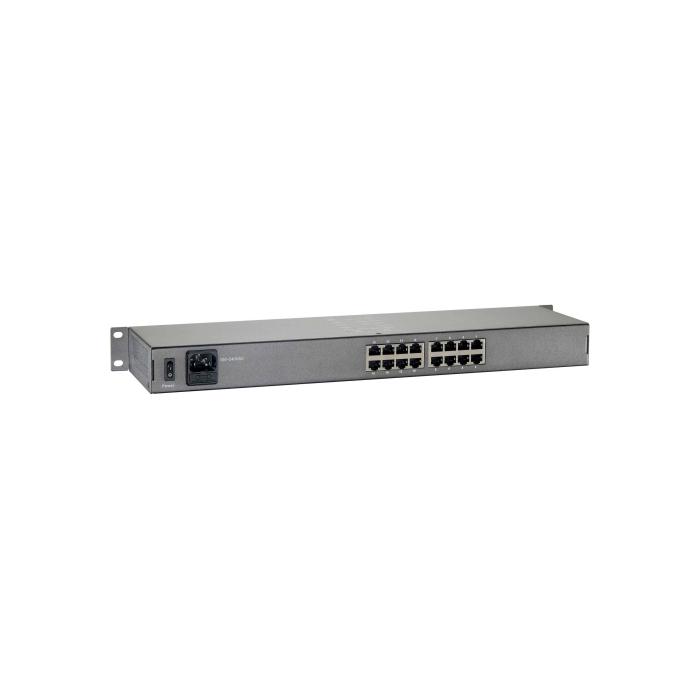

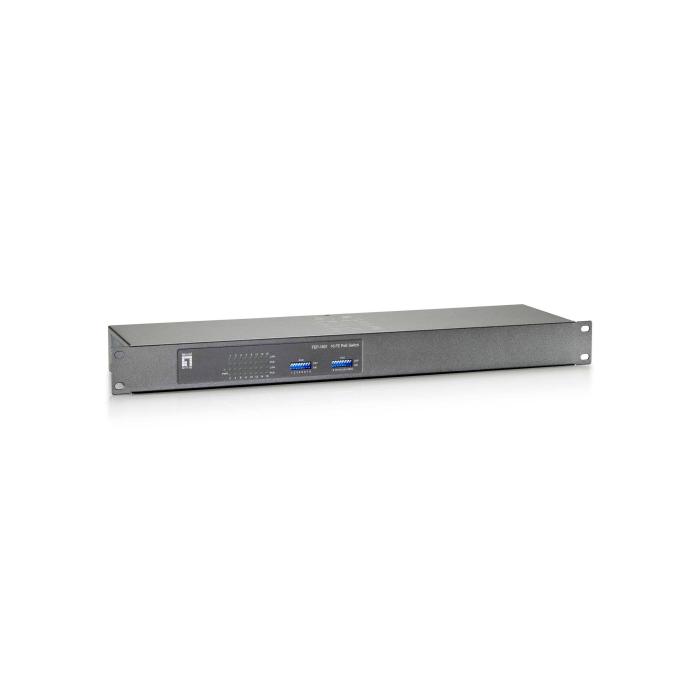

The LevelOne FEP-1601 Fast Ethernet switch is a 16-port RJ-45 Fast Ethernet (10/100) device with PoE power, designed to expand the network of your office or installation. It offers a packet forwarding rate of 14880 pps at 10 Mbps and 148000 pps at 100 Mbps, and a switching capacity of 3.2 Gbit/s. It supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards, with auto-negotiation, full duplex and flow control, as well as auto MDI/MDI-X to simplify cabling over 10BASE-T and 100BASE-TX. Its store-and-forward operation relies on a MAC address table of 4096 entries. It includes an on/off switch, LED indicators for activity, PoE and power, and allows rack mounting. Its power connector is a DC input socket. It comes in a grey metallic colour, with dimensions of 480 x 44 x 118 mm (width x height x depth) and a weight of 2.2 kg.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 3.2 Gbit/s
- MAC address table: 4096 entries
- Store-and-forward: Yes
- Packet forwarding rate (100 Mbps): 148000 pps
- Packet forwarding rate (10 Mbps): 14880 pps
Design
- Rack mounting: Yes
- Product colour: Grey, Metallic
- LED indicators: Activity, PoE, Power
- On/off switch: Yes
Performance
- Buffer size: 160 KB
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 5 A
- Power protection features: Over current, Short circuit
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 16
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 240 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 480 mm
- Depth: 118 mm
- Height: 44 mm
- Weight: 2.2 kg
Packaging content
- Cables included: AC
- Manual: Yes
Packaging data
- Package width: 222 mm
- Package depth: 146 mm
- Package height: 78 mm
- Package weight: 2.6 kg
Certificates
- Certification: FCC, CE, RoHS
Logistics data
- Country of origin: Taiwan
- Harmonized System (HS) code: 85176990
