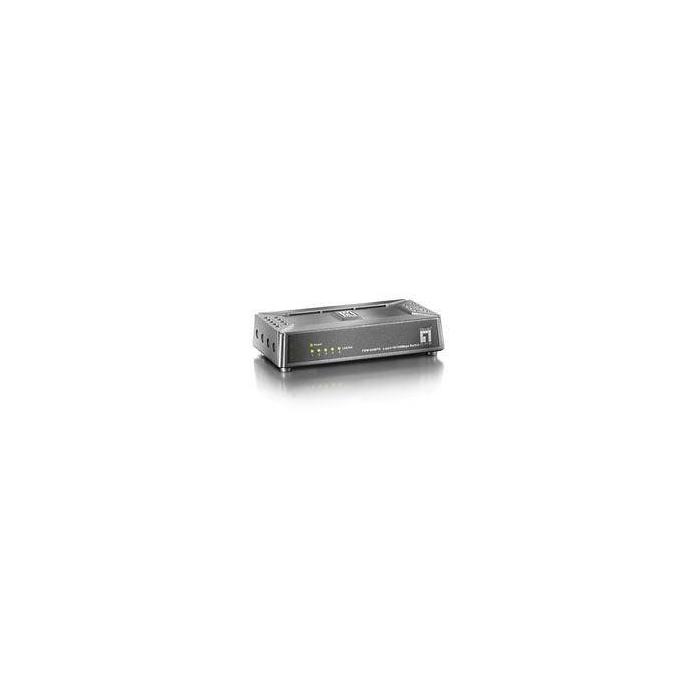

LevelOne 5-Port Fast Ethernet Switch

22.00 €
18.18 € without VAT

LevelOne 5-Port Fast Ethernet Switch, Unmanaged, Fast Ethernet (10/100), Full duplex.   More info

Brand: LEVELONE
SKU: 71852 PRC: 31302 EAN: 891042001298 PN: FSW-0508TX

Description

5 x 10/100Base-TX RJ-45, 2K MAC, 1Gbps, 2.5W, IEEE 802.3/u/x

Specifications

Management features

  • Switch type: Unmanaged

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Power connector: DC-in jack

Networking

  • Networking standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T,100BASE-TX
  • Full duplex: Yes
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes

Data transmission

  • Switching capacity: 1 Gbit/s
  • MAC address table: 2048 entries
  • Store-and-forward: Yes
  • Packet forwarding rate (100 Mbps): 148000 pps
  • Packet forwarding rate (10 Mbps): 14880 pps

Design

  • Rack mounting: No
  • Stackable: No
  • Product colour: Black,Grey
  • LED indicators: Activity,Link,Power
  • Country of origin: China
  • Certification: FCC, CE, RoHS

Performance

  • Buffer size: 48 KB

Power

  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Output voltage: 5 V
  • Output current: 1 A
  • Power consumption (typical): 2.5 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 5 - 90%
  • Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

  • Width: 125 mm
  • Depth: 69 mm
  • Height: 30 mm

Packaging data

  • Quick start guide: Yes
  • AC adapter included: Yes
  • Package width: 120 mm
  • Package depth: 100 mm
  • Package height: 156 mm
  • Package weight: 400 g
