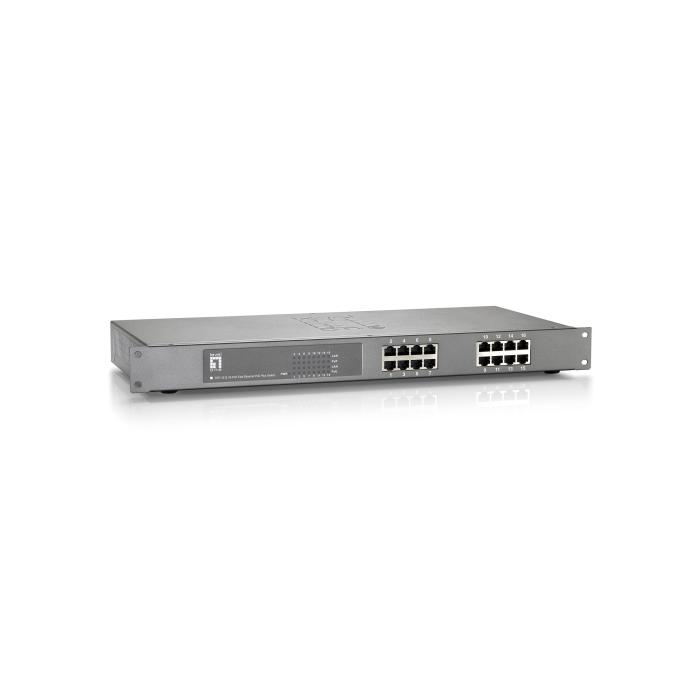

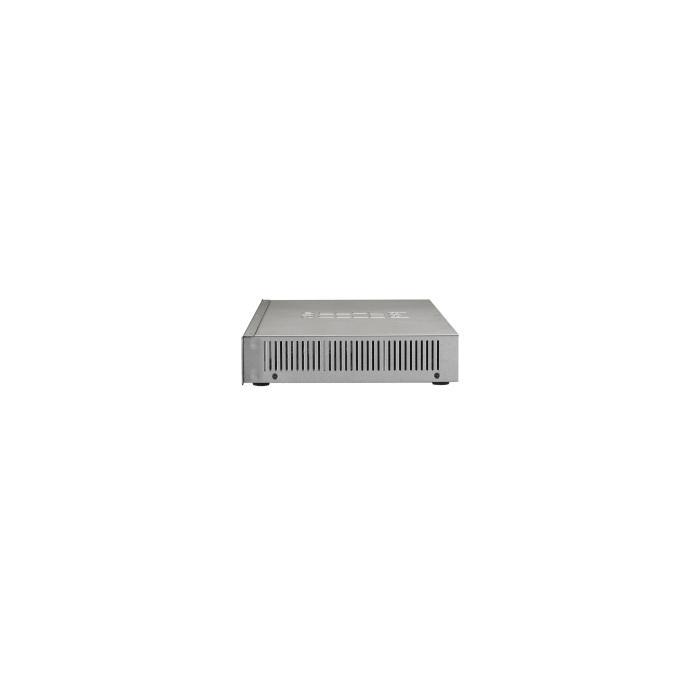

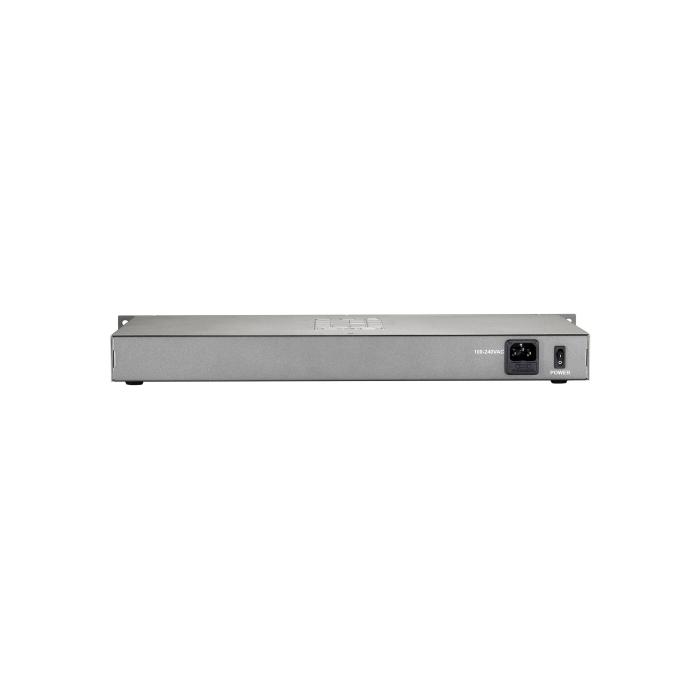

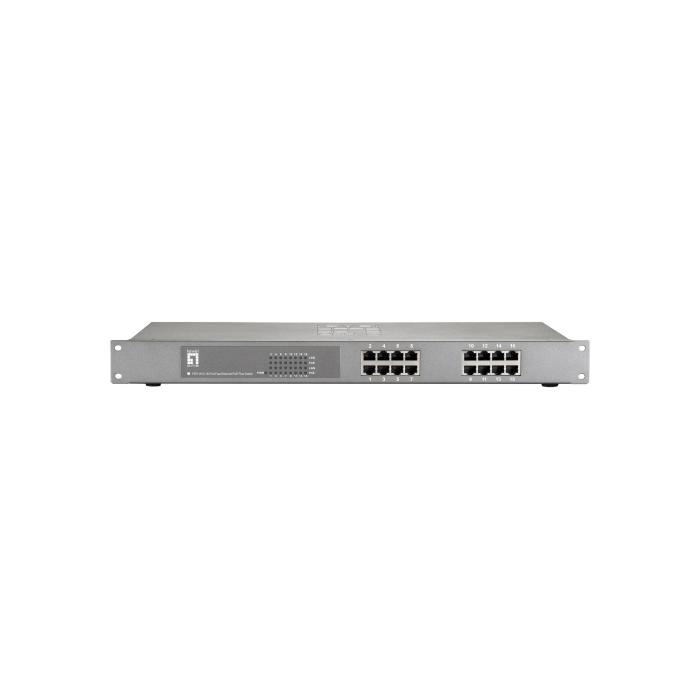

Name: LevelOne 16-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 380W
Brand: LEVELONE
Price: 612.02 EUR
Availability: InStock

LevelOne 16-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 380W

612.02 €

505.80 € without VAT

Amount

Brand: LEVELONE

SKU: 120197 PRC: 621710 EAN: 4015867199893 PN: 52085403

Description

LevelOne 16-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 380W, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)

Specifications

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Network

Flow control support: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Cable types supported: Cat3, Cat4, Cat5
Full duplex: Yes

Data transmission

Switching capacity: 3.2 Gbit/s
MAC address table: 4000 entries
Store-and-forward: Yes
Packet forwarding rate (100 Mbps): 148000 pps
Packet forwarding rate (10 Mbps): 148000 pps

Design

Product colour: Grey
Housing material: Metal
LED indicators: Activity, PoE, Power

Performance

Buffer size: 160 KB
Plug and Play: Yes

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 5 A
Power consumption (typical): 380 W
Power protection features: Over current

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE) power per port: 30 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 200 mm
Depth: 480 mm
Height: 44 mm
Weight: 2.85 kg

Packaging content

Cables included: AC
Quick start guide: Yes

Packaging data

Package type: Box
Rubber feet: Yes
Package width: 260 mm
Package depth: 535 mm
Package height: 90 mm
Package weight: 3.7 kg

Certificates

Certification: CE, FCC

Logistics data

Country of origin: Taiwan
Master (outer) case width: 520 mm
Master (outer) case length: 560 mm
Master (outer) case height: 280 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 19.8 kg
Products per master (outer) case: 5 pc(s)
