Description

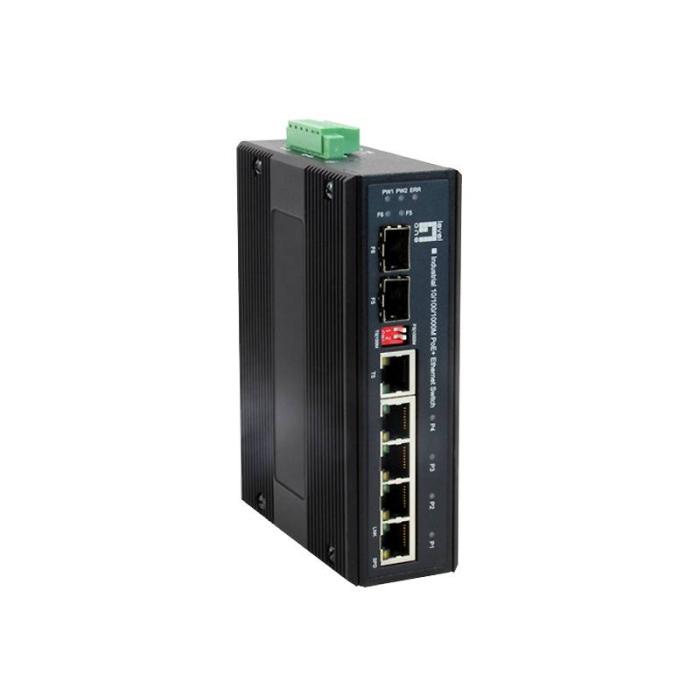

LevelOne 6-Port Gigabit PoE Industrial Switch, 802.3at/af PoE, 4 PoE Outputs, 1 x SFP, 1 x SFP/RJ45 Combo, -40°C to 75°C, DIN-Rail, 126W, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 1
- SFP module slots quantity: 1
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 12 Gbit/s
- MAC address table: 1024 entries
- Store-and-forward: Yes
- Jumbo frames: 10000
- Packet forwarding rate (1 Gbps): 148800 pps
- Packet forwarding rate (100 Mbps): 148000 pps
- Packet forwarding rate (10 Mbps): 14880 pps
- Packet buffer memory: 1 MB
Design
- Product colour: Black
- LED indicators: Activity, Link, Power
- Wall mountable: Yes
- DIN rail mounting: Yes
Power
- Input voltage: 48 - 55 V
- Power consumption (typical): 6 W
- Power protection features: Overload, Reverse polarity
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 126 W
Other features
- Terminal block port: Yes
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%

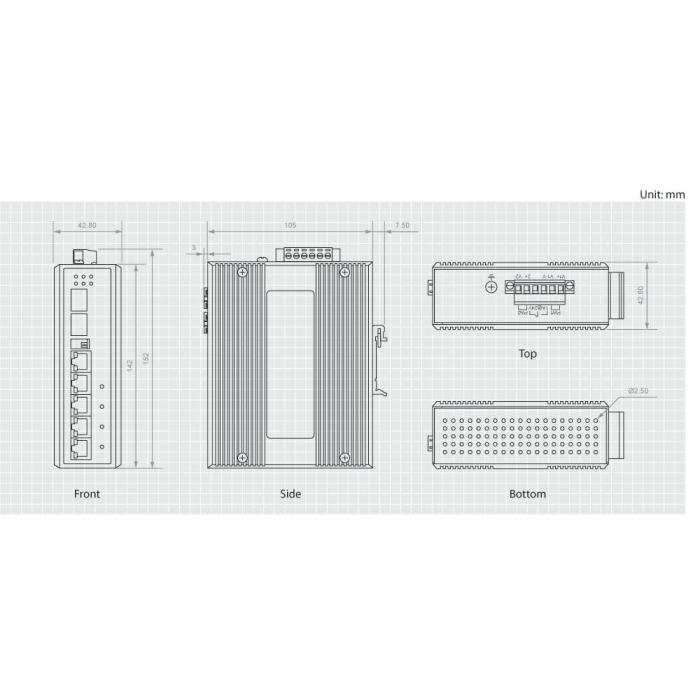

Weight & dimensions
- Width: 40 mm
- Depth: 105 mm
- Height: 38 mm
- Weight: 720 g
Packaging content
- Quick start guide: Yes
Packaging data
- Package type: Box
- Package width: 215 mm
- Package depth: 165 mm
- Package height: 65 mm
- Package weight: 120 g
Certificates
- Certification: FCC Part 15 Subpart B Class A CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 E
Logistics data
- Country of origin: Taiwan
- Harmonized System (HS) code: 85176990
