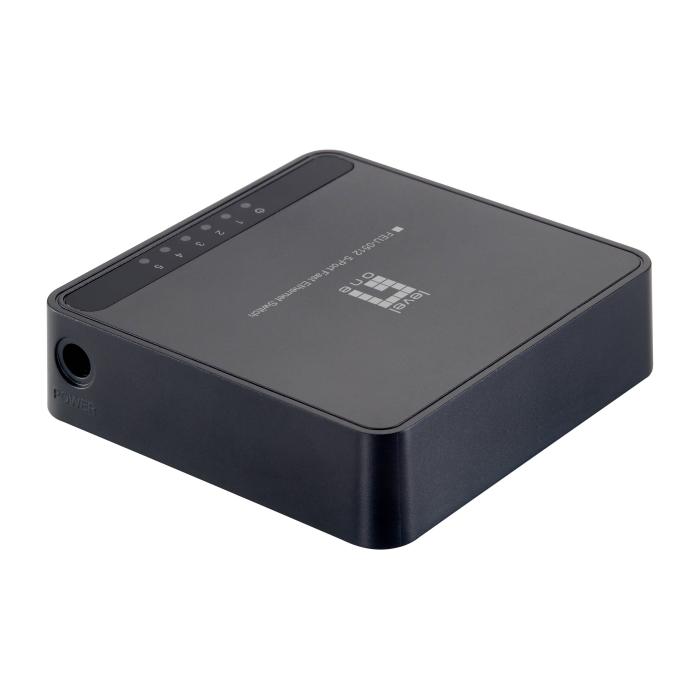

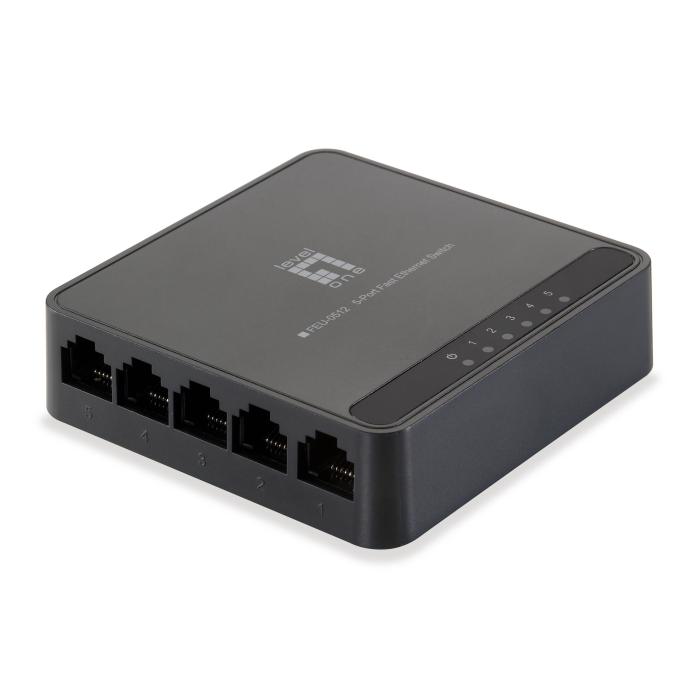

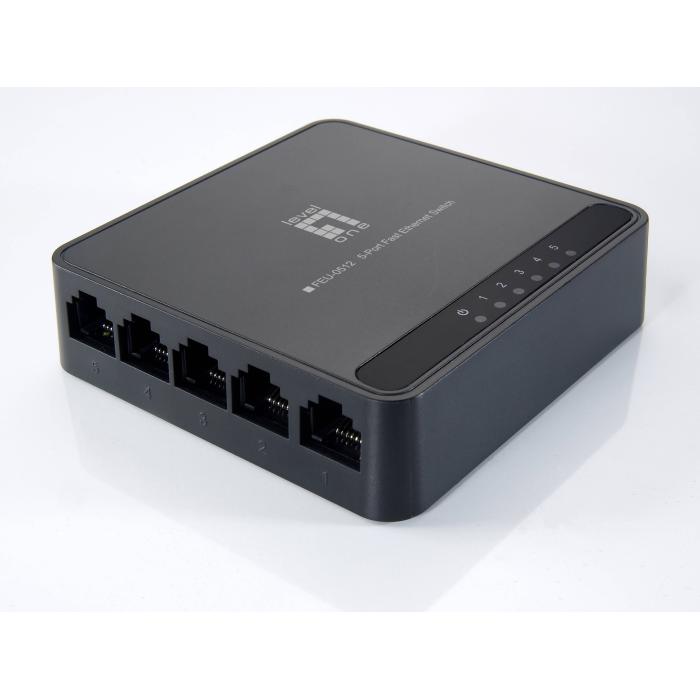

LevelOne 5-Port Fast Ethernet Switch

$10.47
$10.47 without VAT

LevelOne 5-Port Fast Ethernet Switch.   More info

Brand: LEVELONE
SKU: 84048 PRC: 280533 EAN: 4015867206676 PN: FEU-0512

Description

Specifications

Management features

  • Switch type: Unmanaged

Ports & interfaces

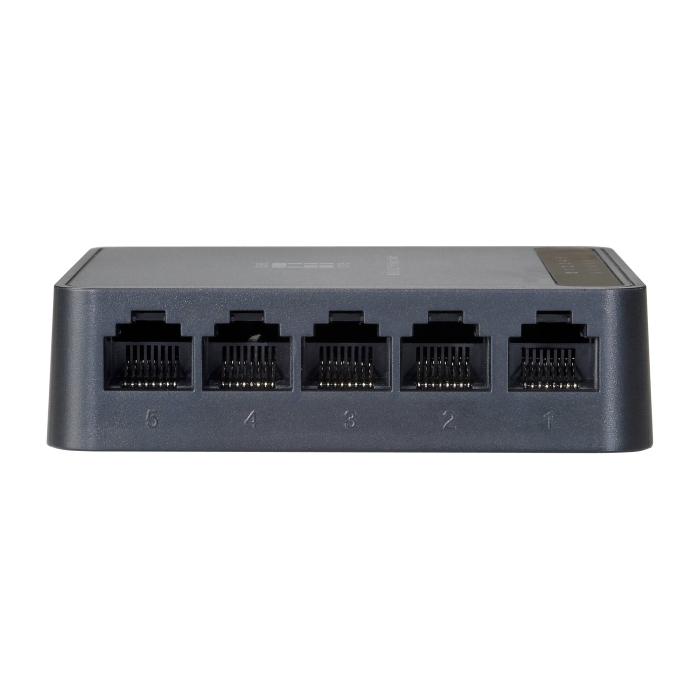

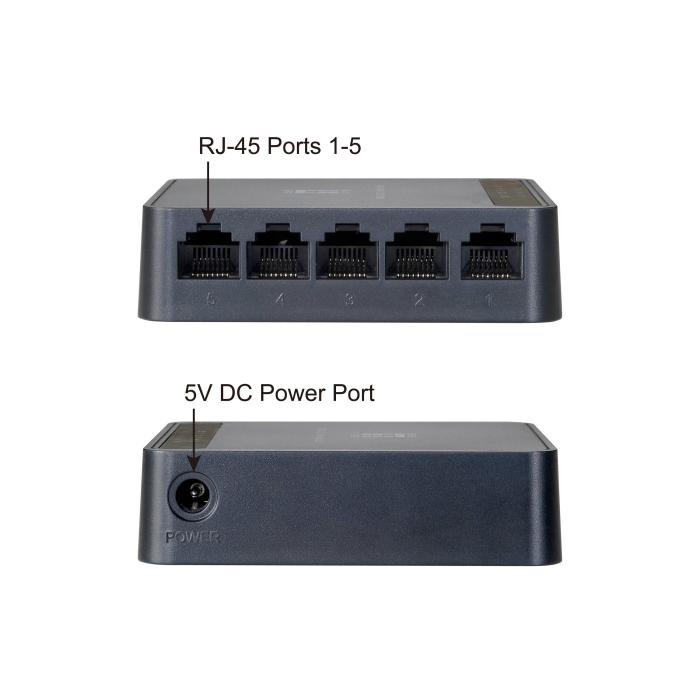

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Fast Ethernet (copper) ports quantity: 5

Network

  • Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Full duplex: Yes
  • Half duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • MAC address auto-learning supported: Yes
  • MAC address auto-aging supported: Yes

Data transmission

  • Switching capacity: 1 Gbit/s
  • MAC address table: 1000 entries
  • Packet buffer memory: 0.744 MB

Design

  • Product colour: Black
  • LED indicators: Activity, Link, Power

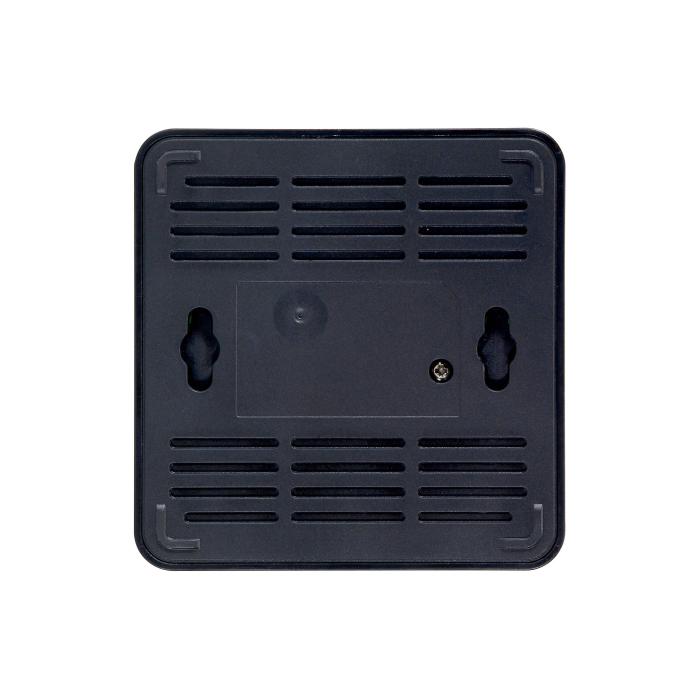

  • Wall mountable: No

Performance

  • Fanless: Yes

Power

  • Power source: DC
  • Power supply included: Yes

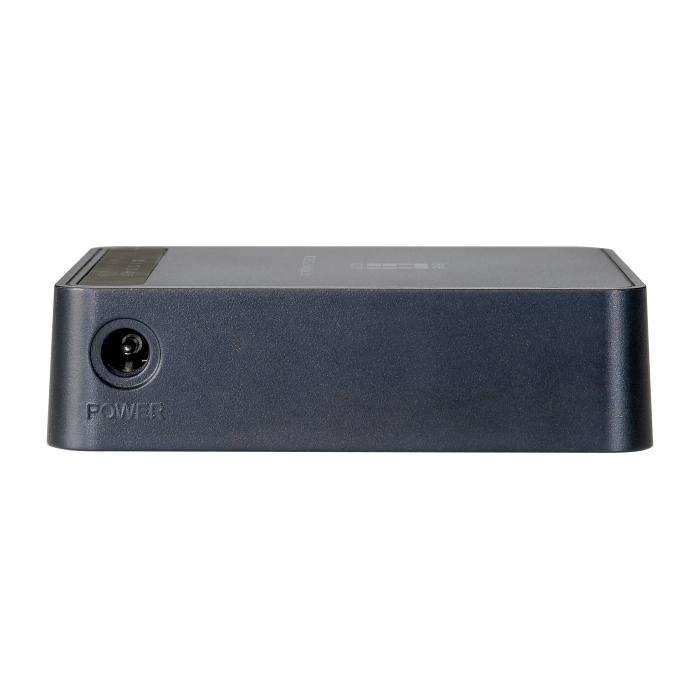

  • DC input voltage: 5 V
  • Input current: 0.55 A
  • Power consumption (typical): 1.3 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

  • Width: 88.2 mm
  • Depth: 52.7 mm
  • Height: 21.8 mm
  • Weight: 47 g

Packaging content

  • Quick start guide: Yes

Packaging data

  • AC adapter included: Yes
  • Package type: Box
  • Package width: 123 mm
  • Package depth: 80 mm
  • Package height: 83 mm
  • Package weight: 140 g

Sustainability

  • Sustainability compliance: Yes

Technical details

  • Master (outer) cases per pallet (air): 24 pc(s)
  • Pallet gross length: 80 cm
  • Pallet gross width: 120 cm
  • Pallet height (air): 147 cm

Certificates

  • Compliance certificates: CE, RoHS, UKCA

Logistics data

  • Country of origin: China
  • Master (outer) case width: 271 mm
  • Master (outer) case length: 430 mm
  • Master (outer) case height: 445 mm
  • Master (outer) case gross weight: 8 kg
  • Products per master (outer) case: 50 pc(s)
