Description

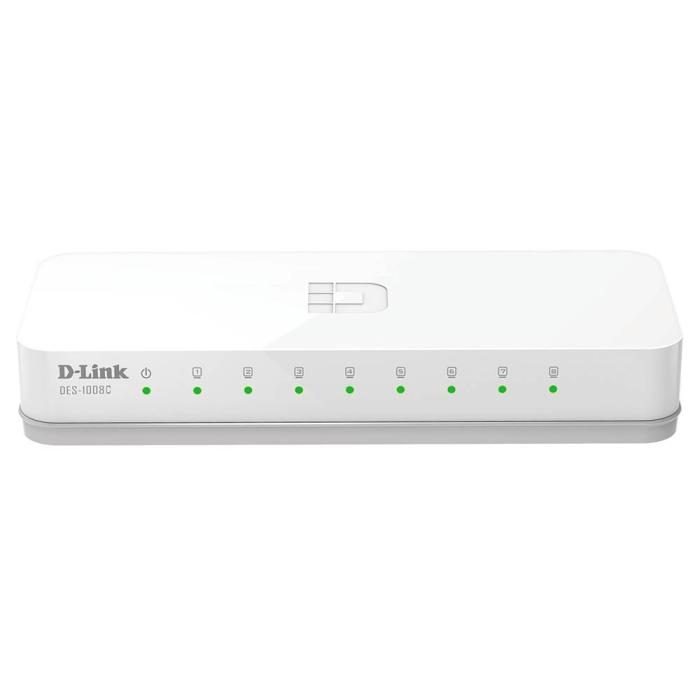

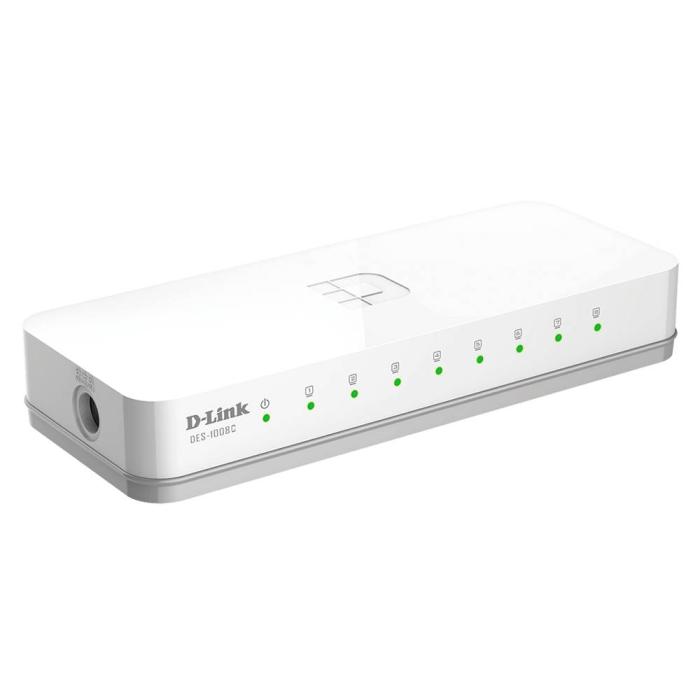

D-Link unmanaged switch with a white desktop enclosure and 8 Fast Ethernet ports (10/100) for connecting multiple network devices in your home or office. This unit features a DC input socket as the electrical connector and operates to IEEE 802.3, IEEE 802.3az, IEEE 802.3u and IEEE 802.3x standards, with transfer speeds of 10 and 100 Mbit/s. It includes flow control, auto MDI/MDI-X, auto-negotiation and full duplex mode, in addition to a switching capacity of 1.6 Gbit/s, support for jumbo frames, a packet buffer of 0.093 MB and a MAC address table with 2000 entries. Its store-and-forward mode achieves a forwarding rate of 1.19 Mpps, with 14880 pps for 10 Mbps packets, and it does not support 10G.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces

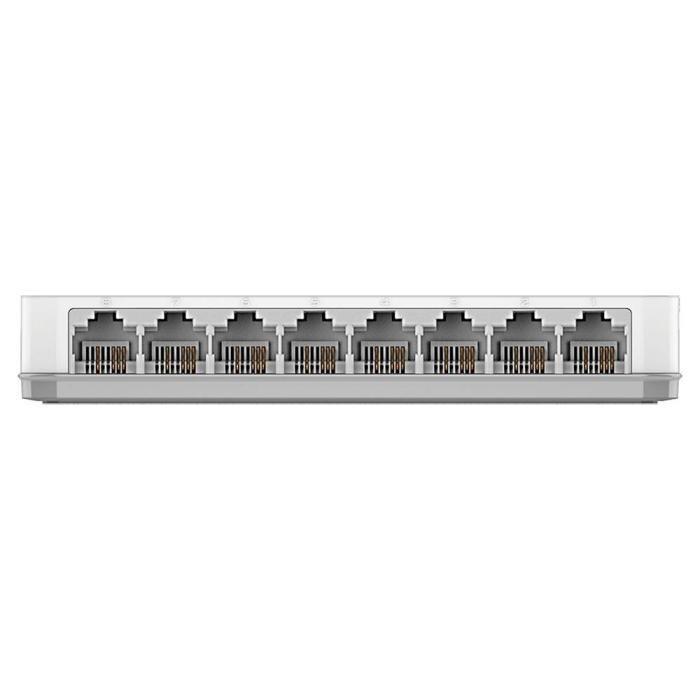

- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

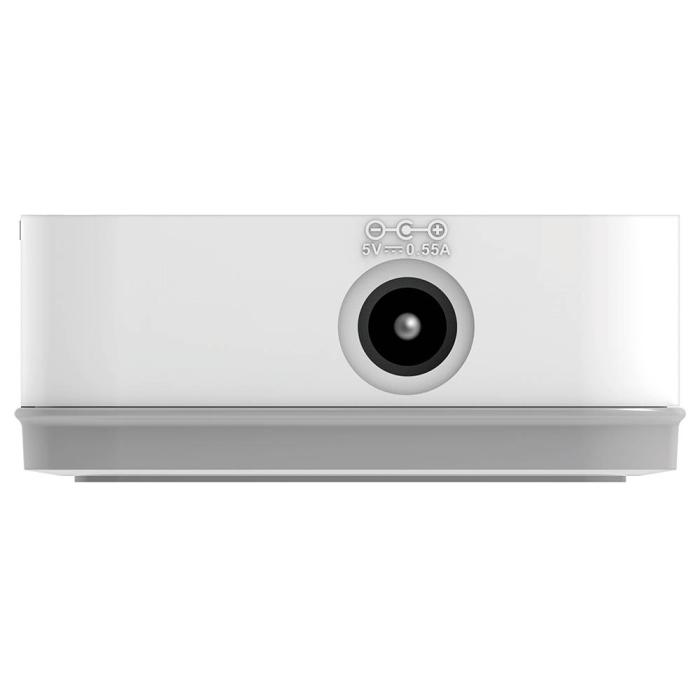

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100 Mbit/s
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 1.6 Gbit/s
- Forwarding rate: 1.19 Mpps
- MAC address table: 2000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (10 Mbps): 14880 pps
- Packet buffer memory: 0.093 MB
Design
- Rack mounting: No
- Stackable: No
- Form factor: Desktop
- Product colour: White
- LED indicators: Activity, Link, Power, Speed
Performance
- Fanless: Yes
- Mean time between failures (MTBF): 1579582 h
Power
- Power source: DC
- DC input voltage: 5 V
- Input current: 0.55 A
- Power consumption (max): 1.55 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 0.691 BTU/h
Weight & dimensions
- Width: 131 mm
- Depth: 54 mm
- Height: 21 mm
- Weight: 74.8 g
