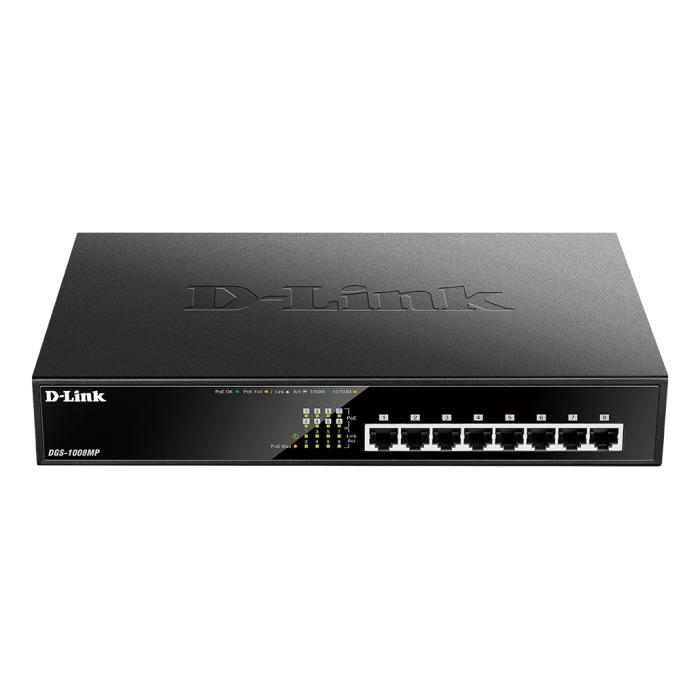

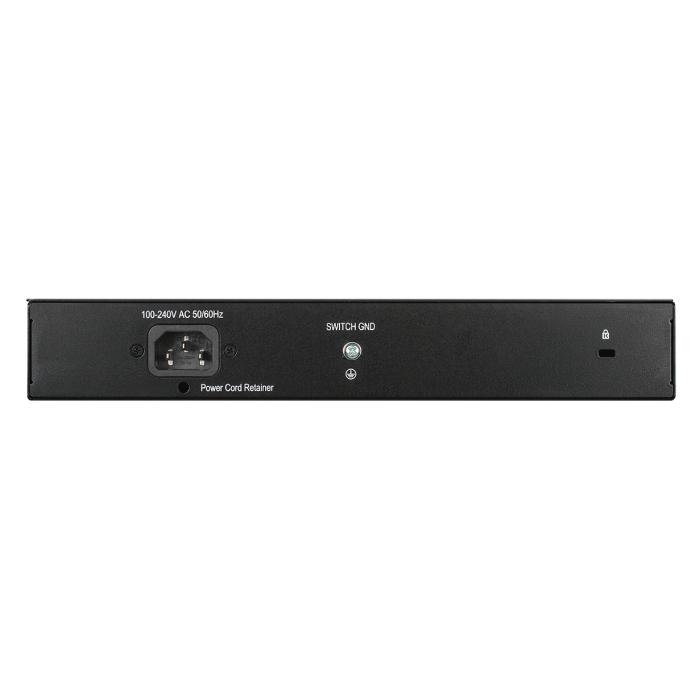

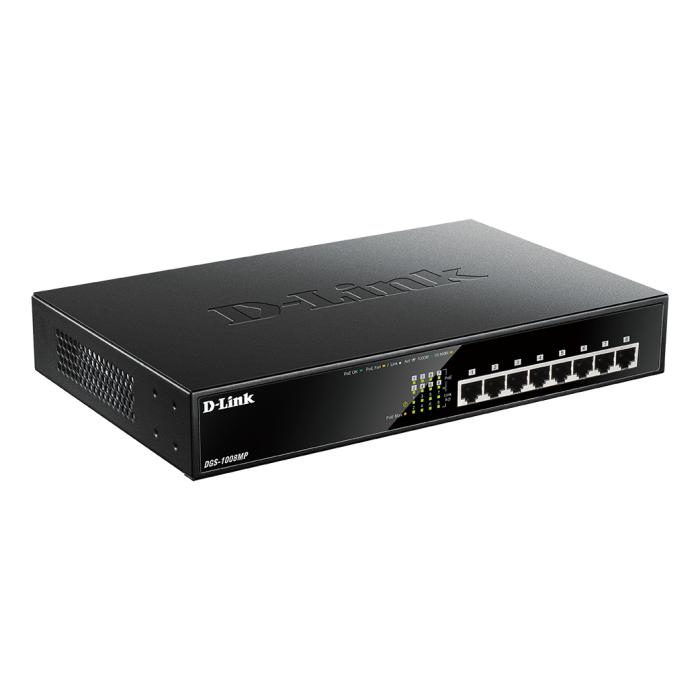

D-Link 8-Port Desktop Gigabit PoE+ Switch

$110.45
$110.45 without VAT

More info

Brand: D-LINK
SKU: 76012 PRC: 97707 EAN: 790069420337 PN: DGS-1008MP

Description

D-Link 8-Port Desktop Gigabit PoE+ Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting, 1U

Specifications

Management features

  • Switch type: Unmanaged

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

  • Networking standards: IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes

Data transmission

  • Switching capacity: 16 Gbit/s
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Packet forwarding rate (1 Gbps): 14880 pps
  • Packet forwarding rate (100 Mbps): 148800 pps
  • Packet forwarding rate (10 Mbps): 1488000 pps
  • Packet buffer memory: 0.192 MB

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes

Power

  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (typical): 13.5 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Total Power over Ethernet (PoE) budget: 140 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -10 - 70 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

  • Width: 280 mm
  • Depth: 180 mm
  • Height: 44 mm
  • Weight: 1.84 kg

Packaging data

  • Package width: 262 mm
  • Package depth: 391 mm
  • Package height: 102 mm
  • Package weight: 2.85 kg

Technical details

  • Shipping (inner) case height: 28.5 cm
  • Shipping (inner) case width: 40.6 cm
  • Shipping (inner) case length: 54.5 cm
  • Shipping (inner) case net weight: 14.2 kg
  • Products per shipping (inner) case: 5 pc(s)
  • Pallet gross weight (air): 563.8 kg
  • Master (outer) cases per pallet (air): 36 pc(s)
  • Products per pallet (air): 180 pc(s)
  • Pallet gross length: 110 cm
  • Pallet gross width: 120 cm
  • Pallet height (air): 193.5 cm
  • Pallet gross weight (sea): 563.8 kg
  • Master (outer) cases per pallet (sea): 36 pc(s)
  • Products per pallet (sea): 180 pc(s)
  • Pallet height (sea): 193.5 cm
  • Shipping (inner) case gross weight: 15.3 kg

Logistics data

  • Harmonized System (HS) code: 85176990
