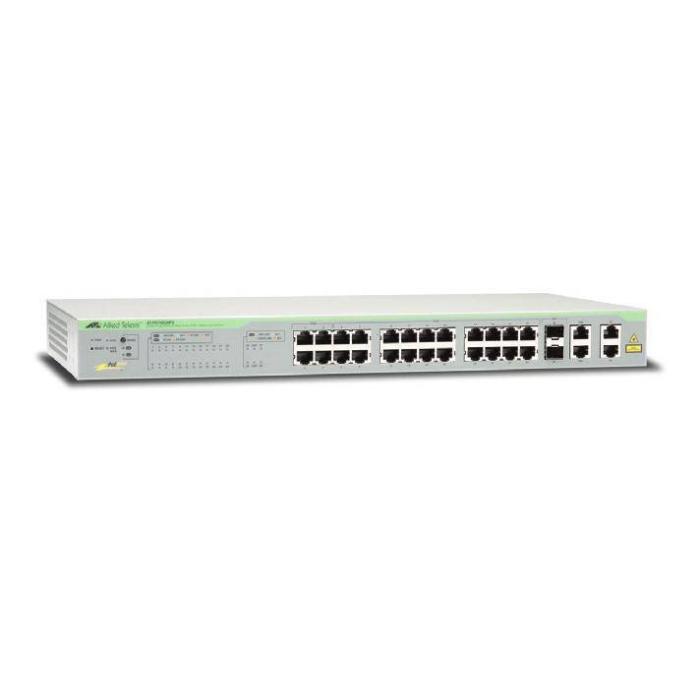

Name: Allied Telesis AT-FS750/28PS-50 Managed Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey
Brand: ALLIED TELESIS
Price: 524.65 USD
Availability: InStock

Allied Telesis AT-FS750/28PS-50 Managed Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

$524.65

$524.65 without VAT

Amount

Brand: ALLIED TELESIS

SKU: 77612 PRC: 139641 EAN: 767035203997 PN: 990-004645-50

Description

Allied Telesis AT-FS750/28PS-50, Managed, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting, 1U

Specifications

Management features

Switch type: Managed
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes
MIB support: RFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 2
Combo SFP ports quantity: 2

Network

Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 80
10G support: No
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
VLAN support: Yes
Virtual LAN features: Tagged VLAN, Port-based VLAN
Number of VLANs: 256

Data transmission

Switching capacity: 12.8 Gbit/s
Throughput: 9.5 Mpps
MAC address table: 8000 entries
Number of queues: 4
Jumbo frames support: Yes
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
MAC address filtering: Yes
Authentication: MAC-based authentication

Multicast features

Multicast support: Yes
Number of multicast groups filtered: 256

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Grey

Power

Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 241 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 24
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 193 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 5 - 90 °C
Operating relative humidity (H-H): -25 - 70%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 410 mm
Depth: 210 mm
Height: 44 mm
Weight: 5 kg

Packaging content

Cables included: AC

Logistics data

Harmonized System (HS) code: 85176990
