Description

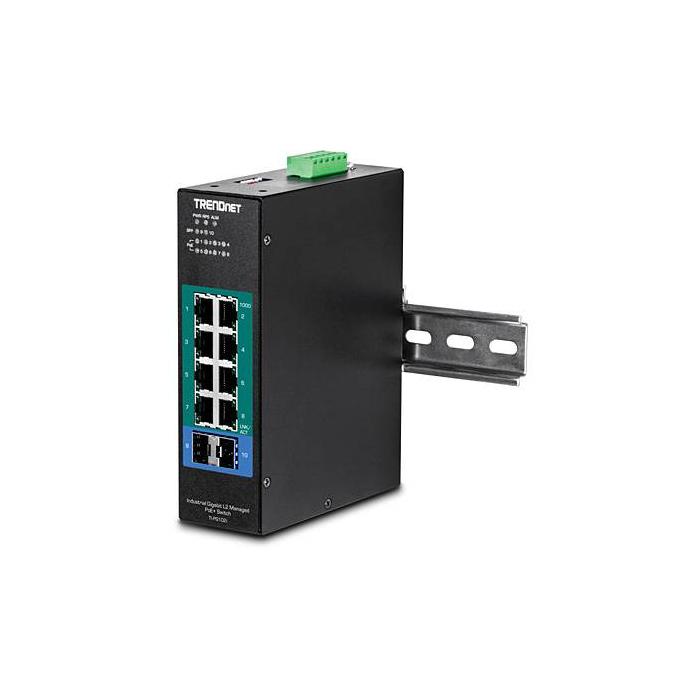

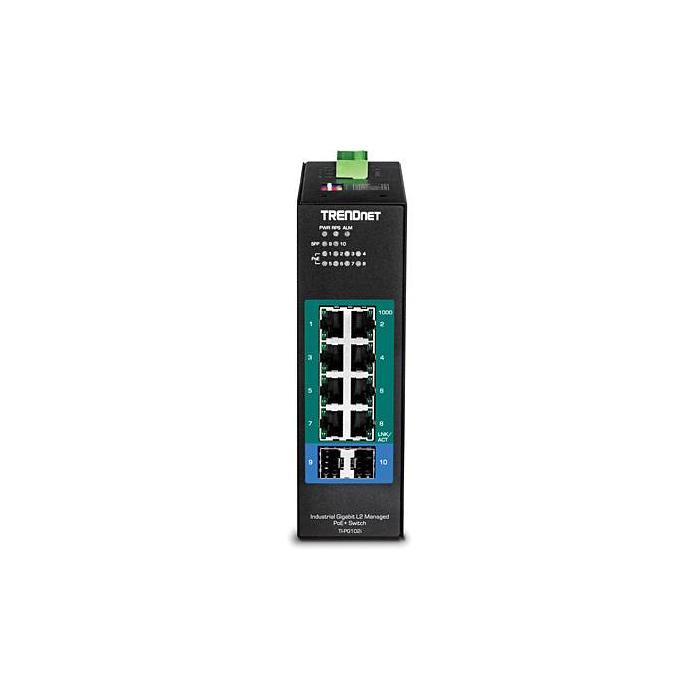

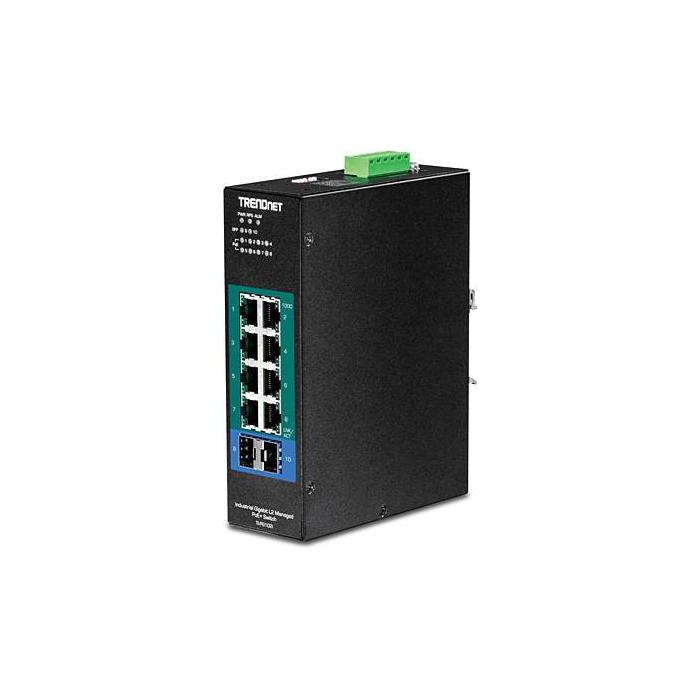

The managed L2 switch Trendnet TI-PG102I, in black, offers 8 Gigabit Ethernet ports (10/100/1000) with Power over Ethernet (PoE) support and 2 SFP slots for fibre links. Its web-based management, along with support for VLANs (up to 256), QoS, port mirroring and storm control, enables detailed network control. ARP inspection and the system event log facilitate monitoring and security, while the spanning tree protocol and link aggregation ensure stability and redundancy. With support for MIB II, MIB RFC 1493 and RMON, this TRENDNET device is designed to manage traffic efficiently in small or medium-sized business environments.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- System event log: Yes
- MIB support: MIB II RFC 1213, MIB RFC 1493, RMON (1,2,3,9) RFC 2819 RFC 1757
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 80
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- MAC address auto-learning supported: Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN, MAC address-based VLAN
- Number of VLANs: 256
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.88 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 128 MB
Security
- DHCP features: DHCP server, DHCP relay
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: SNMP, SNMPv3, SSH
- Loop protection: Yes
- BPDU filtering/protection: Yes
Multicast features
- Multicast support: Yes
- Number of multicast groups filtered: 256
Design
- Product colour: Black
- Housing material: Metal
- Reset button: Yes
- LED indicators: Yes
- International Protection (IP) code: IP30

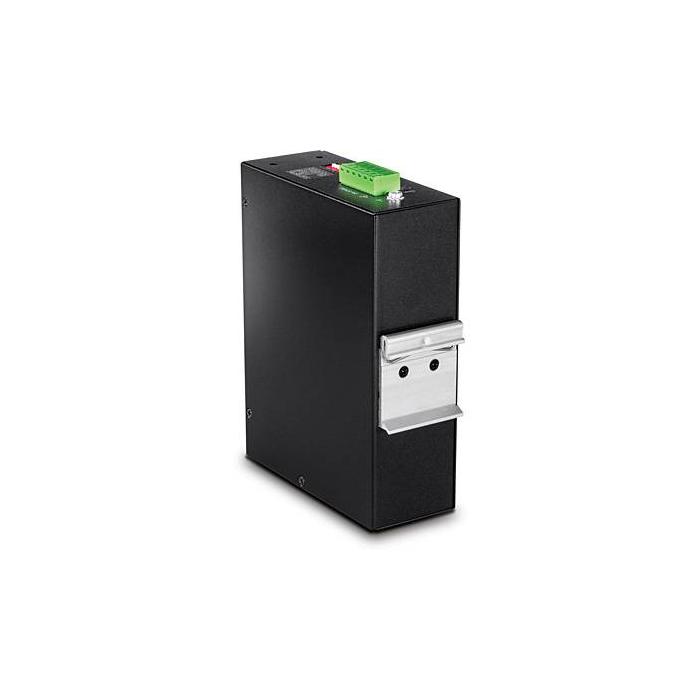

- DIN rail mounting: Yes
Performance
- Firmware upgradeable: Yes
- Mean time between failures (MTBF): 562234 h
Power

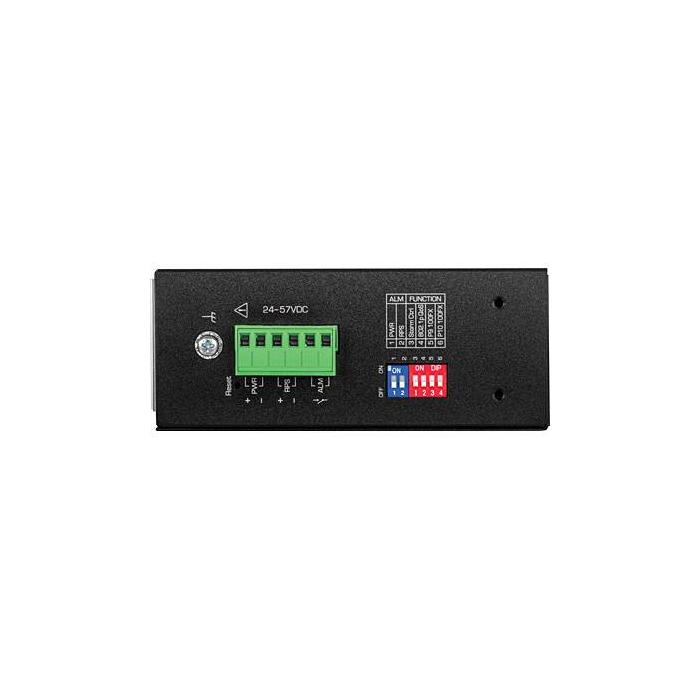

- DC input voltage: 24 - 57 V
- Power consumption (max): 253 W
- Surge protection: Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 160 mm
- Depth: 120 mm
- Height: 50 mm
- Weight: 930 g
Packaging content
- Quick start guide: Yes
Packaging data
- Terminal block included: Yes
- DIN rail included: Yes
Certificates
- Certification: CE, FCC, (IEC 60068-2-27), (IEC 60068-2-32), (IEC 60068-2-6)
Logistics data
- Harmonized System (HS) code: 85176990
