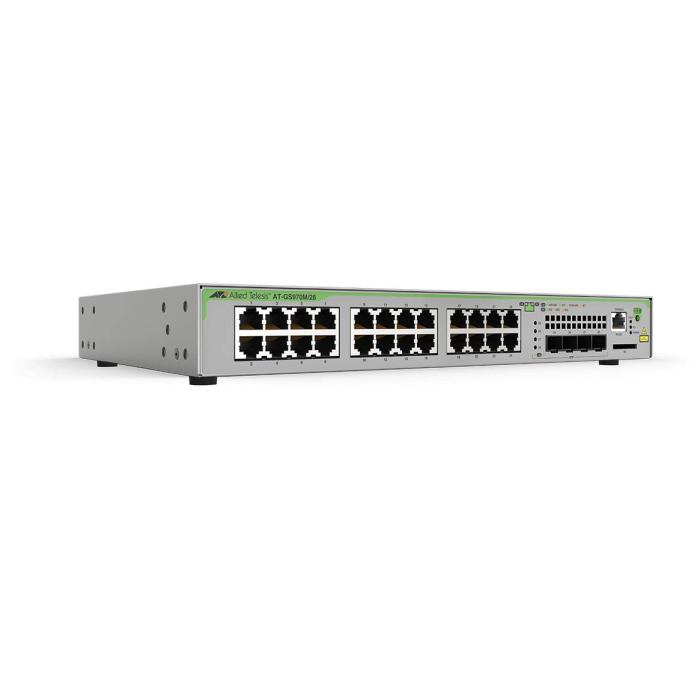

Name: Allied Telesis GS970M Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Brand: ALLIED TELESIS
Price: 764.6 USD
Availability: InStock

Allied Telesis GS970M Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

$764.60

$764.60 without VAT

Allied Telesis GS970M Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey. More info

Amount

Brand: ALLIED TELESIS

SKU: 80350 PRC: 201268 EAN: 767035211329 PN: 990-005793-50

Description

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4
Console port: RJ-45

Network

Networking standards: IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3
10G support: No
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs: 2048

Data transmission

Switching capacity: 56 Gbit/s
Throughput: 41.7 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 8.6 µs
Latency (1 Gbps): 4.3 µs
Jumbo frames support: Yes
Jumbo frames: 10000
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP server, DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256
MAC address filtering: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
Authentication: MAC-based authentication, Web-based authentication

Multicast features

Multicast support: Yes

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Grey
LED indicators: Yes

Performance

Memory type: DDR-SDRAM
Internal memory: 256 MB
Flash memory: 64 MB
Noise level: 42 dB

Power

AC input frequency: 50 - 60 Hz
Power consumption (max): 520 W
AC input voltage: 100 - 240 V

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 24
Power over Ethernet plus (PoE+) ports quantity: 12
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 4000 m
Heat dissipation: 303 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 290 mm
Height: 44 mm
Weight: 4.7 kg

Packaging data

Package width: 530 mm
Package depth: 430 mm
Package height: 150 mm
Package weight: 6.35 kg

Logistics data

Harmonized System (HS) code: 85176990
