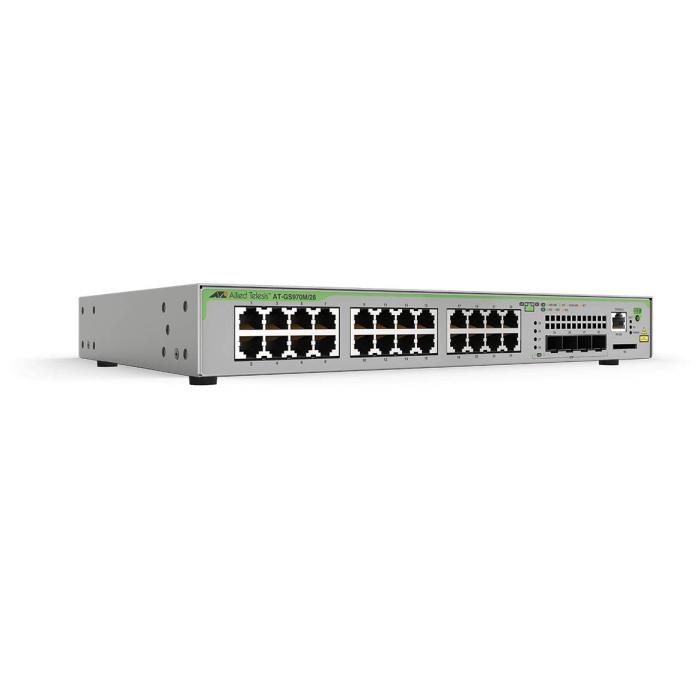

Name: Allied Telesis GS970M Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
Brand: ALLIED TELESIS
Availability: OutOfStock

Allied Telesis GS970M Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

Not avaliable

Allied Telesis GS970M Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey. More info

Amount

Brand: ALLIED TELESIS

SKU: 114424 PRC: 203951 EAN: 767035211374 PN: 990-005794-50

Description

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4
Console port: RJ-45

Network

Spanning tree protocol: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs: 4094
Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab
10G support: No
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes

Data transmission

Switching capacity: 56 Gbit/s
Throughput: 41.7 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 8.6 µs
Latency (1 Gbps): 4.3 µs
Jumbo frames support: Yes
Jumbo frames: 10000
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP server, DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256
MAC address filtering: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
Authentication: MAC-based authentication, Web-based authentication

Multicast features

Multicast support: Yes

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Grey
LED indicators: Yes

Performance

Memory type: DDR-SDRAM
Internal memory: 512 MB
Flash memory: 64 MB
Noise level: 34 dB

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 26 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 4000 m
Heat dissipation: 89 BTU/h

Weight & dimensions

Width: 341 mm
Depth: 231 mm
Height: 44 mm
Weight: 2.4 kg

Packaging data

Package width: 430 mm
Package depth: 360 mm
Package height: 150 mm
Package weight: 4 kg

Logistics data

Harmonized System (HS) code: 85176990
