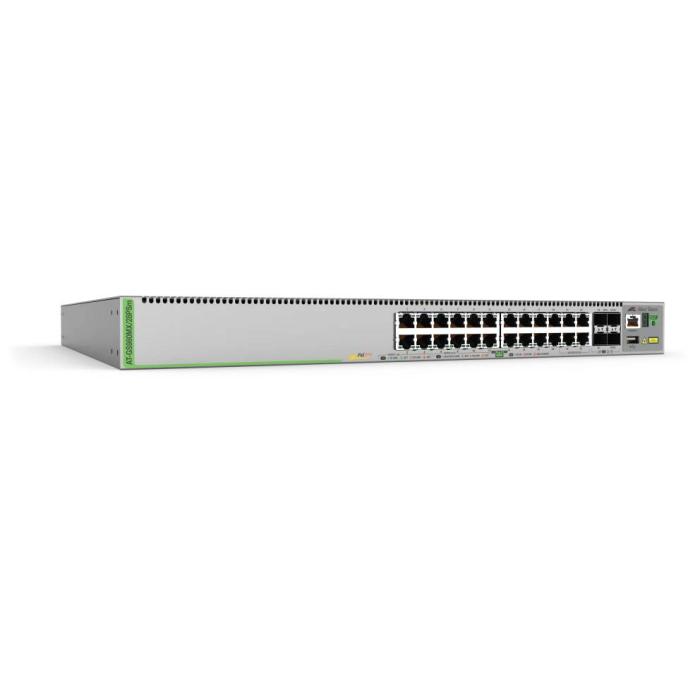

Name: Allied Telesis AT-GS980MX/28PSM-50 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Brand: ALLIED TELESIS
Price: 1753.91 USD
Availability: InStock

Allied Telesis AT-GS980MX/28PSM-50 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

$1,753.91

$1,753.91 without VAT

Allied Telesis AT-GS980MX/28PSM-50 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey. More info

Amount

Brand: ALLIED TELESIS

SKU: 102923 PRC: 462109 EAN: 767035212937 PN: AT-GS980MX/28PSM-50

Description

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Traffic classification: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 20
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
Installed SFP+ modules quantity: 4
Console port: USB

Network

Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3a
10G support: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring: Yes
Link aggregation: Yes
Spanning tree protocol: Yes
Ethernet LAN data rates: 10,100,1000,2500,5000 Mbit/s
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4094

Data transmission

Switching capacity: 160 Gbit/s
Forwarding rate: 119 Mpps
MAC address table: 16000 entries
Number of queues: 8
Static route: Yes
Jumbo frames support: Yes
Jumbo frames: 10000
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP Option 82, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: 3DES, AES, MD5, SHA-1, SHA-2, SHA-256, SHA-384, SHA-512, SSH, SSH-2, SSL/TLS
MAC address filtering: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
Authentication: MAC-based authentication, Port-based authentication, Web-based authentication
Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes

Protocols

Management protocols: SNMPv1, v2c, v3
Routing protocols: RIP, RIP-2, RIPng

Design

Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Grey
LED indicators: Yes

Performance

Physical stacking (units): 2
Memory type: DDR3-SDRAM
Internal memory: 1000 MB
Flash memory: 256 MB
Noise level: 42 dB

Power

Power consumption (typical): 70 W
Power consumption (max): 510 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 1741 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 421 mm
Height: 44 mm
Weight: 5.6 kg

Packaging data

Package width: 563 mm
Package depth: 534 mm
Package height: 128 mm
Package weight: 7.6 kg

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: RoHS, cTUVus
Certification: EN55024 FCC Class A, EN55032 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, RCM EN55024, EN61000-3-levels 2 UL60950-1, CSA-C22
