Description

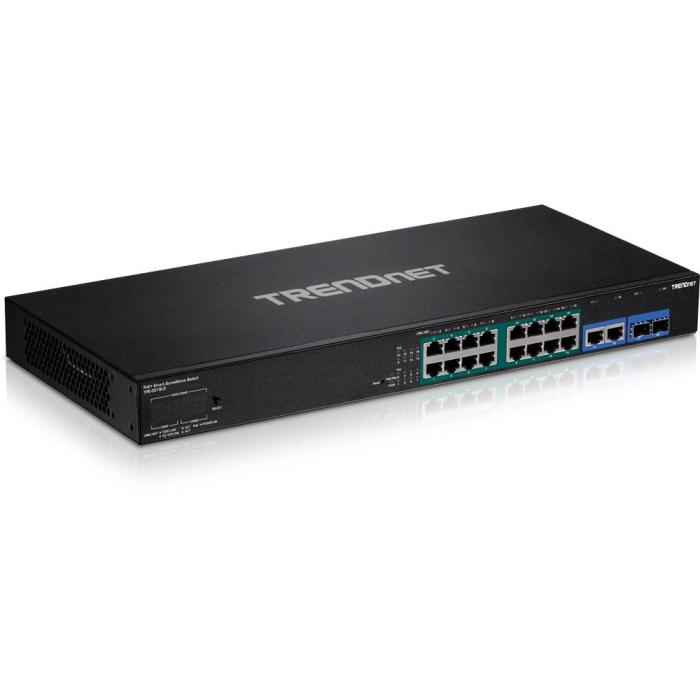

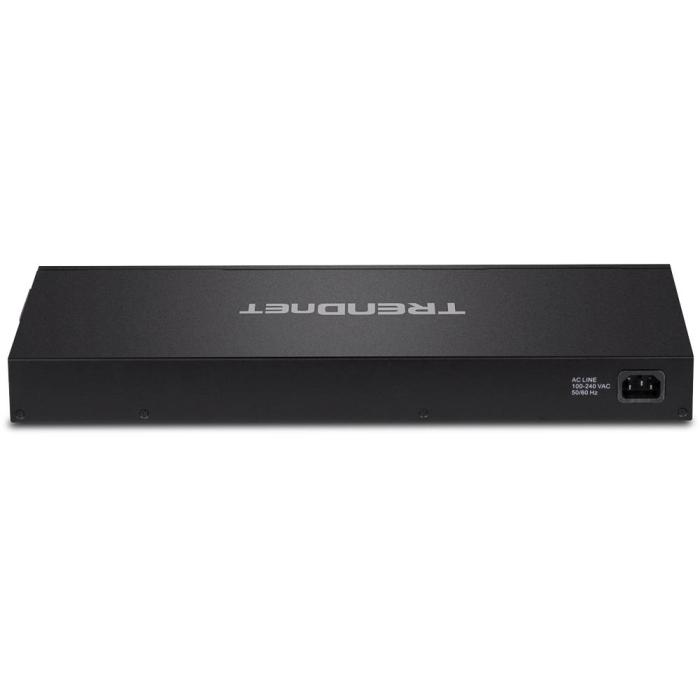

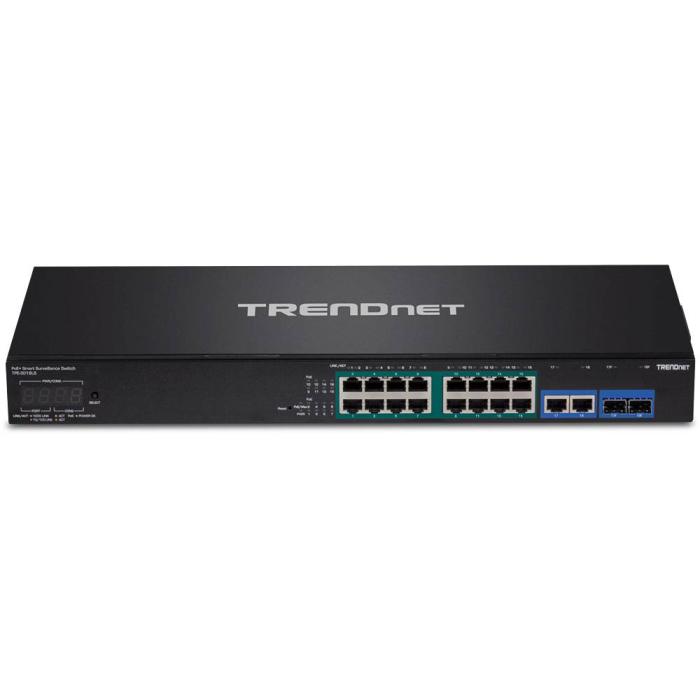

Trendnet TPE-3018LS managed network switch with 18 RJ-45 Gigabit Ethernet ports and 2 SFP ports for fibre optic, in 1U format and black colour, offers web-based management and support for Quality of Service (QoS). This managed model integrates advanced features such as MAC address-based VLAN, tagged and voice VLAN, storm control and full duplex, with a switching capacity of 36 Gbit/s and a MAC address table for 8000 entries. Its store-and-forward architecture and head-of-line blocking optimise data transmission on your network, while support for RMON MIB, IPv4 and SNMP facilitates remote monitoring and management. It also includes auto-learning of MAC addresses and VLAN support, ideal for efficiently segmenting your infrastructure.
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- MIB support: RMON MIB RFC 1271, IPV4 MIB RFC 1213, SNMP MIB RFC 3415
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 18
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Fiber ports quantity: 2
- Fiber optic connector: SFP
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3
- 10G support: No
- Full duplex: Yes
- Broadcast storm control: Yes
- Head-of-line (HOL) blocking: Yes
- MAC address auto-learning supported: Yes
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
- Switching capacity: 36 Gbit/s
- Forwarding rate: 26.7 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10000
Security
- DHCP features: DHCP snooping
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- IGMP entries: 1000
- IP-MAC-Port binding: Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Yes
- Number of fans: 1 fan(s)
Performance
- Noise level: 60.1 dB
- Mean time between failures (MTBF): 331516 h
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 14 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+
- Power over Ethernet plus (PoE+) ports quantity: 16
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 220 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 440 mm
- Depth: 195 mm
- Height: 44.4 mm
- Weight: 2.93 kg
Packaging content
- Cables included: AC
- Quick start guide: Yes
- Rack mount kit: Yes
Certificates
- Certification: CE, FCC, ETL
Logistics data
- Harmonized System (HS) code: 85176990
