Description

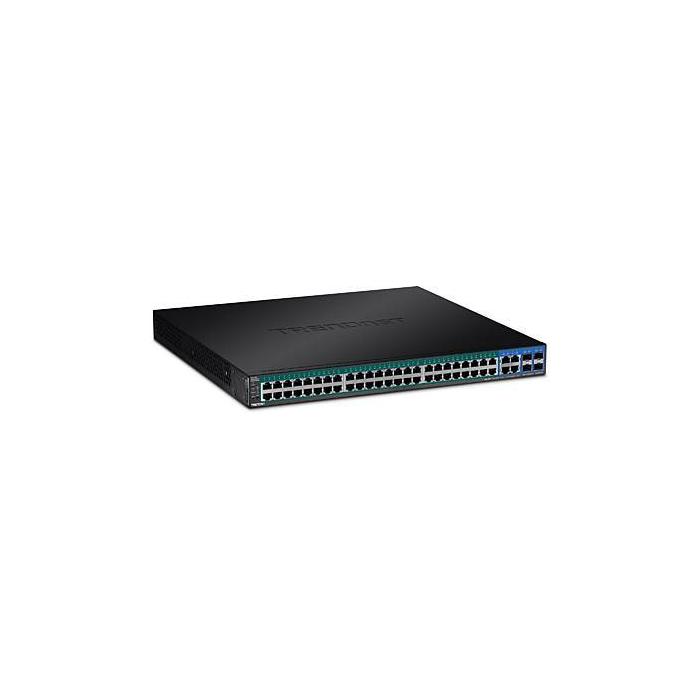

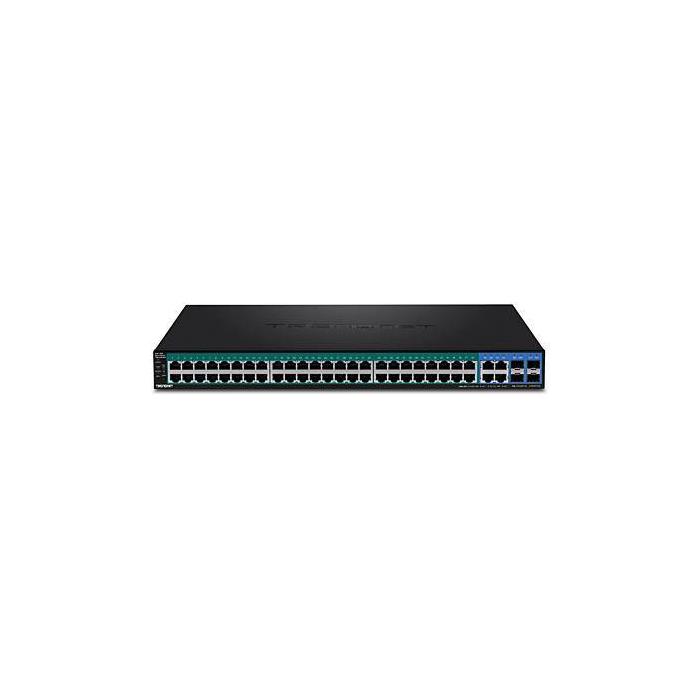

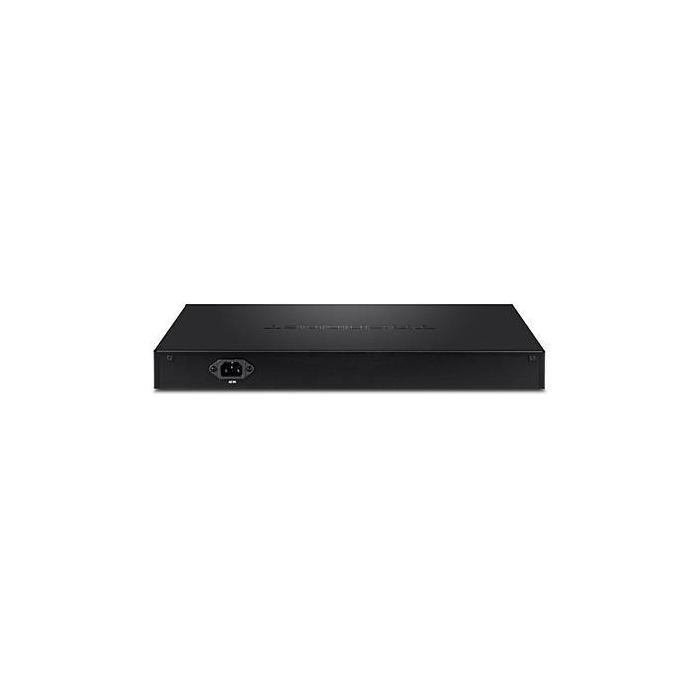

The Trendnet TPE-5240WS managed switch, in 1U format and black colour, offers 48 Gigabit Ethernet ports (10/100/1000) with PoE support and 4 combo SFP ports for fibre links. Its web-based management includes QoS, VLAN (up to 256, with Private VLAN functions), port mirroring, storm control and link aggregation, as well as support for spanning tree and HOL blocking. With a 1.5 MB packet buffer, this managed unit allows you to configure and monitor the network via MIB, ensuring efficient traffic in professional environments. Full duplex switching and storm control transmission help maintain connection stability.
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 4
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN
- Number of VLANs: 256
Data transmission
- Switching capacity: 104 Gbit/s
- Throughput: 77.4 Mpps
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 1.5 MB
Security
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS
Multicast features
- Multicast support: Yes
- Multicast MAC address table: 256 entries
Protocols
- Management protocols: HTTP/HTTPS (SSL v2/3 TLS), SNMP v1, v2c, v3, RMON v1, IPv6
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Number of fans: 3 fan(s)
Performance
- Compatible operating systems: Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003/2008 Server
- Noise level: 52.4 dB
- Maximum data transfer rate: 2000 Mbit/s
- Mean time between failures (MTBF): 239897 h
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 479 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 48
- Total Power over Ethernet (PoE) budget: 370 W
Operational conditions
- Operating temperature (T-T): -5 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 440 mm
- Depth: 430 mm
- Height: 44 mm
- Weight: 6.12 kg
Packaging content
- Cables included: AC
- Quick start guide: Yes
- Rack mount kit: Yes
Packaging data
- Resource CD: Yes
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
